The automatic waterproof seal crimping machine

The automatic waterproof seal crimping machine is a crucial piece of equipment in the electronics manufacturing industry, specifically used for wire harness processing. It performs various functions such as cutting wires, stripping insulation, crimping terminals, and inserting waterproof seals.

Typically, the automatic waterproof seal crimping machine consists of a wire feeding mechanism, cutting mechanism, stripping mechanism, crimping mechanism, waterproof seal insertion mechanism, and a control system. The process begins with the wire feeding mechanism advancing the wire to a designated position. The cutting mechanism then cuts the wire to the preset length, followed by the stripping mechanism removing the insulation from the wire end. The crimping mechanism subsequently attaches the terminal to the stripped wire, and finally, the waterproof seal insertion mechanism accurately positions and inserts the waterproof seal. The entire process is precisely controlled by the control system, with sensors monitoring the operational status of each step in real time to ensure processing accuracy and stability.

Automatic Single-head Terminal Crimping, Tin Dipping and Waterproof Plug Inserting Machine GL-02HR-C

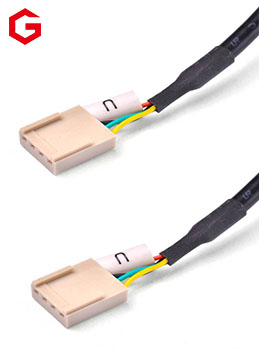

Fully Automatic Housing Insertion and Crimping Machine

Fully Automatic Double-End Terminal Crimping and Double-End Sheath Threading Machine GL-01D-HT

Single-End Waterproof Plug Threading and Single-End Plastic Housing Insertion Machine GL-1801F

Why Our Products Are Indispensable in Automotive Electronics & the Electronic Manufacturing Field

The Automatic Waterproof Insertion Crimping Machine integrates multiple functions and is compatible with various types of waterproof seals and protective sleeves.
Equipped with a vibratory bowl feeder, it can process different kinds of protective sleeves. The machine supports single or double-end waterproof seal insertion and sleeve crimping, and can be custom-modified to meet specific requirements.
Additional functions such as tinning, wire twisting, or connector housing insertion can also be incorporated.

Reduced Risk, Greater Reliability

The Automatic Waterproof Insertion Crimping Machine features a streamlined operational design:Equipped with a highly intelligent system and user-friendly touchscreen interface, it allows operators to quickly master the system after minimal training and work independently.One-touch operation further simplifies the process, significantly reducing the skill level required for personnel.

Industry Applications & Solutions

As your strategic partner, Guanju specializes in delivering innovative and customized wiring harness and cable solutions tailored to the unique requirements of your diverse application scenarios. We provide reliable, top-tier manufacturing services across multiple industries, including electronics and electrical appliances, new energy, industrial machinery, medical equipment, as well as traditional automotive and electric vehicles.

Industries & Solutions

New Energy

High Current & High Voltage

Industrial Equipment

High Precision

Medical Equipment

ISO900a & IATF16949

Vehicles

Safe and Stable

Key Features of in theautomotive electronics, field of electronic manufacturing Solutions

Easy operation, intelligent, minimal training

Waterproof seal insertion and crimping machine are designed for straightforward operation: their high level of intelligence is complemented by touch-screen interfaces, allowing operators to become proficient and work independently after minimal training. One-touch operation further simplifies the process, significantly reducing the skill level required for workers.
