1.Automatic Seal Insertion and Crimping Machine is a fully automatic device integrating multiple functions, capable of processing different types of wires and supporting customization.

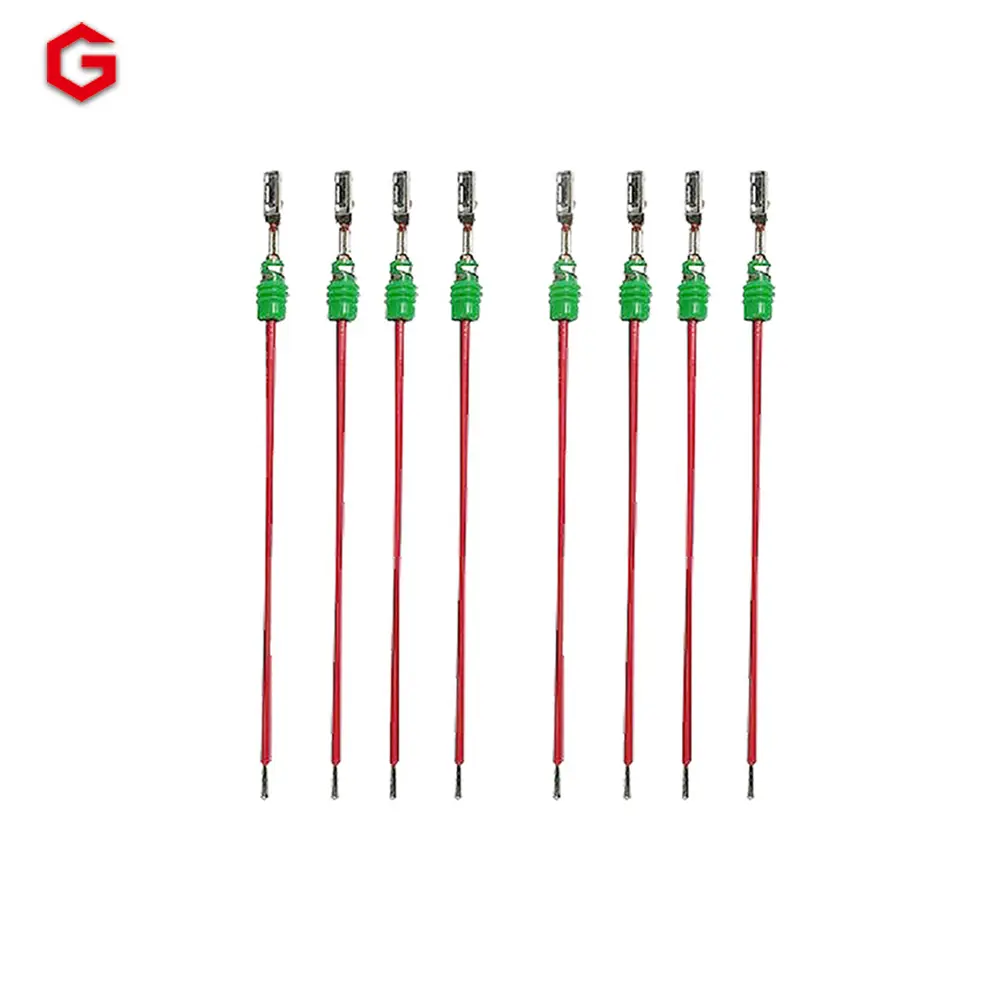

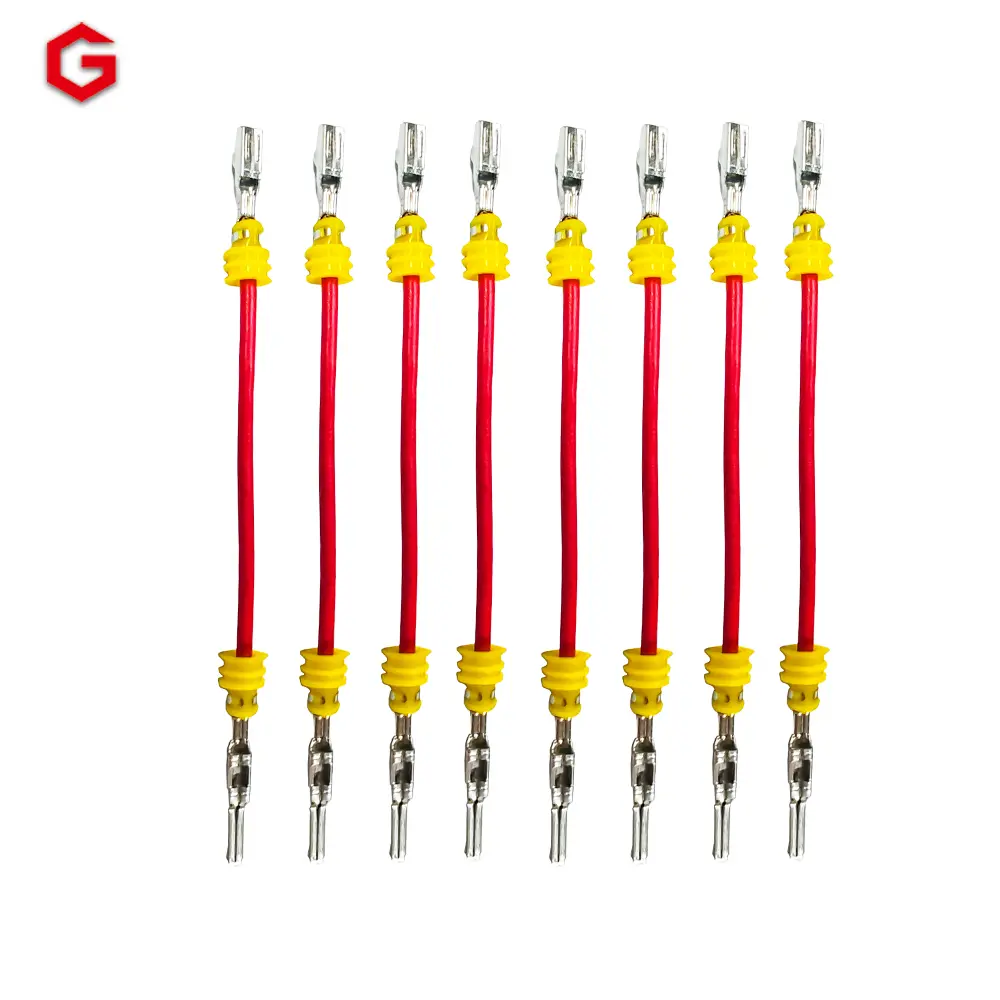

2.It is suitable for various different types of waterproof plugs. Parameters can be set according to needs, meeting diverse production requirements.

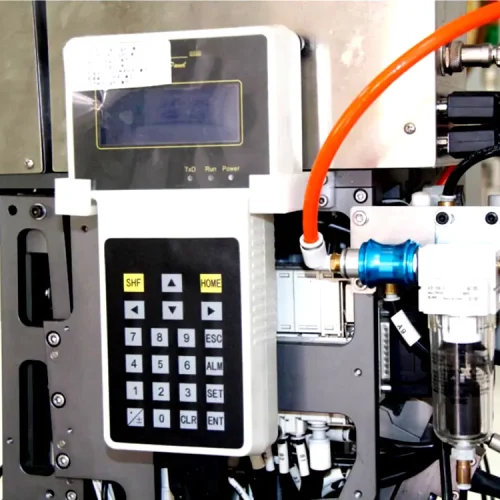

3.It has a full touch screen operation interface, and multiple values can be set. There is a fault alarm function, which can display problems in real time. Defective products are automatically sorted.
4.Adopting a modular design, it enables rapid replacement, upgrading, and maintenance. For different wire harnesses, it can operate efficiently by replacing components.
5.Automatic Seal Insertion and Crimping Machine has a compact structure and an exquisite appearance, occupying less space.
Product Function

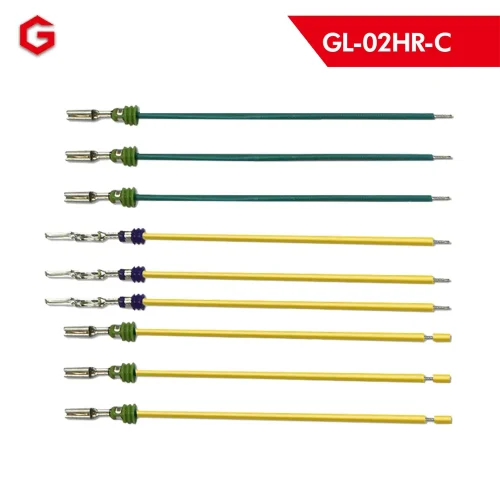

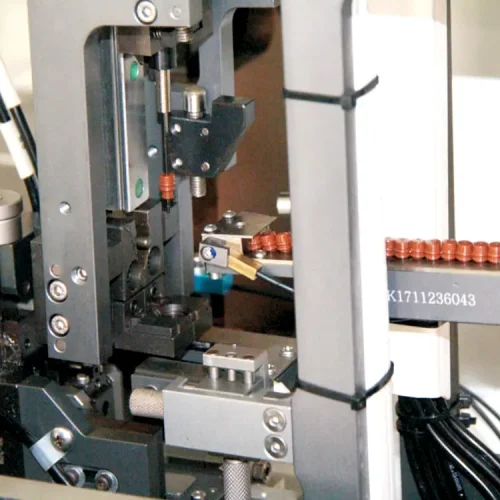

| Device Name and Model: | GL-02HR-C Automatic Single-head Terminal Crimping, Tin Dipping and Waterproof Plug Inserting Machine |
| Main Functions: | At end A, it can perform cutting, stripping, waterproof plug insertion and terminal crimping; at end B, it can conduct wire stripping, wire twisting and tin dipping. |
| Control Method: | Human-machine interface + microcomputer for machine adjustment |
| Wire Feeding System: | Computerized automatic pre-wire feeding device, suitable for both coil wires and spool wires |
| Detection Devices: | Detection of terminal crimping status, wire knotting, wire shortage, air pressure, and the presence or absence of waterproof plugs |
| Terminal Pressure Detection System: | Can be optionally installed (both domestic and imported systems are applicable) |
| Defective Product Handling: | Sorting (a cutting device can be optionally installed) |
| Terminal Crimping Capacity: | 2T Ultra-silent Variable Frequency Terminal Machine |
Product parameter
| Power Supply: | Single-phase, 220V, 50/60HZ |
| Processing Length： | 40 – 600mm (Customization is available for lengths exceeding 600mm) |
| Wire Processing Range： | AWG#30 – AWG#18, suitable for wires of various specifications and 4 colors |
| Processable Terminal Spacing： | 1.25 – 3.96mm |
| Production Capacity： | Terminal crimping at end A and terminal crimping and plastic housing insertion at end B: When the processing wire length is 100mm, 1,400 – 1,600 pieces per hour. |
| Wire stripping at end A and waterproof plug threading, terminal crimping and plastic housing insertion at end B: When the processing wire length is 100mm, 1,000 – 1,200 pieces per hour. | |
| Stripping Length： | End A: 1 – 12.5mm, End B: 1 – 7mm |
| Cutting Precision： | ±（0.2%*L + 1）mm |
| Air Pressure: | 0.5-0.7Mpa (5-7KG/m³) |
| External Dimensions: | 2700*2000*2100mm |
| Weight： | Approximately 750KG ± 15KG. The weight of the supporting wire pay-off rack is approximately 150KG. |
