Product Video
Product Introduction

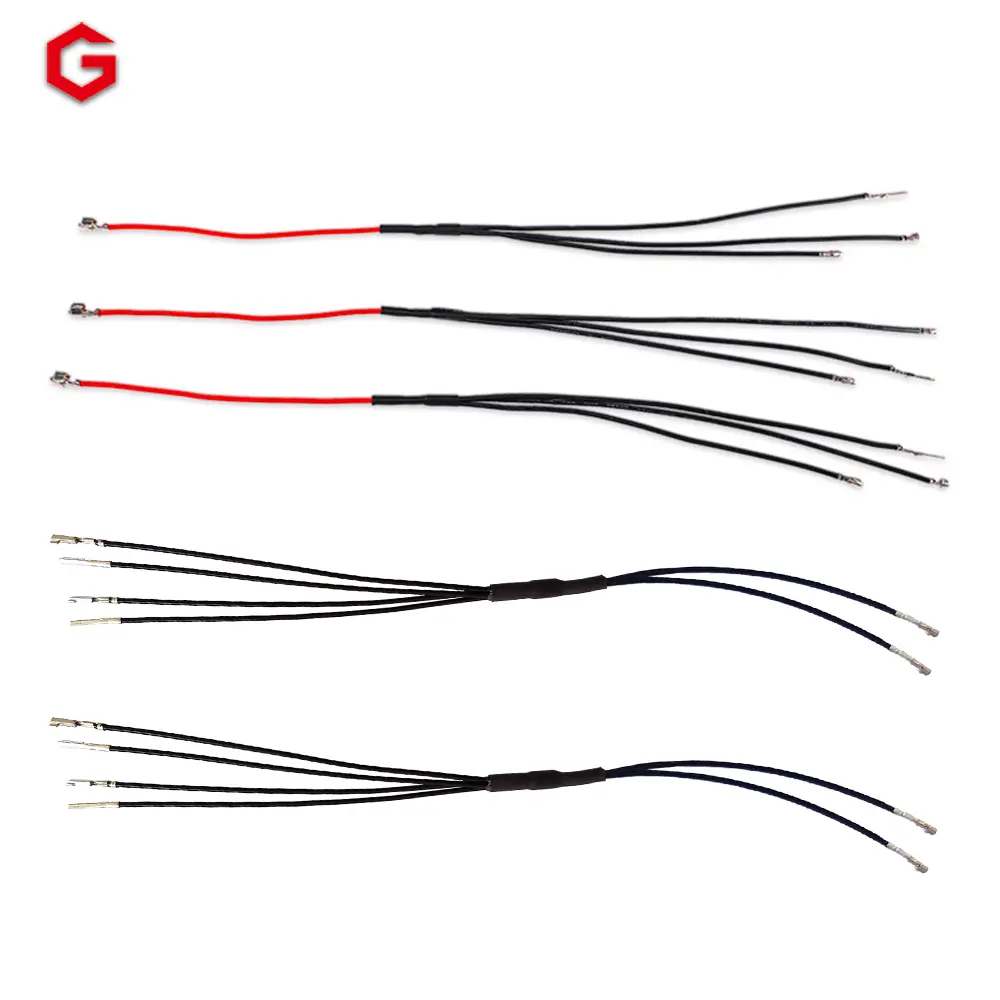

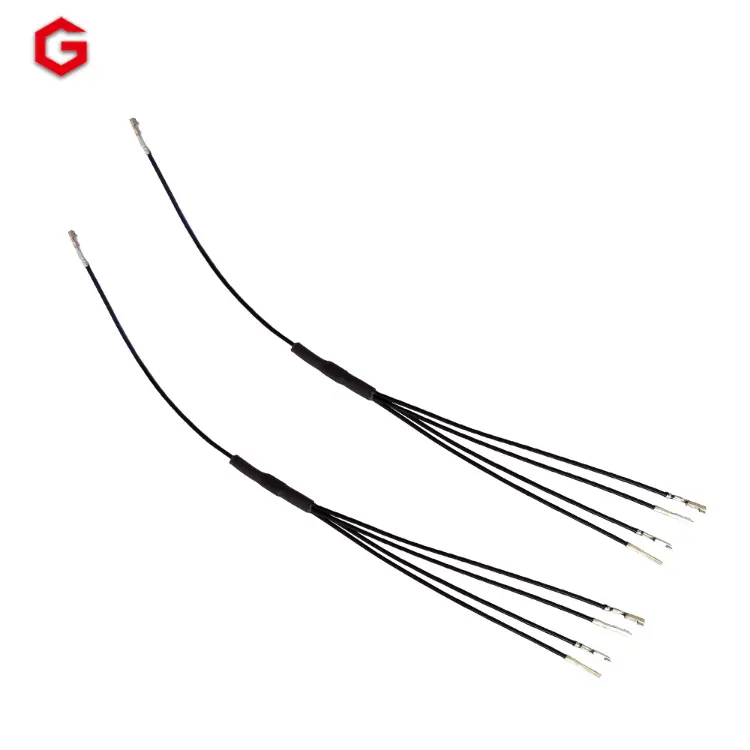

1.Multi-wire Terminal Crimping Machine – Dual Wires Combined Crimping Machine. is a full-automatic device integrating multiple functions, which can conduct combined crimping of two, three or four wires at a time. At the combined crimping end, different terminal crimping or tin dipping functions can be selected according to the program settings.

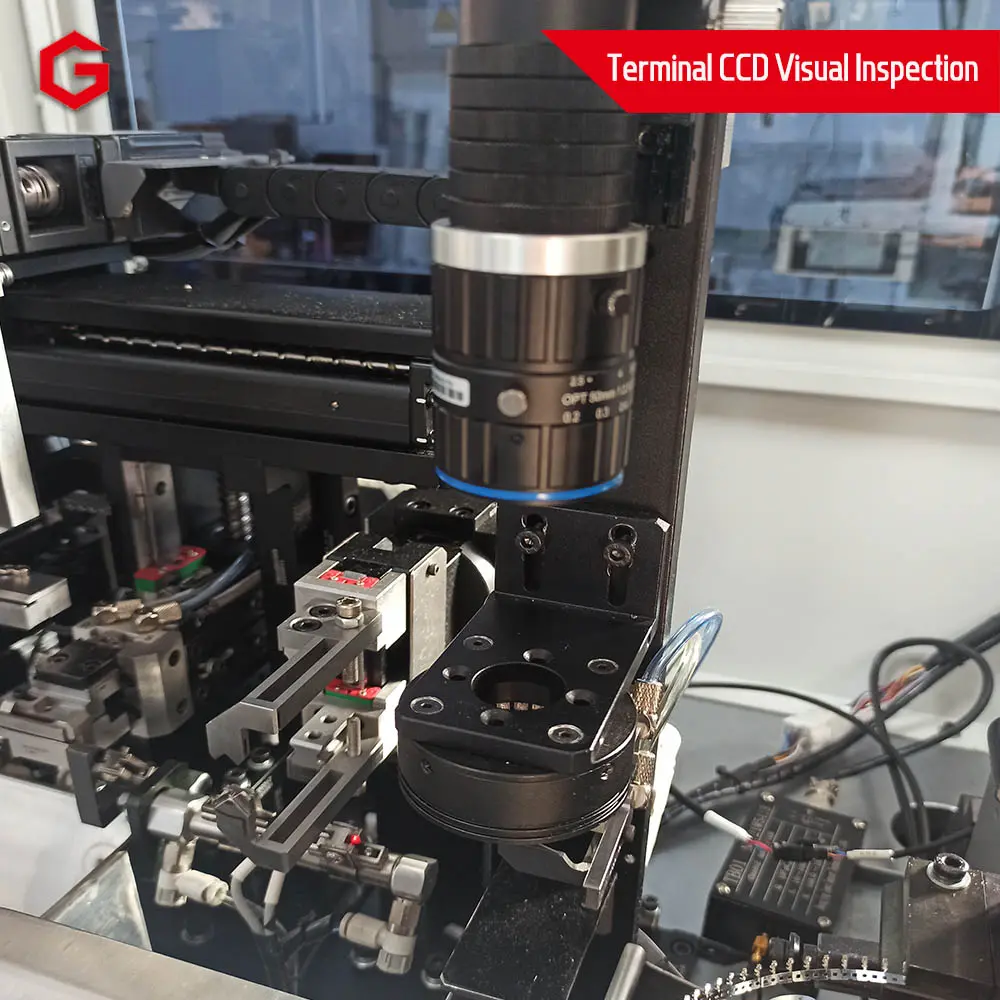

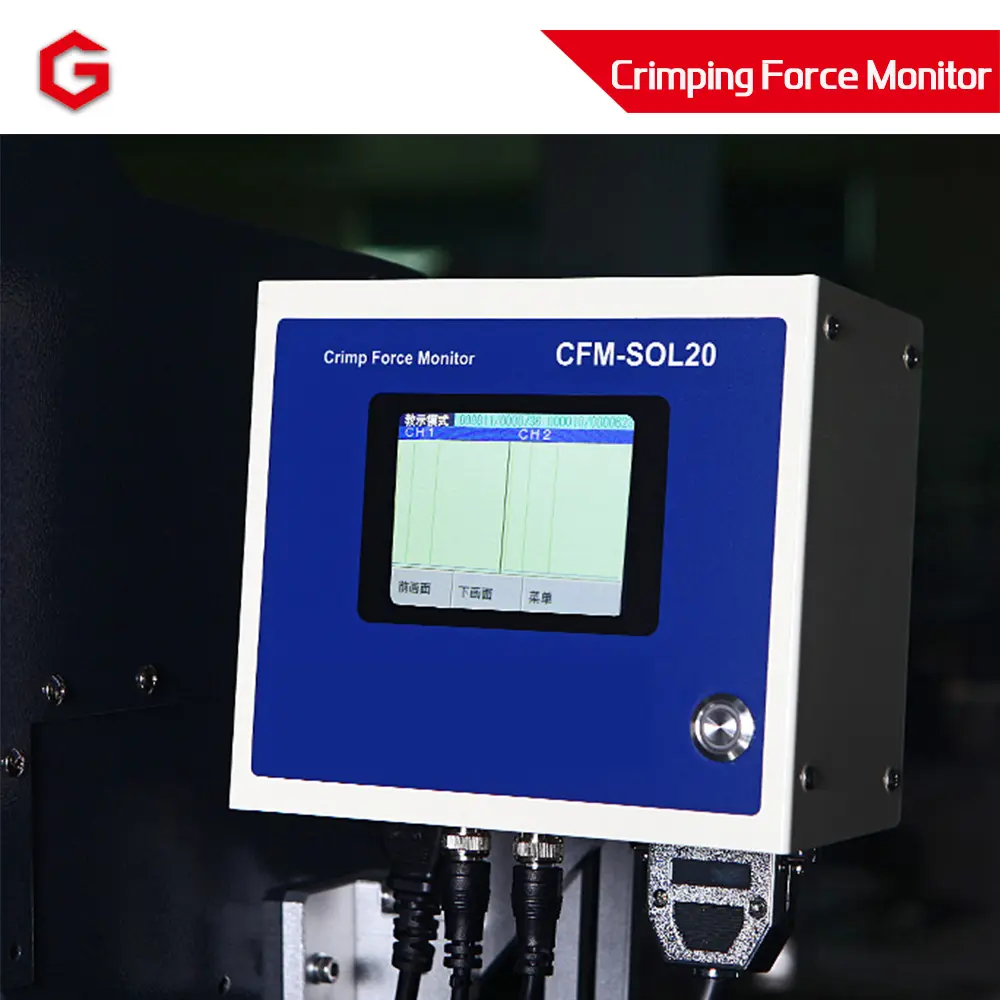

2.It is equipped with an industrial control computer, and the operation data can be retained for traceability. With multiple detection functions, defective products can be automatically sorted, and there is a fault alarm function that can display problems in real time.
3.With a compact structural design, it incorporates a number of optimized structures, occupying less space and achieving higher operating speed.
4.It adopts a modular design. Each functional module can be freely turned on or off in the program, enabling quick replacement, upgrading and maintenance. For different wire harnesses, it can operate efficiently by replacing components.

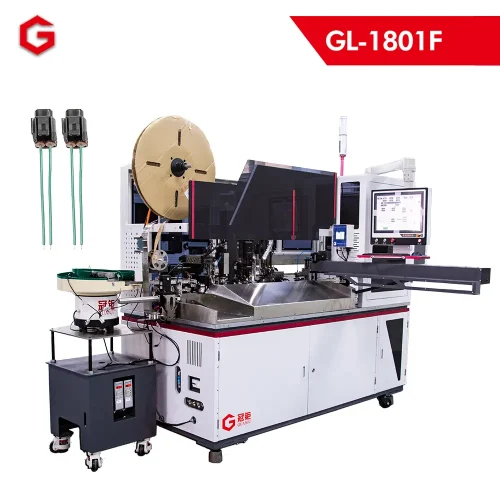

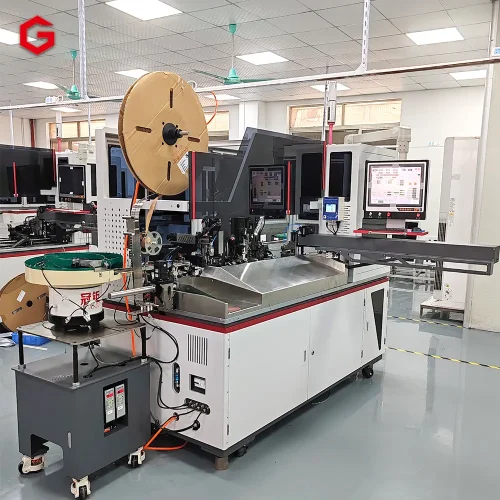

Product Function
| Power Supply: | Single-phase, 220V, 50/60HZ |
| Processing Length： | 40 – 600mm (Customization is available for lengths exceeding 600mm) |
| Wire Processing Range： | AWG#30 – AWG#18, suitable for wires of various specifications and 4 colors |
| Processable Terminal Spacing： | 1.25 – 3.96mm |
| Production Capacity： | Terminal crimping at end A and terminal crimping and plastic housing insertion at end B: When the processing wire length is 100mm, 1,400 – 1,600 pieces per hour. |
| Wire stripping at end A and waterproof plug threading, terminal crimping and plastic housing insertion at end B: When the processing wire length is 100mm, 1,000 – 1,200 pieces per hour. | |
| Stripping Length： | End A: 1 – 12.5mm, End B: 1 – 7mm |
| Cutting Precision： | ±（0.2%*L + 1）mm |
| Air Pressure: | 0.5-0.7Mpa (5-7KG/m³) |
| External Dimensions: | 2700*2000*2100mm |

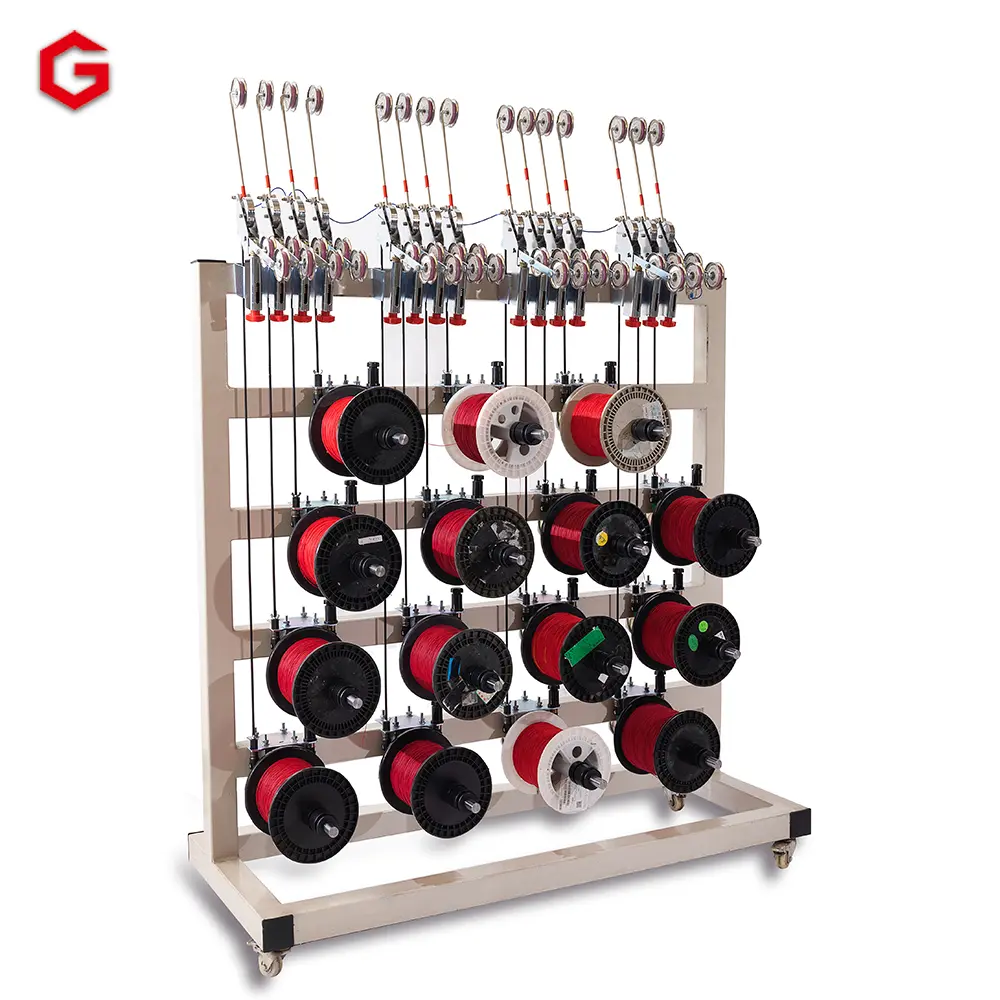

| Weight： | Approximately 750KG ± 15KG. The weight of the supporting wire pay-off rack is approximately 150KG. |
Product parameter
| Power Supply: | Single-phase, 220V, 50/60HZ |
| Processing Length: | Combined crimping end: 60 – 600mm；Total product length: 120 – 9999mm (A conveyor belt is required when processing long wires) |
| Range of Wire Materials for Processing: | AWG#28 – AWG#18, suitable for various specifications and different colored wires |
| Production Capacity: | When L = 300mm, 500 – 800 wires per hour (For long wire processing, the actual production capacity shall prevail based on the measured value) |
| Peeling Length: | End A: 1.0 – 7.0mm, End B: 1.0 – 8.5mm |
| Cutting Accuracy: | ±（0.2%L+1）mm |
| Air Pressure: | 0.5 – 0.7Mpa (5 – 7KG/m³) |
| Overall Dimensions: | 3000*2200*2250mm (Excluding the wire feeding rack) |
| Weight: | Approximately 750KG±15KG |
