1.Fully Automatic Single-head Wire Twisting and Tinning Machine,A fully automatic device integrating multiple functions. It is suitable for extremely thin wires and high-precision wires, and customization is supported.
2. Controlled by a single-chip microcomputer, multiple values can be set. The operation data can be retained and traced. It has a fault alarm function, which can display problems in real time. Defective products are automatically sorted.
3. Adopting a modular design to achieve rapid replacement, upgrading, and maintenance. For different wire harnesses, it can operate efficiently by replacing components.
4. Automatic Crimping Machine With a compact structure and an exquisite appearance, it takes up less space.
Product Function

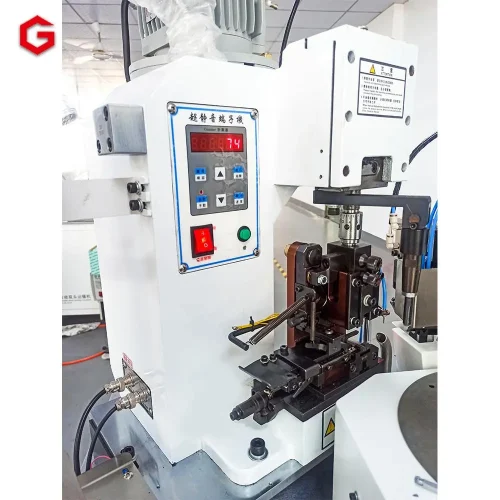

| Equipment Name and Model: | GL-8502 Fully Automatic Single-head Terminal Crimping Machine |
| Main Functions: | Wire cutting, single – end stripping, double – end stripping, single – end crimping, single – end wire twisting |
| Control Method: | Human – machine interface + microcomputer machine adjustment |
| Detection Devices: | Detection of the presence of terminals, wire knotting, wire shortage alarm, air pressure detection |
| Terminal Pressure Detection System: | Optional installation (Applicable to both domestic and imported systems) |

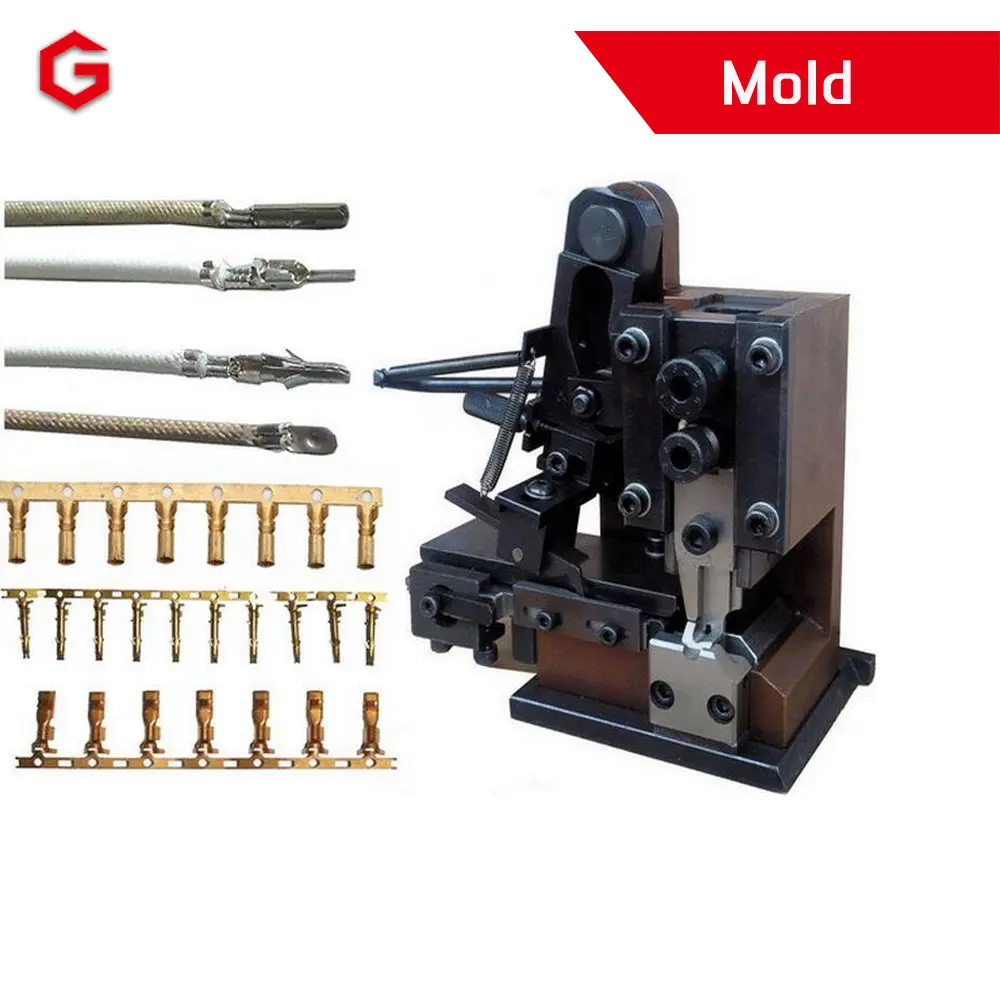

| Compatible Molds: | OTP standard horizontal molds, vertical molds, and flag – type molds. European and Korean style molds can be customized. |
| Terminal Crimping Capacity: | 2T/3T Ultra – quiet Frequency Conversion Terminal Machine |
Product parameter

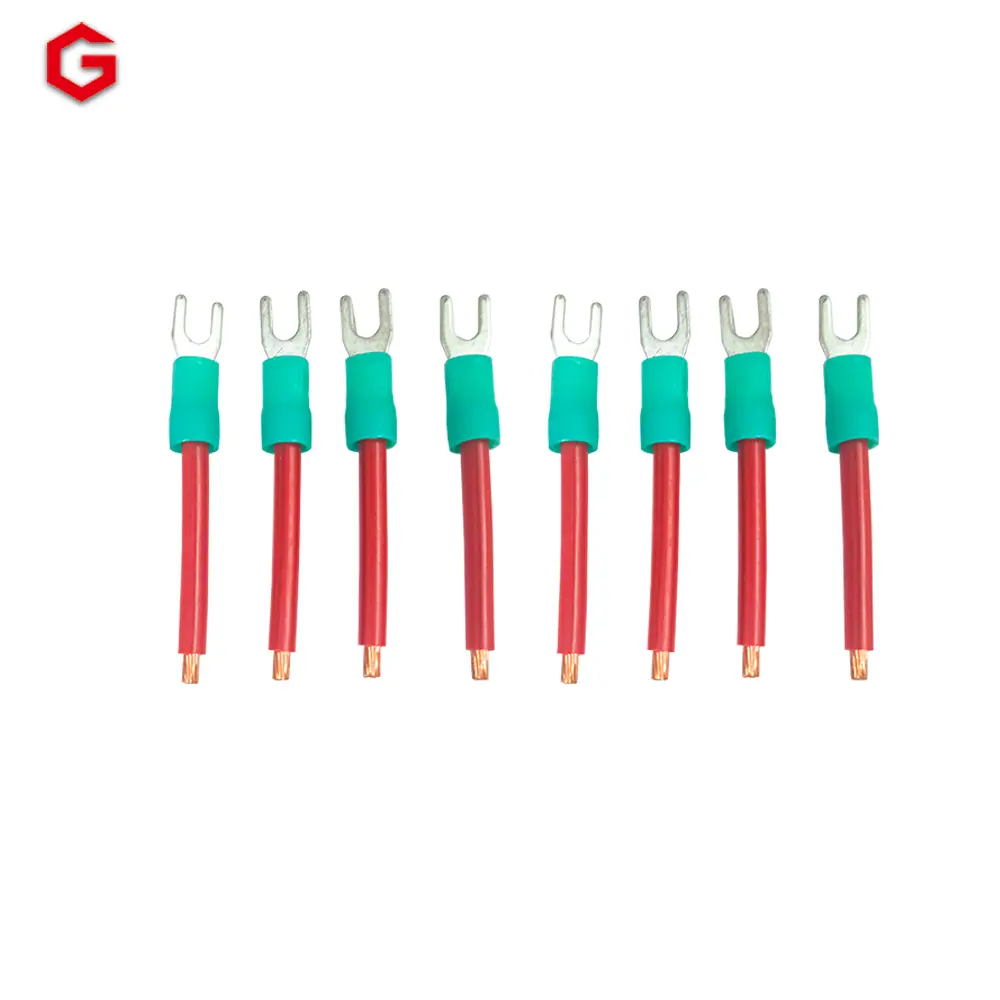

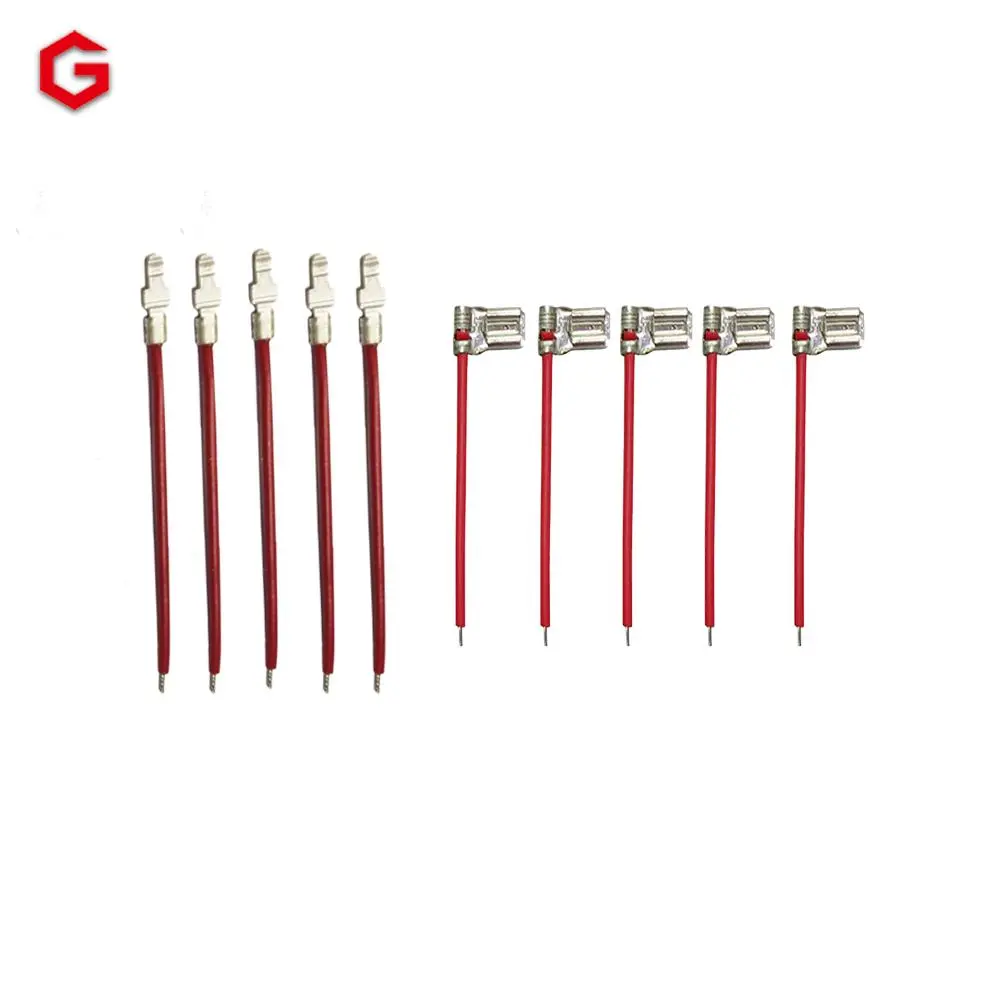

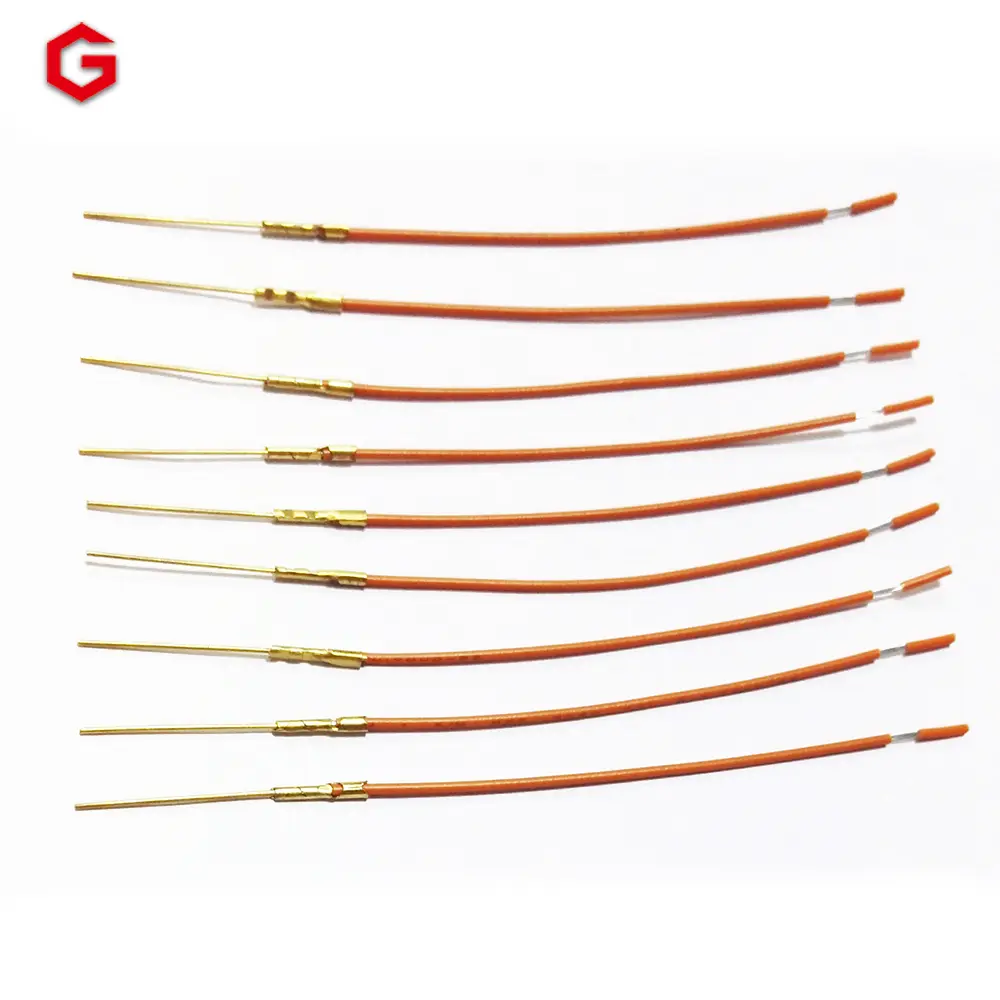

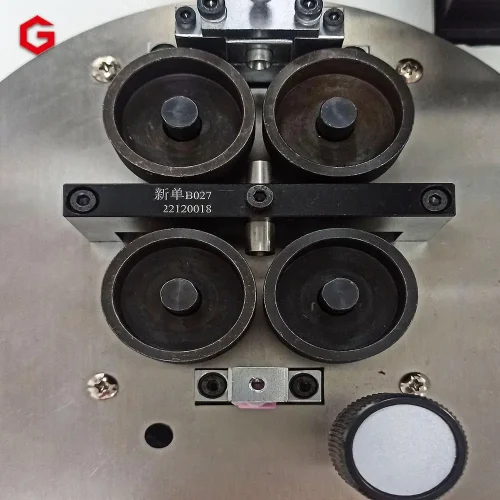

| Power Supply: | 50/60HZ, 220V Single-phase |
| Processing Length: | For wire twisting, the length ranges from 20mm to 9999mm; for non-wire twisting, it ranges from 8mm to 9999mm. |
| Wire Processing Range: | AWG#18 to AWG#30 |
| Terminal Processing Range: | The spacing ranges from 0.8mm to 3.96mm. |
| Production Capacity: | When the length is between 100mm and 200mm with wire twisting, the capacity is 3800 pieces per hour. When the length is 300mm without wire twisting, the capacity is 4000 to 5000 pieces per hour. |
| Stripping Length: | 1-15mm (Customization is required if it exceeds 15mm) |
| Wire Twisting Length: | 3mm-15mm |
| Cutting Accuracy: | ±(0.2%×L + 1)mm |
| Air Pressure: | 0.5-0.7Mpa (5-7KG/m³)/ Compressed air connection 0.4 – 0.6 MPa |
| External Dimensions: | 600mm×700mm×1500mm |
| Weight: | Approximately 280KG ± 15KG |
