Product Introduction

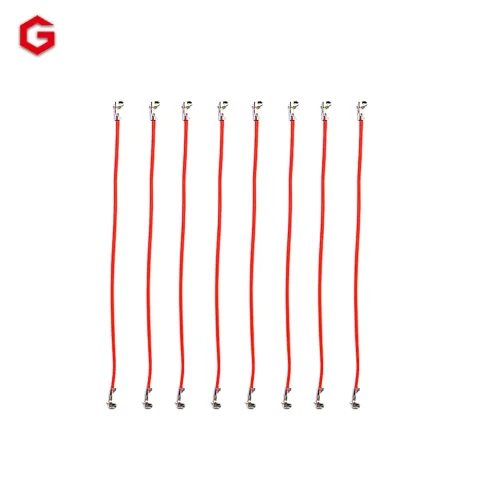

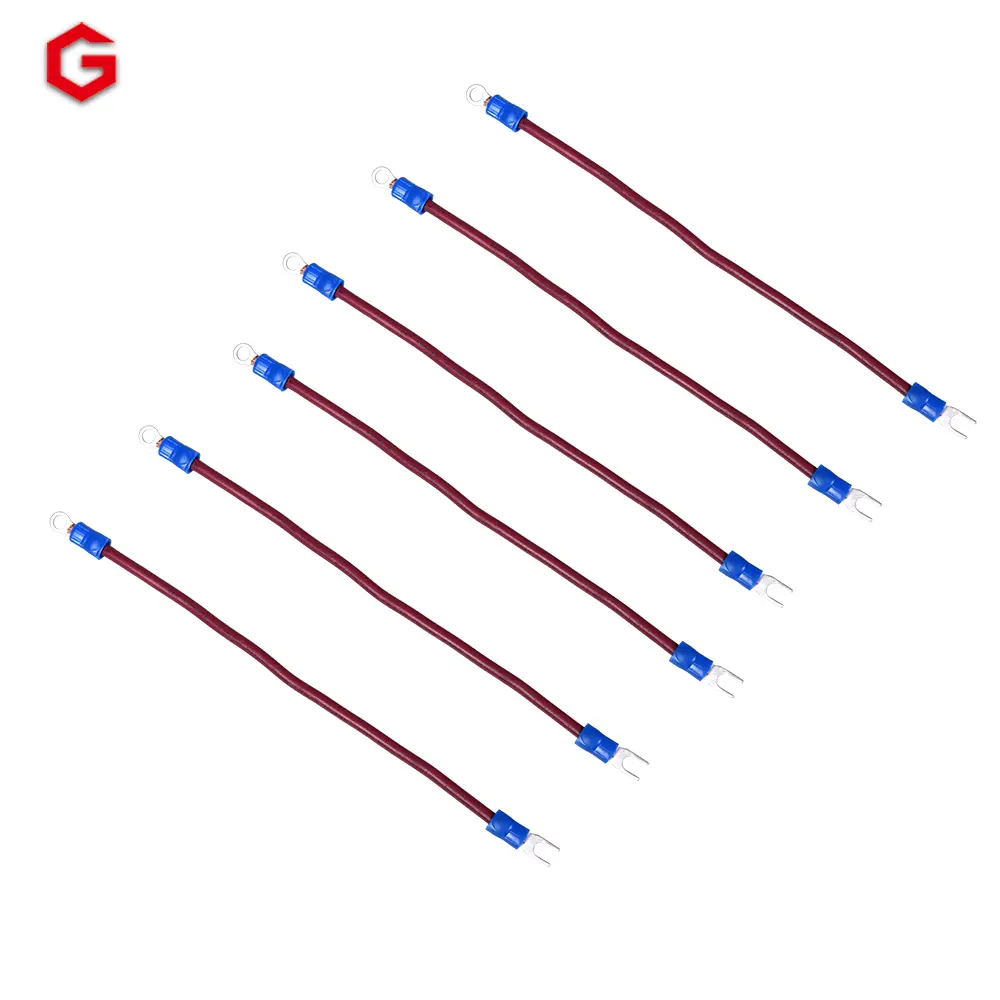

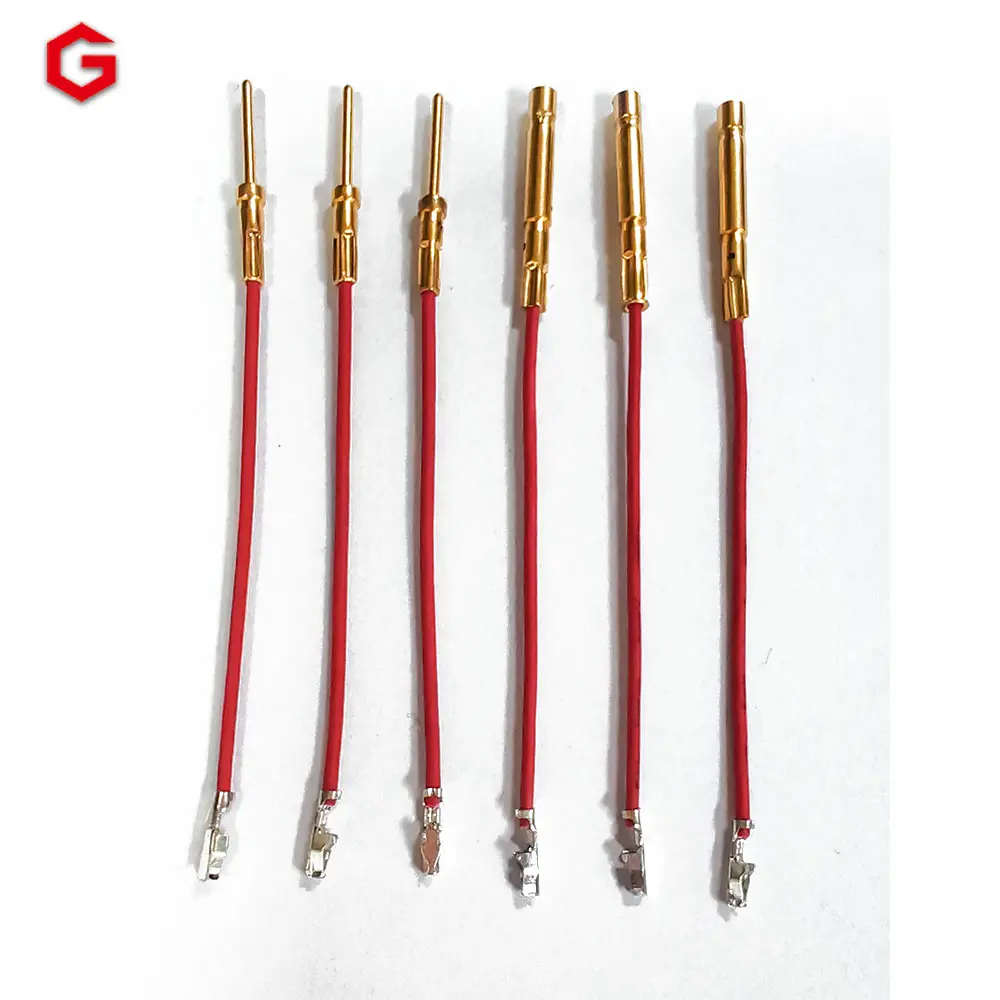

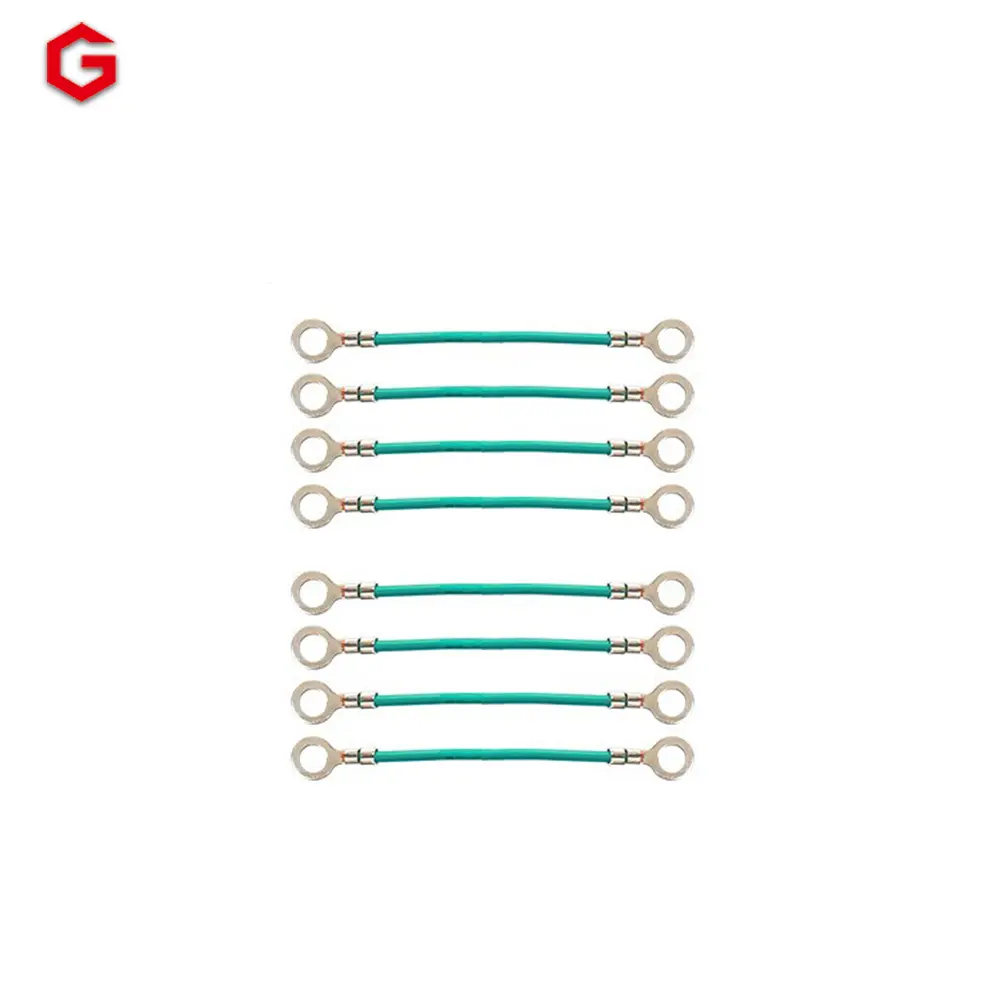

1.Double-head Terminal Crimping Machine, suitable for various types of terminals. It can process precision wires and ultra-short wires. When equipped with a conveyor belt, it can process long wires, and customization is supported.
2.Controlled by a single-chip microcomputer, multiple numerical values can be set. It has a fault alarm function and can display problems in real time. Defective products are automatically sorted.

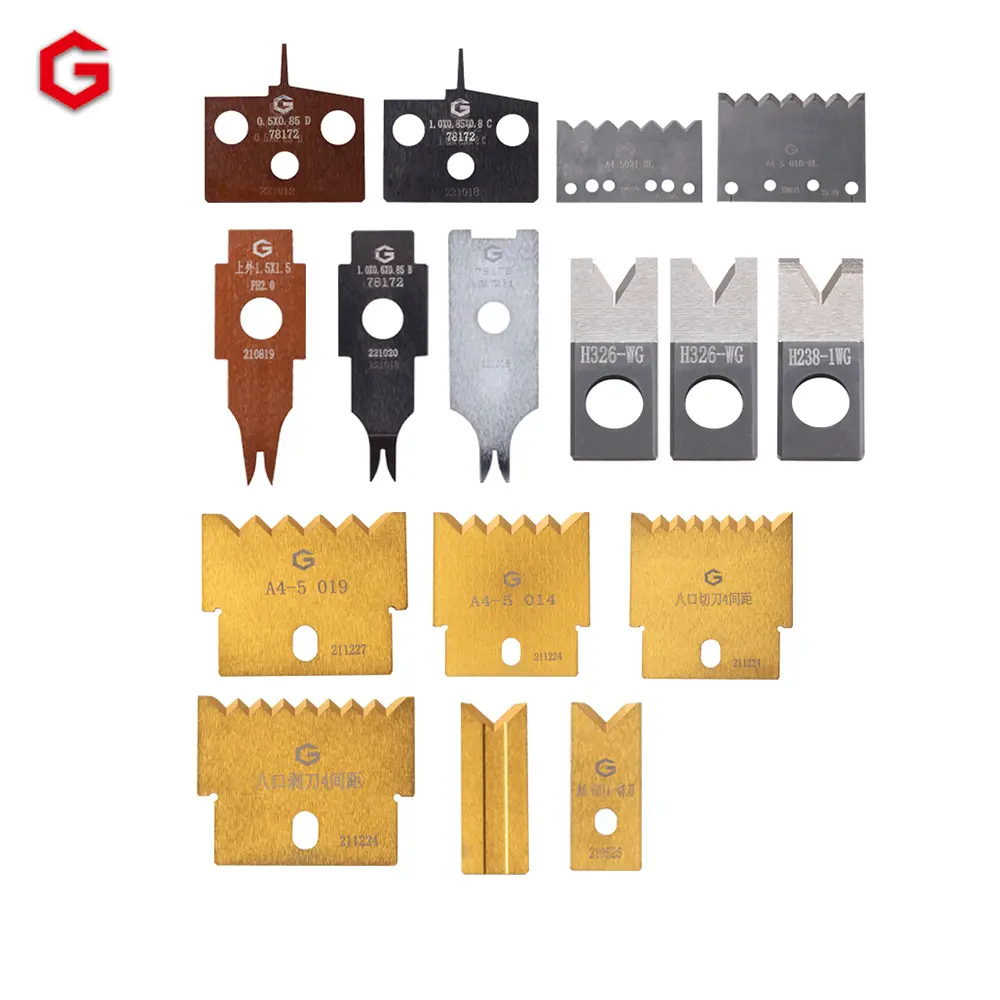

3.Adopting a modular design, it enables quick replacement, upgrade and maintenance. For different wire harnesses, it can operate efficiently by replacing components.
4.With a compact structure and an exquisite appearance, it occupies less space.
Product Function

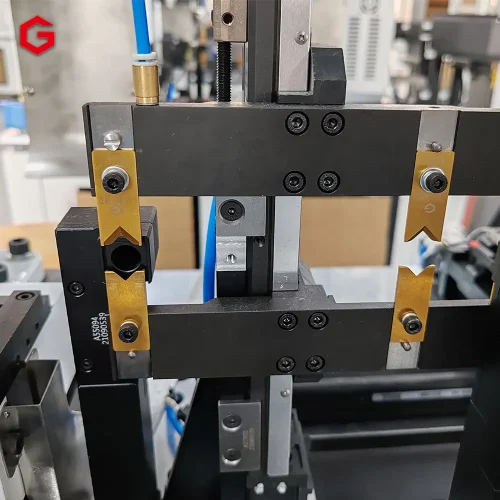

| Equipment Name and Model: | GL-01D Fully Automatic Double-head Terminal Crimping Machine |
| Main Functions: | Cutting, stripping at both ends A and B, and crimping terminals |
| Control Mode: | Human-machine interface + microcomputer for machine adjustment |

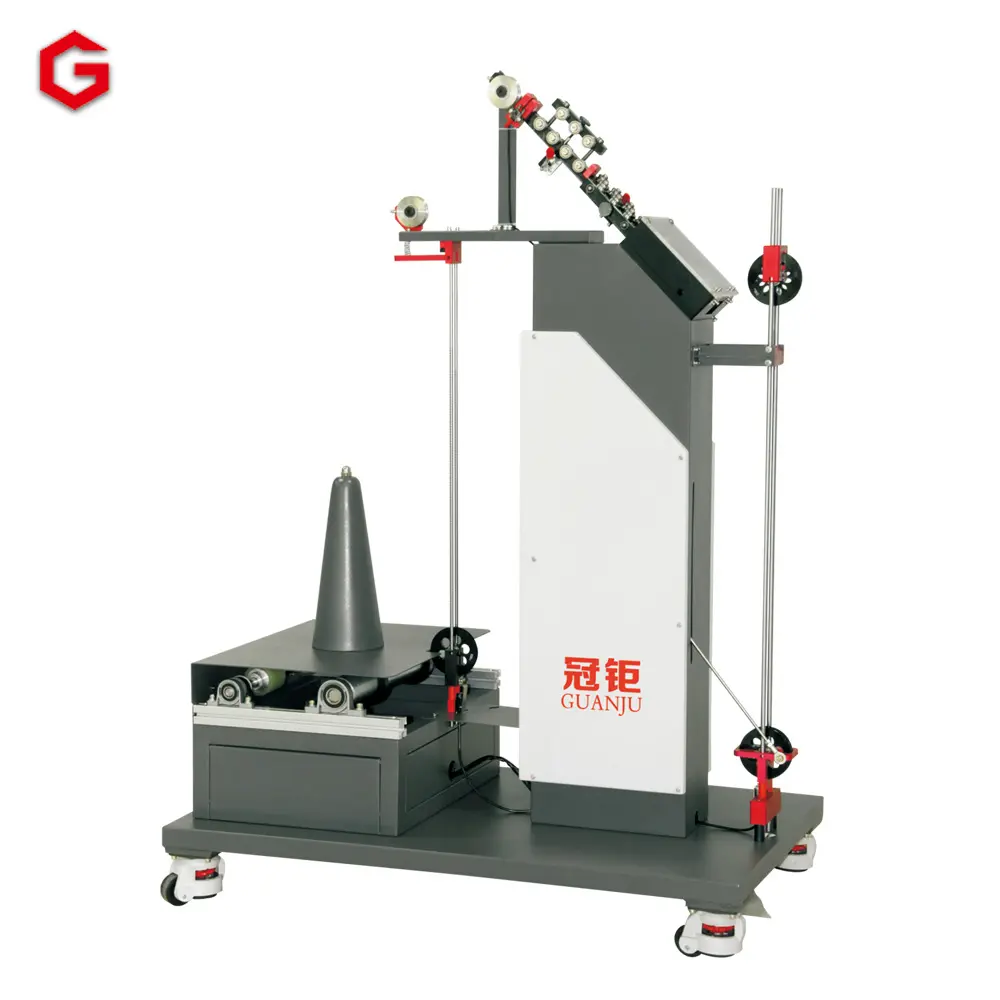

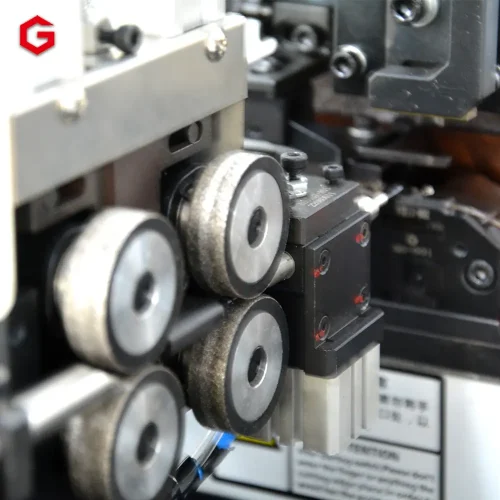

| Wire Pay-off System: | Computer fully automatic pre-wire feeding device, suitable for coiled wires and spooled wires |
| Detection Device: | Detection of the presence or absence of terminals, wire knotting, wire shortage alarm, and air pressure detection |
| Terminal Pressure Detection System: | Optional to install (Guanju) |
| Defective Product Handling: | Sorting (a cutting device can be installed additionally) |

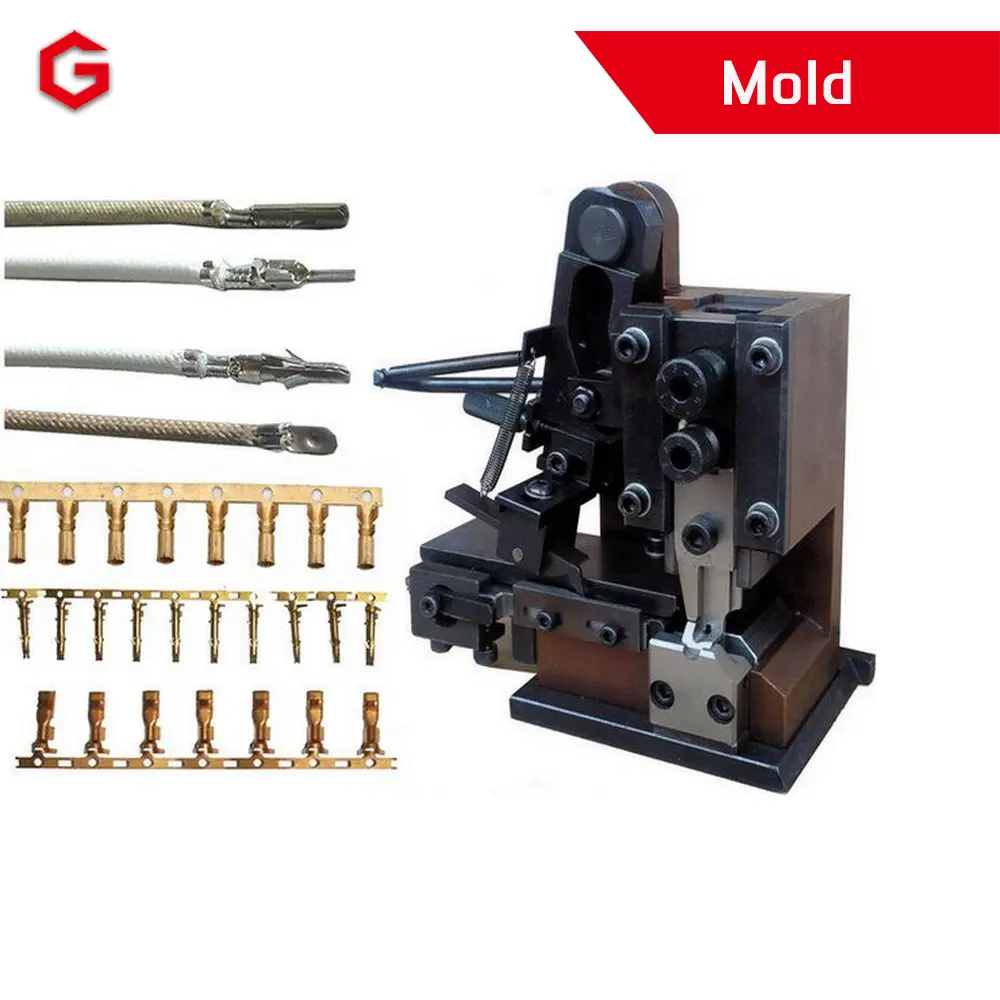

| Applicable Molds: | OTP standard horizontal molds, straight molds, flag-shaped molds. European-style and Korean-style molds can be customized. |
| Terminal Crimping Capacity: | 2T/3T ultra-silent variable frequency terminal machine |
Product parameter
| Power Supply: | 50/60HZ, 220V single-phase |
| Processing Length: | 13mm (total length) – 99999mm |
| Range of Wires for Wire Processing: | Precision type: AWG#20 – AWG36# (2-wheel wire feeding) |
| AWG#18 – AWG14# (4-wheel wire feeding) | |
| Range of Terminals for Processing: | The pitch is 0.8 – 3.96mm. Some closed-type continuous insertion terminals and single terminals can be customized. |
| Production Capacity: | 3000 – 3500 PCS/H (when the length is 13 – 200mm). The actual efficiency shall be subject to the actual measurement of the wires. |
| Stripping Length: | 0 – 6mm at end A, 0 – 10mm at end B |
| Cutting Precision: | ±(0.2%*L+1)mm |
| Air Pressure: | 0.5 – 0.7Mpa (5 – 7KG/m³) |
| External Dimensions: | 1400*800*1500mm. Dimensions of the supporting wire pay-off rack: 920*560*1300mm |
| Weight: | Approximately 450KG±15KG. The weight of the supporting wire pay-off rack is approximately 80KG |
