Product Introduction
1.It is a fully automatic device integrating multiple functions, suitable for various types of terminals. It can process long wires when combined with a conveyor belt and supports customization.
2.It is controlled by a single-chip microcomputer, and multiple numerical values can be set. It has a fault alarm function and can display problems in real time.
3.It adopts a modular design. Each functional module can be freely turned on or off in the program, enabling quick replacement, upgrading, and maintenance.
4.It has a compact structure and an exquisite appearance, occupying less space.
Product Function

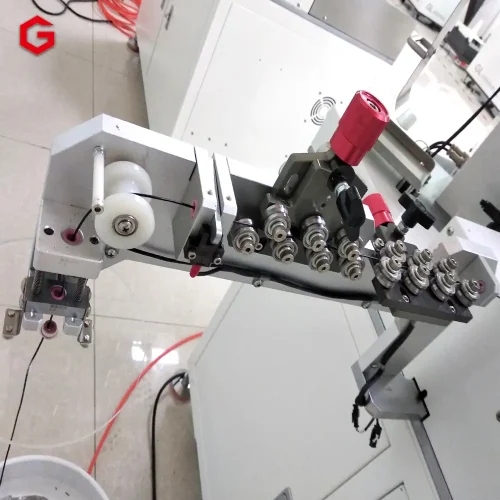

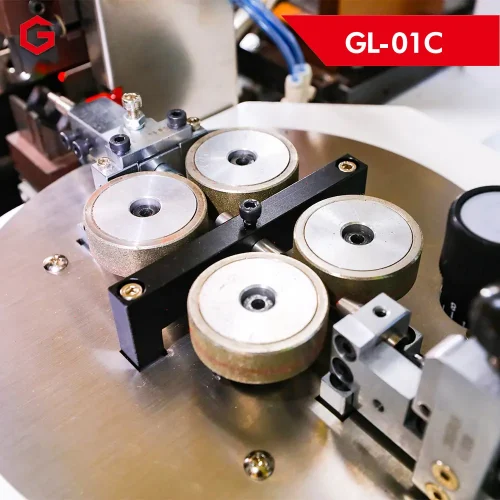

| Equipment Name and Model: | GL – 01C Fully Automatic Double – End Terminal Crimping Machine |

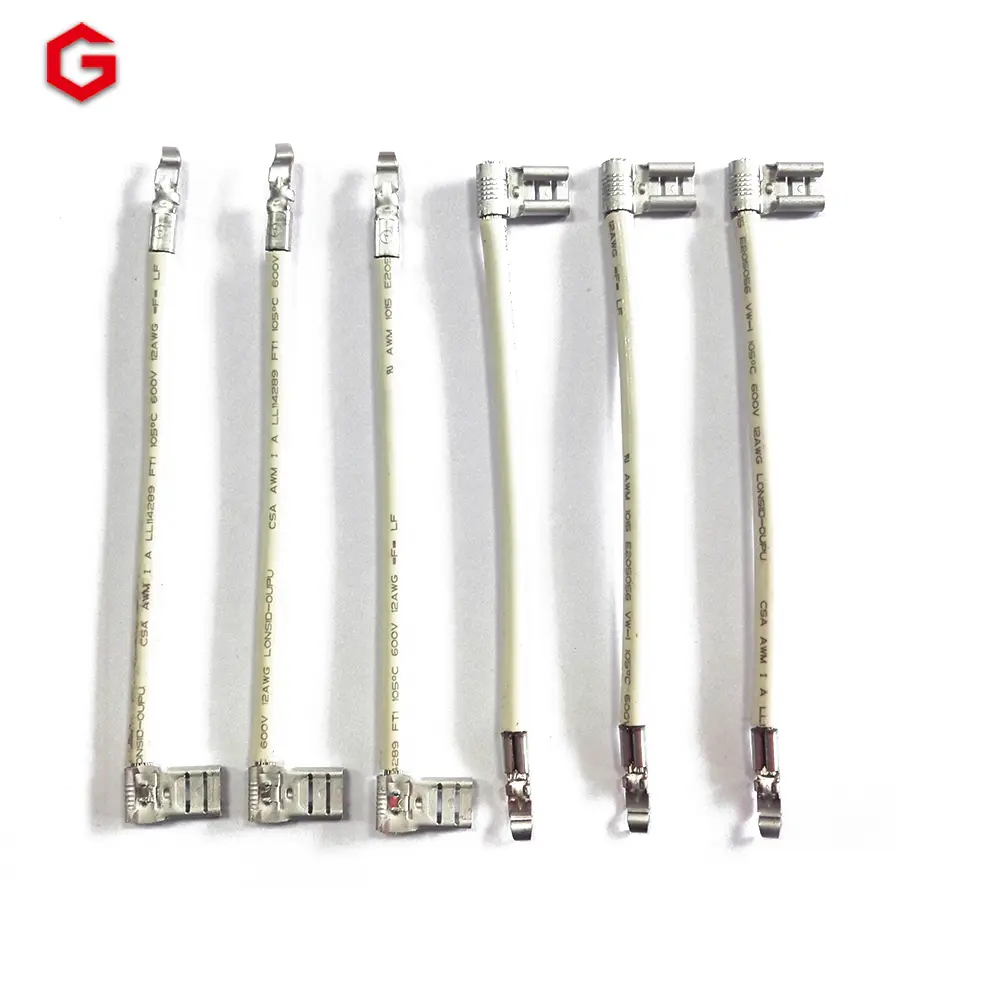

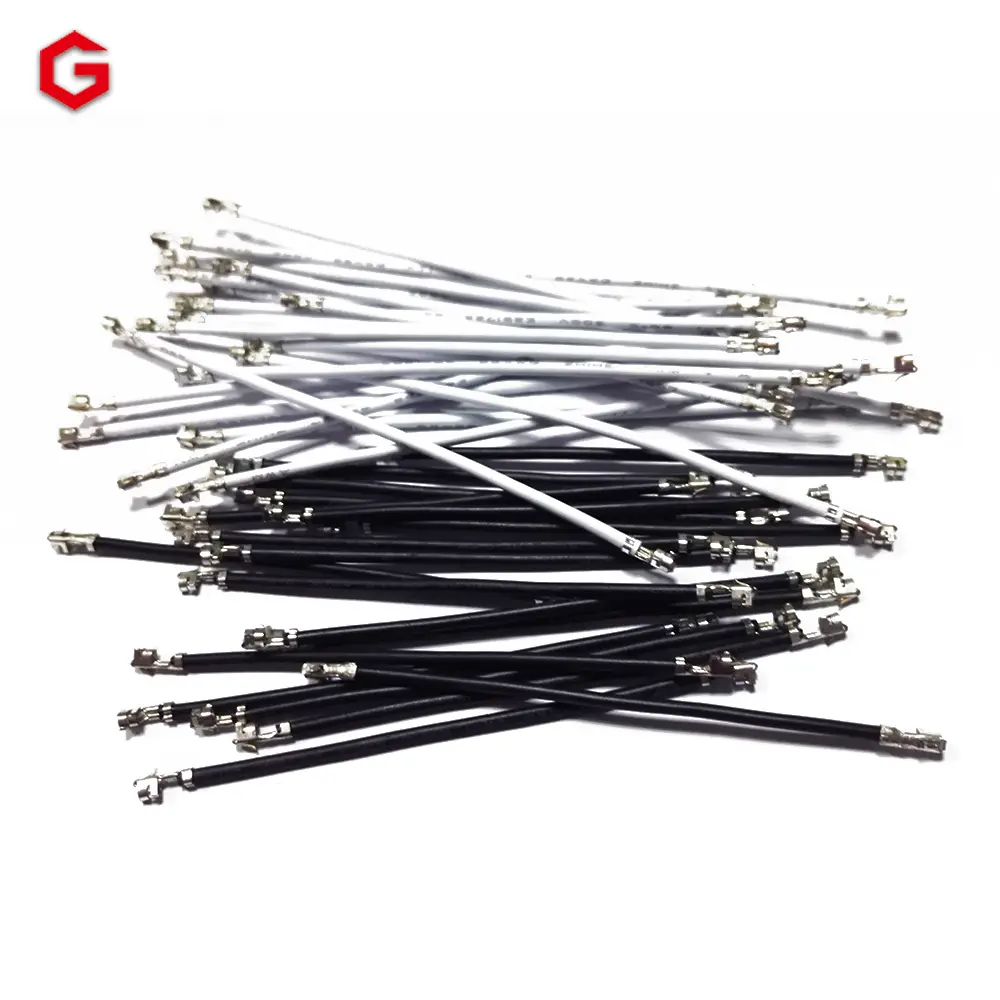

| Main Functions: | Cutting, stripping, and crimping terminals at both end A and end B |
| Control Method: | Human – Machine Interface + Microcomputer for Machine Adjustment |
| Detection Devices: | Alarms for terminal presence/absence, wire knotting, wire shortage, and air pressure detection |
| Terminal Pressure Detection System: | Optional to install (by Guanju) |
| Terminal Crimping Capacity: | 2T/3T Ultra – Quiet Variable – Frequency Terminal Machine |
Product parameter
| Power Supply: | 50/60HZ, 220V Single Phase |
| Processing Length: | 30mm (total length) to 9999mm |
| Range of Wires for Wire Processing: | Standard Machine: AWG#30 to AWG#16 |
| Customized: AWG#14 to AWG#16 | |

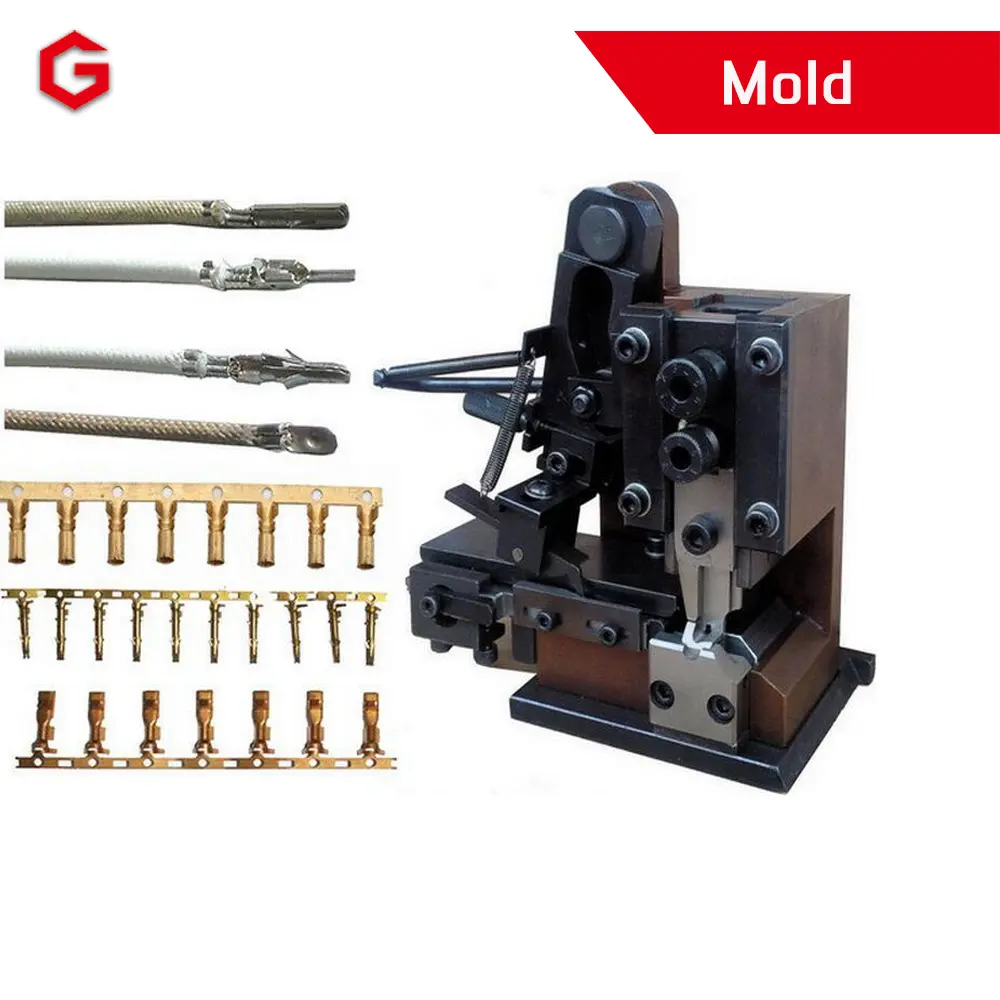

| Range of Processable Terminals: | Universal for horizontal and vertical molds with a size of 1.25 – 3.96mm, suitable for flag – shaped molds, etc. Some closed – end continuous insertion terminals and single terminals can be customized. |
| Production Capacity: | 3200pcs to 3600pcs per hour (when the total length is 30mm to 200mm). The actual production efficiency may vary depending on the wire material and processing technology, and the actual measurement shall prevail. |
| Stripping Length: | 0 to 6mm at end A, 0 to 8mm at end B |
| Cutting Accuracy: | ±(0.2%*L+1)mm |
| Air Pressure: | 0.5 – 0.7Mpa (5 – 7KG/m³) |
| Overall Dimensions: | 1000*1700*1550mm |
| Weight: | Approximately 450KG±15KG |
Related Cases

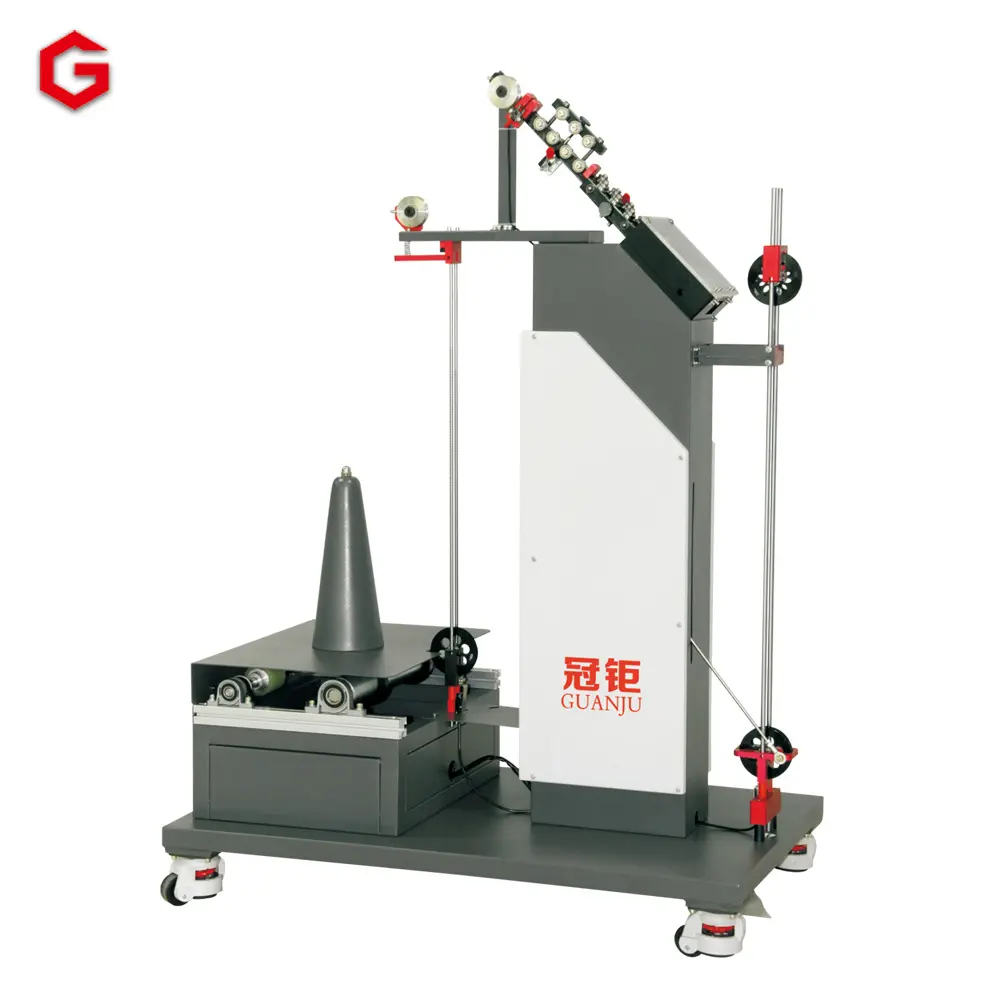

Auxiliary Expansion Device
