Product Introduction

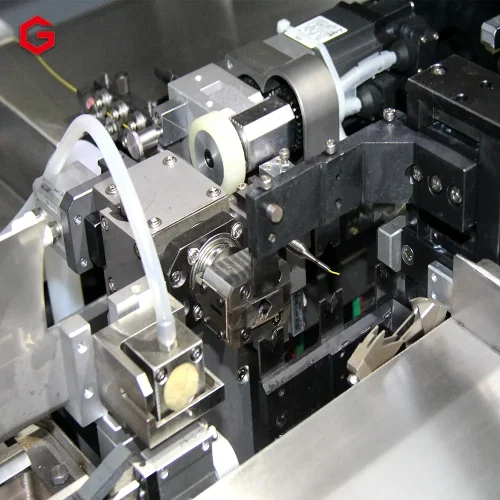

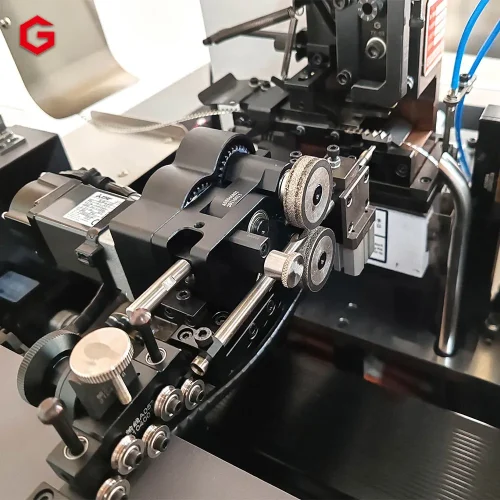

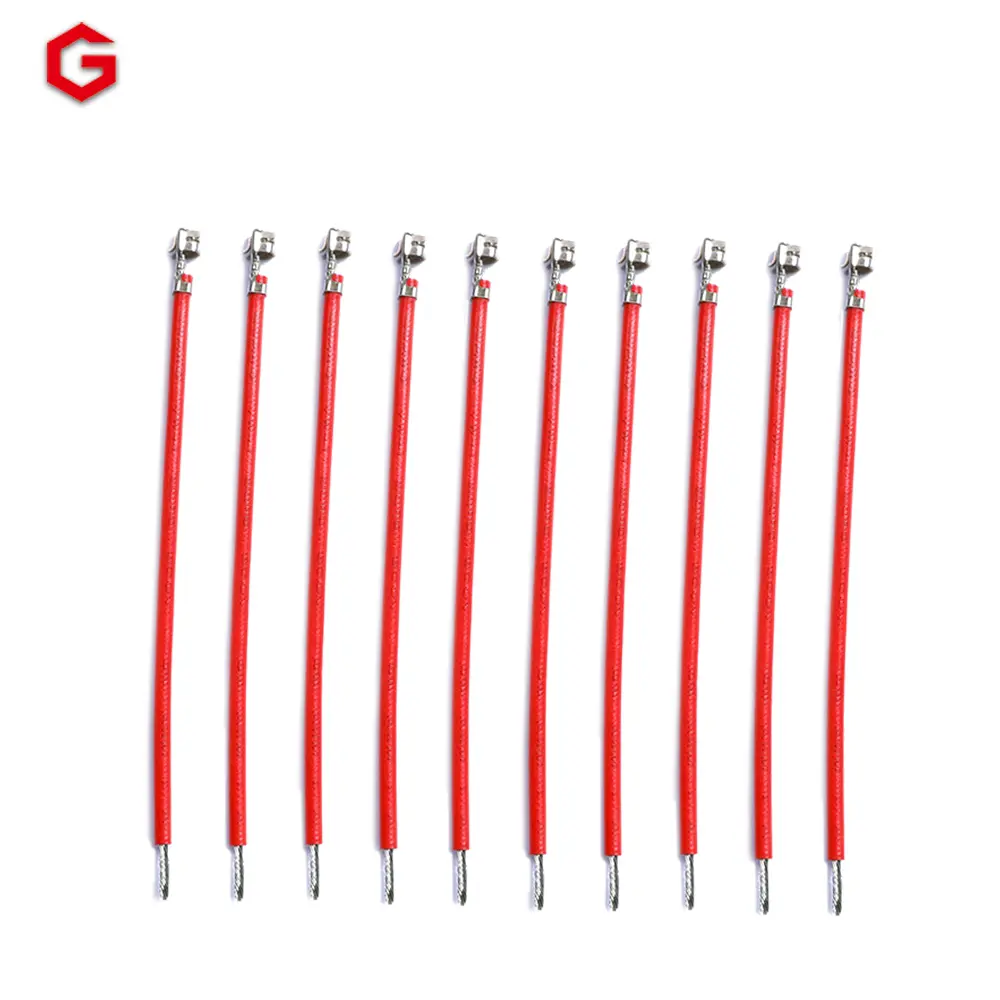

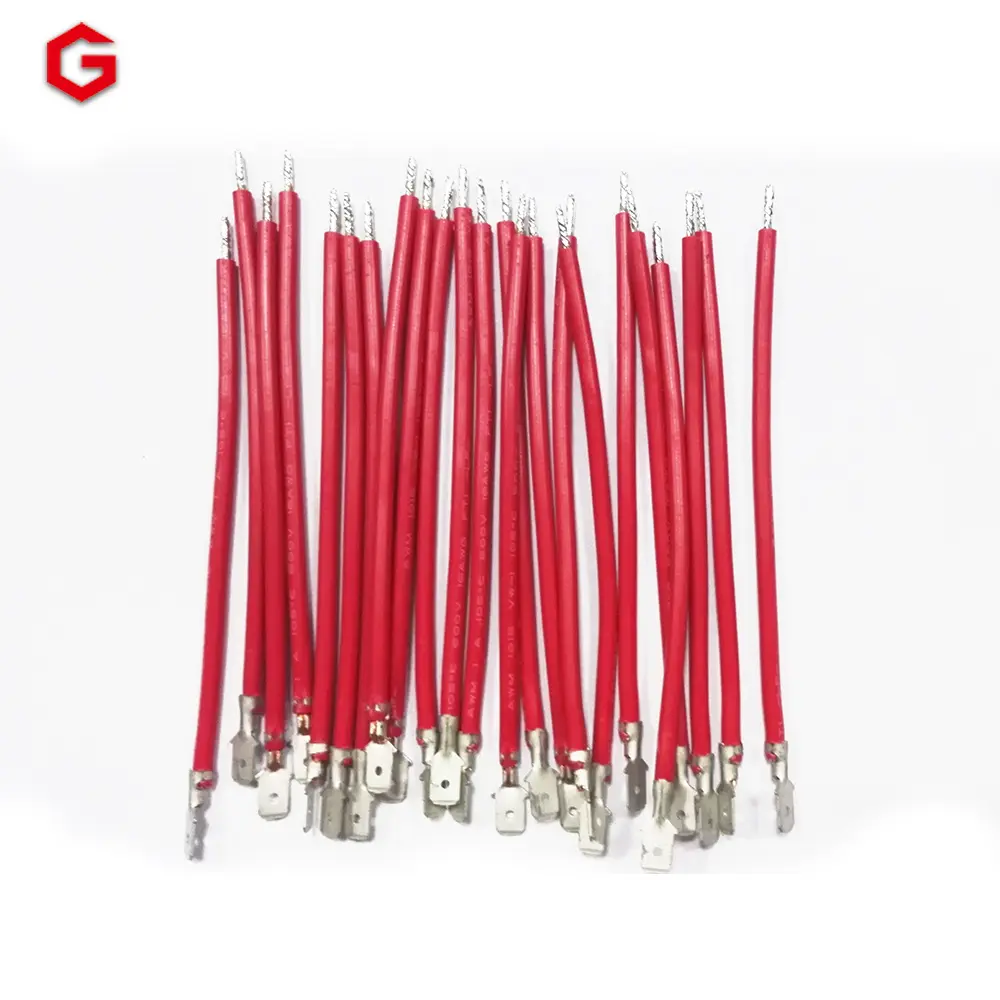

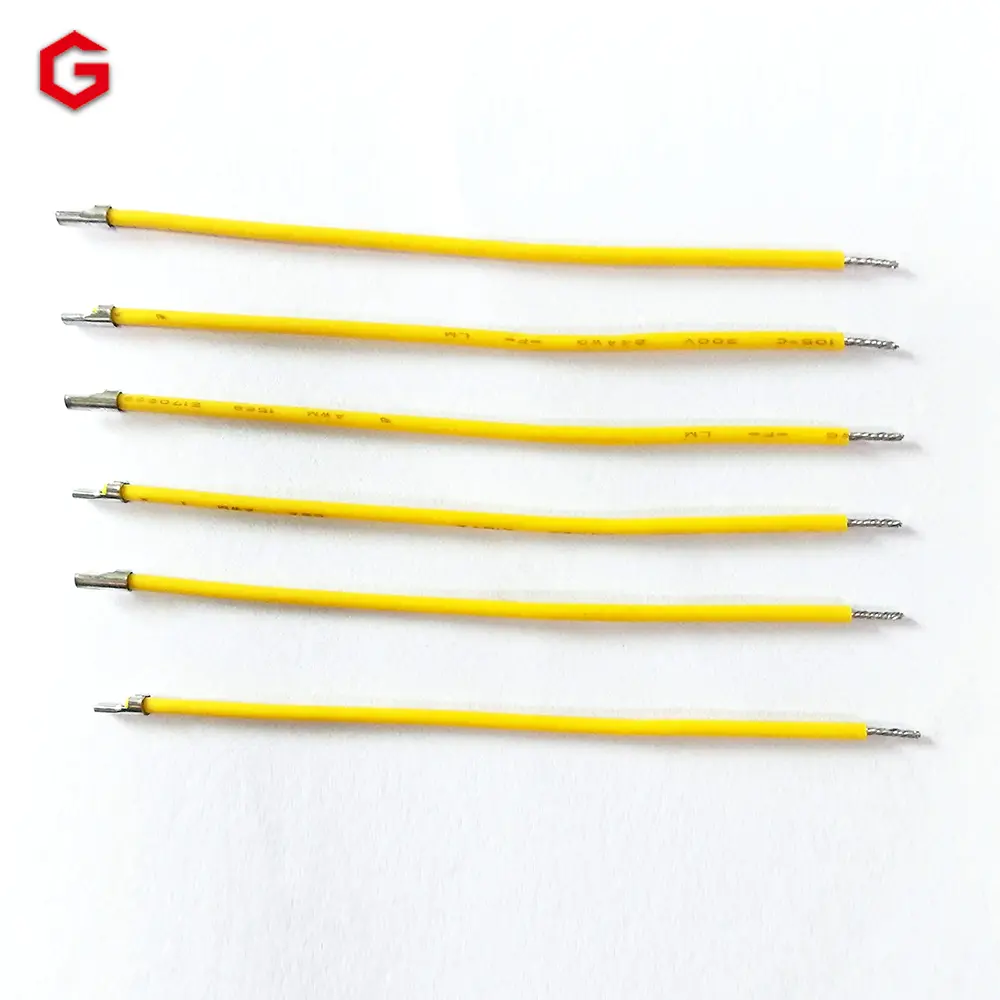

1.Fully Automatic Single-head Wire Twisting and Tinning Machine，A fully automatic device integrating multiple functions. It is suitable for extremely thin wires and high-precision wires, and customization is supported.
2. Controlled by a single-chip microcomputer, multiple values can be set. The operation data can be retained and traced. It has a fault alarm function, which can display problems in real time. Defective products are automatically sorted.

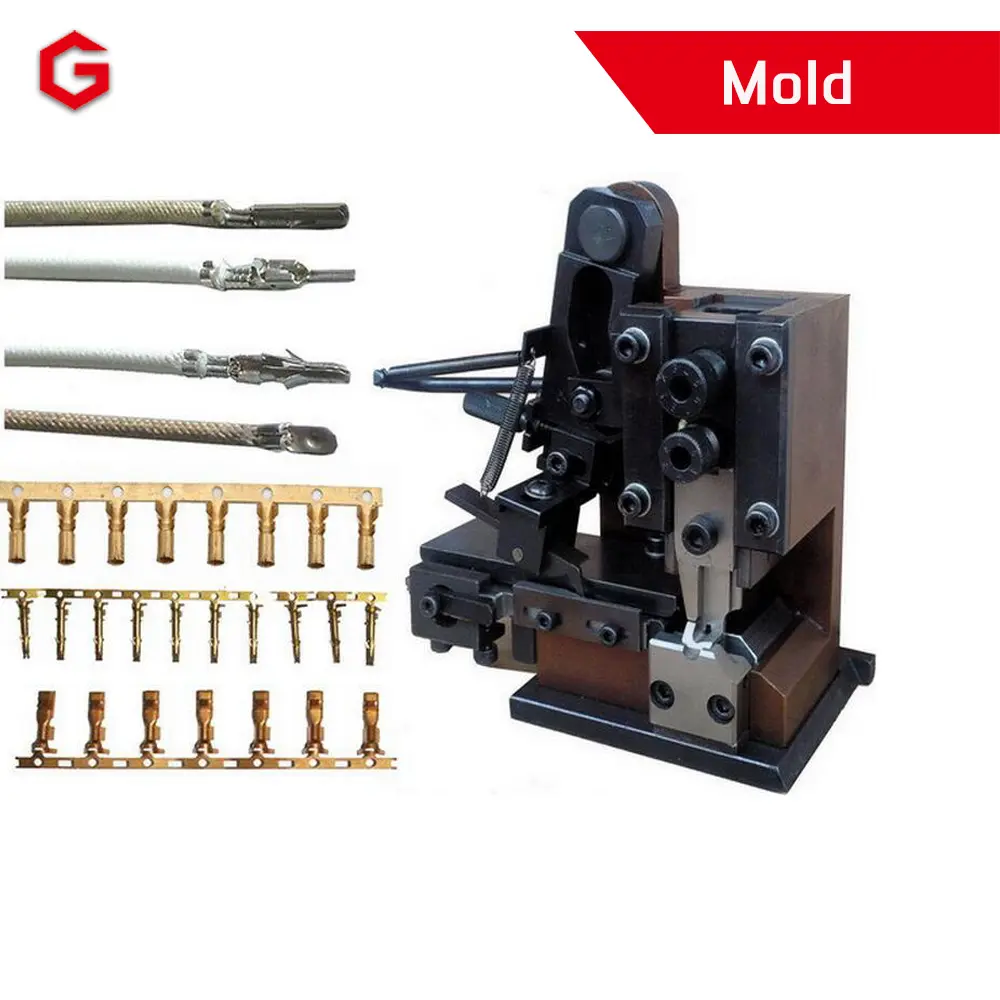

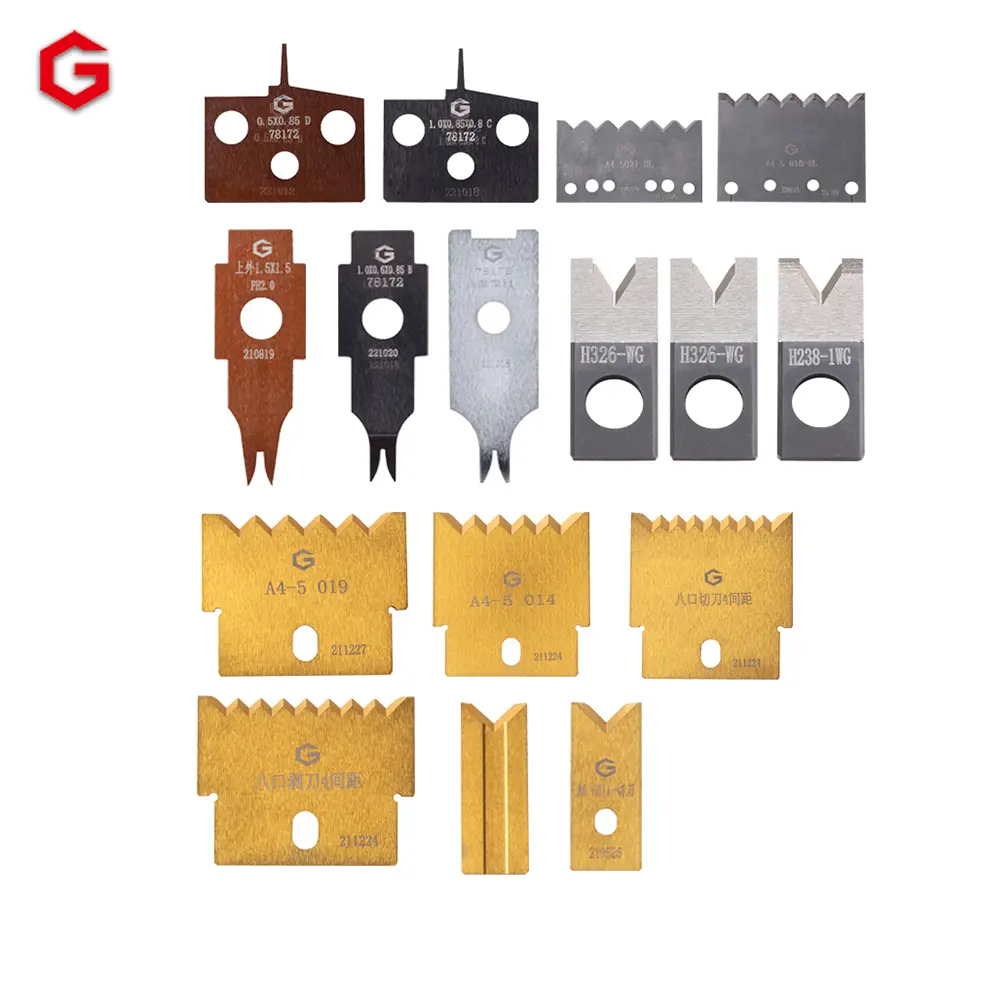

3. Adopting a modular design to achieve rapid replacement, upgrading, and maintenance. For different wire harnesses, it can operate efficiently by replacing components.
4.Automatic Crimping Machine With a compact structure and an exquisite appearance, it takes up less space.
Product Function
| Power Supply: | 50/60HZ, 220V Single-phase |
| Processing Length: | For wire twisting, the length ranges from 20mm to 9999mm; for non-wire twisting, it ranges from 8mm to 9999mm. |
| Wire Processing Range: | AWG#18 to AWG#30 |
| Terminal Processing Range: | The spacing ranges from 0.8mm to 3.96mm. |
| Production Capacity: | When the length is between 100mm and 200mm with wire twisting, the capacity is 3800 pieces per hour. When the length is 300mm without wire twisting, the capacity is 4000 to 5000 pieces per hour. |
| Stripping Length: | 1-15mm (Customization is required if it exceeds 15mm) |
| Wire Twisting Length: | 3mm-15mm |
| Cutting Accuracy: | ±(0.2%×L + 1)mm |
| Air Pressure: | 0.5-0.7Mpa (5-7KG/m³)/ Compressed air connection 0.4 – 0.6 MPa |
| External Dimensions: | 600mm×700mm×1500mm |
| Weight: | Approximately 280KG ± 15KG |
Product parameter
| Power Supply: | 50/60HZ, 220V Single-phase |
| Processing Length: | 13mm (total length) – 99999mm |
| Wire Processing Range: | Precision type: AWG#20 – AWG32# (2-wheel wire feeding); |
| Large wire type: AWG#20 – AWG14# (4-wheel wire feeding) | |
| Terminal Processing Range: | Universal for horizontal and vertical molds of 0.8/1.0/1.25/1.5/2.0/2.54 |
| Production Capacity: | 3000 – 3600 pieces per hour (100 – 600mm, tinning only, no wire twisting); |
| 2200 – 2300 pieces per hour (100 – 600mm, tinning and wire twisting) | |
| Stripping Length: | End A: 0 – 10mm; End B: 0 – 15mm |
| Cutting Accuracy: | ±(0.2%*L + 1)mm |
| Air Pressure: | 0.5 – 0.7Mpa (5 – 7KG/m³)/Compressed air connection 0.4 – 0.6 MPa |
| External Dimensions: | 1210*770*1370mm; Dimensions of the supporting wire rack: 920*560*1300mm |
| Weight: | Approximately 400KG ± 15KG; Weight of the supporting wire rack is approximately 80KG |
