Product Introduction

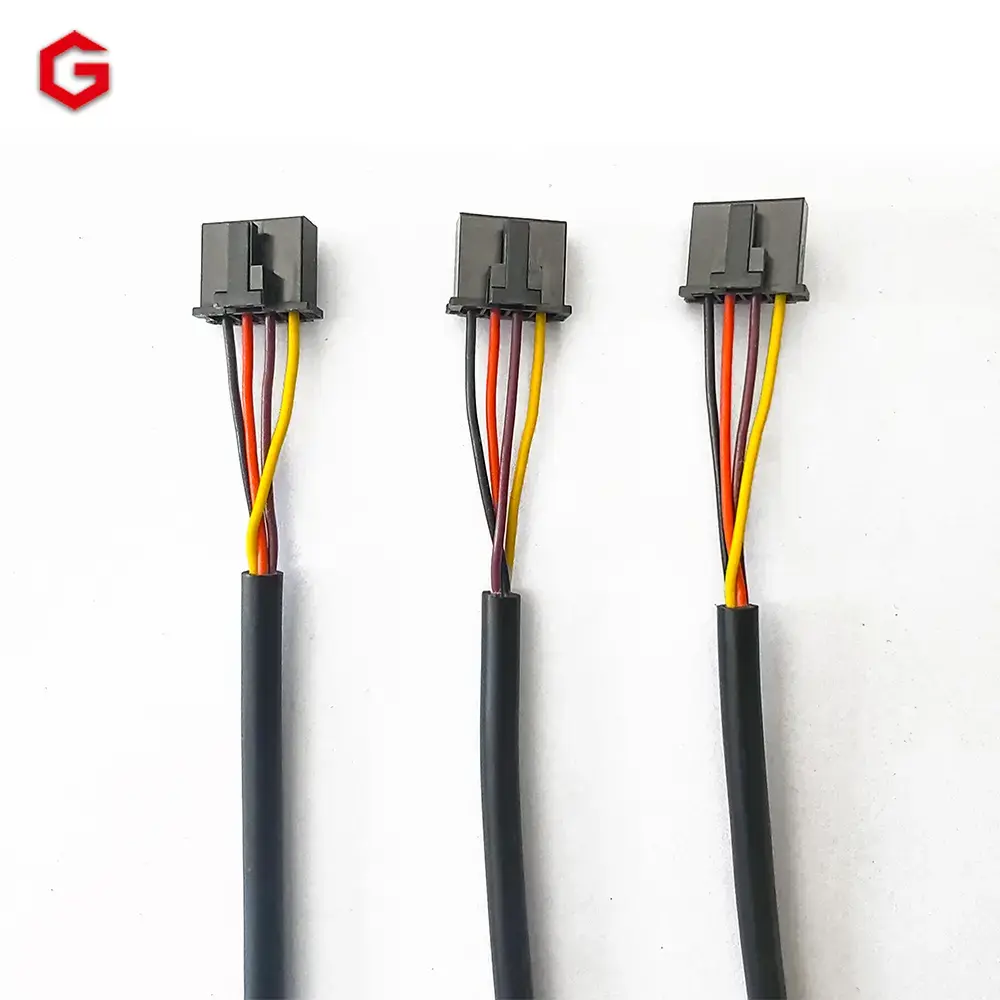

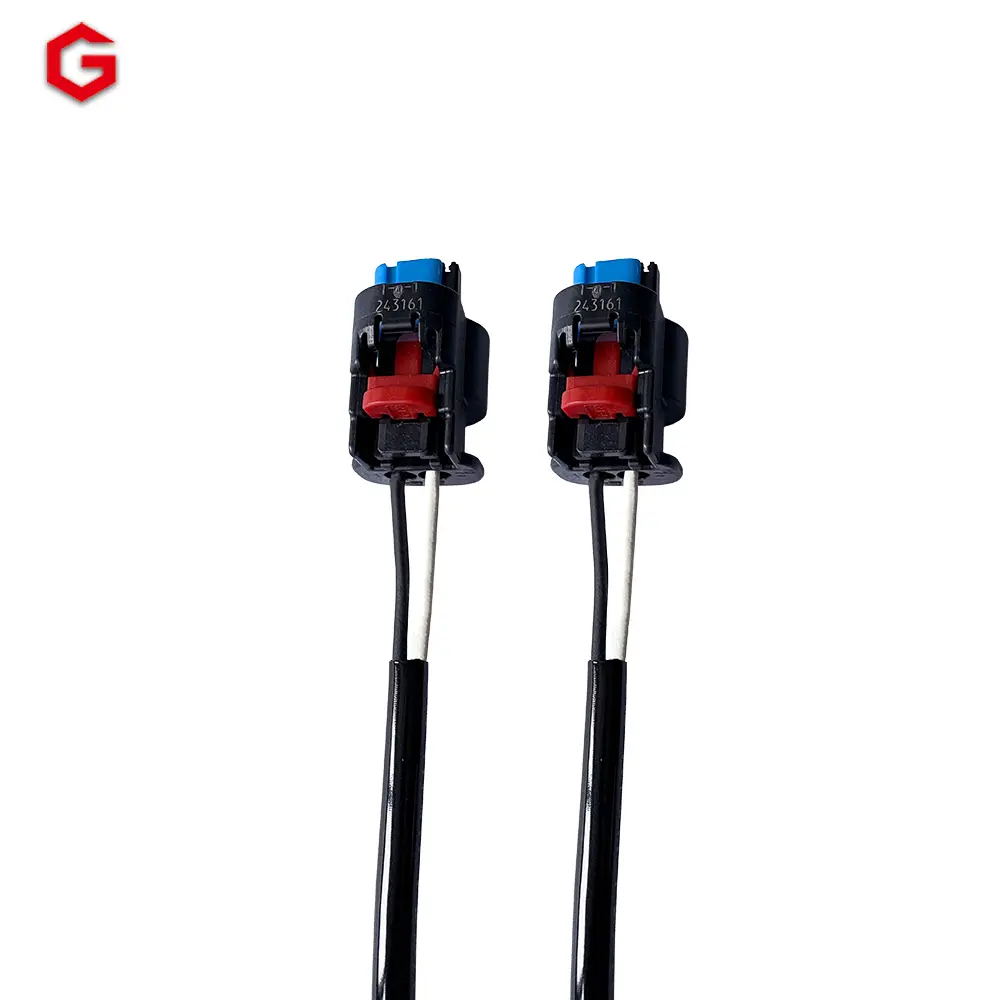

1.Semi – automatic Crimping and Housing Insertion Machine is suitable for all kinds of multi – core wires and can adapt to wires of different specifications and types. It can automatically complete various functions at one time.
2.It can identify poor crimping, incorrect color sequence, and poor housing insertion to prevent defective products from flowing out.
3.It has a precise adjustment function for the crimping position and spacing to ensure the quality of wire processing.
4.With a compact structural design, it integrates multiple optimized structures, occupying less space and achieving higher speed.

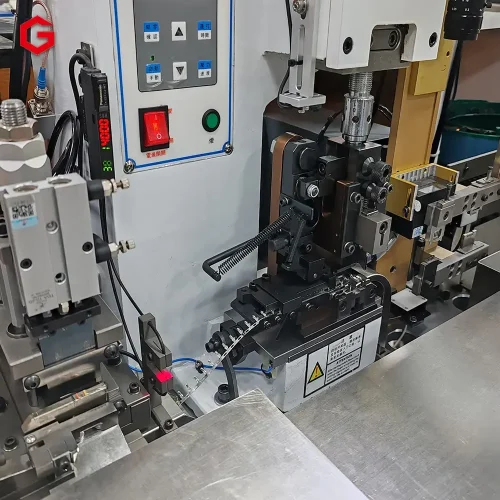

Product Function

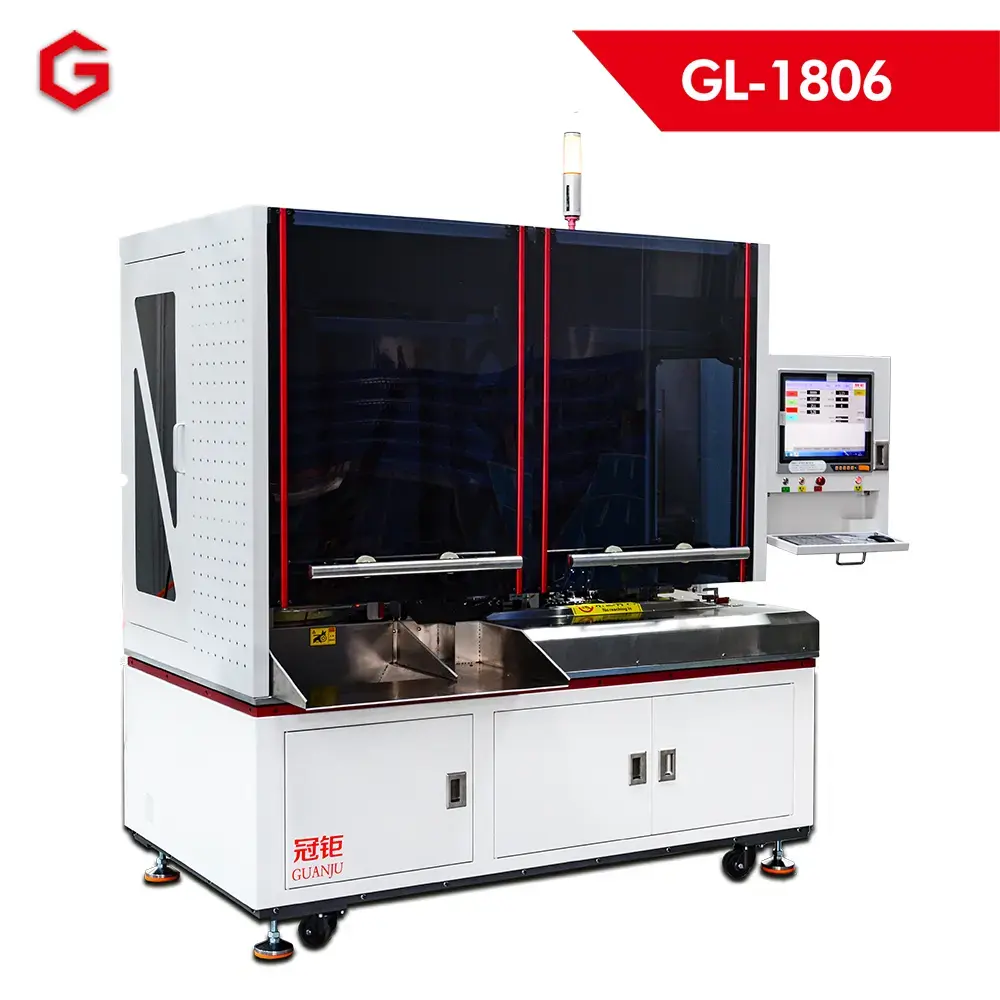

| Equipment Name and Model: | GL-1806 Semi-automatic Stripping, Crimping and Housing Insertion Machine for Multi-core Wires |
| Main Functions: | Stripping of multi-core wires, crimping of terminals, CCD terminal detection, and housing insertion |
| Control Mode: | Controlled by an industrial computer with Windows 7 operating system. It supports dual input via a touch screen, mouse, and keyboard. |
| Detection Devices: | CCD visual inspection for single-ended terminals, CCD visual inspection for single-ended housing insertion in place, air pressure detection, and detection of the presence or absence of terminals |
| Terminal Pressure Detection System: | Single-channel pressure monitoring (Guanju) |
| Defective Product Handling: | Sorting in the defective product area |

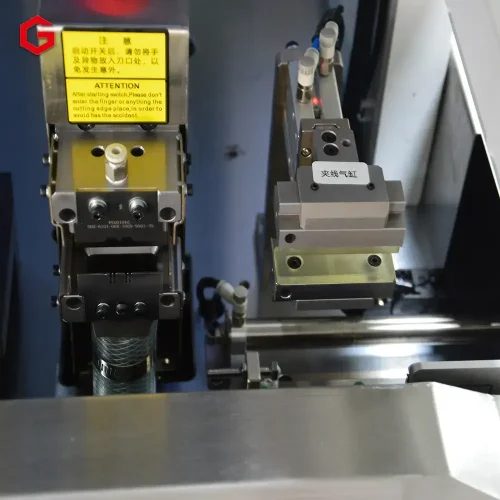

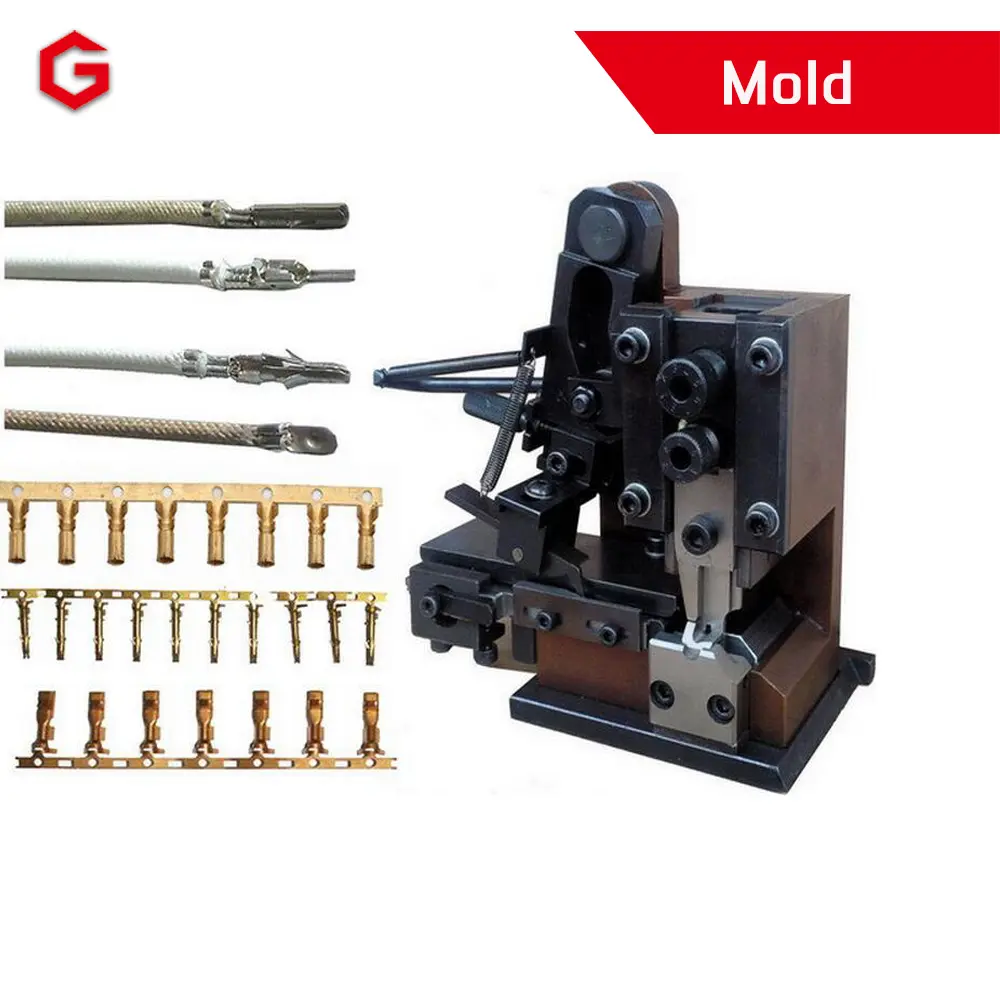

| Applicable Mold: | OTP standard horizontal molds, vertical molds |
| Applicable Connector Housing: | Suitable for connector housings with multiple PINs and different PIN pitches |
| Terminal Crimping Capacity: | 2T servo terminal machine |
Product parameter
| Power Supply: | Single-phase, 220V, 50/60HZ |
| Processing Length: | 100-800mm |
| Range of Wires for Processing: | AWG#28-AWG#20, suitable for multiple specifications |
| Processable Terminal Spacing: | 1.25-3.96mm |
| Production Capacity: | It is a semi-automatic device. The manual wire feeding takes about 5 seconds per cycle, and the actual production capacity shall prevail. |
| Stripping Length: | 1-7mm |
| Air Pressure: | 0.5-0.7Mpa (5-7KG/m³) |
| External Dimensions: | 1900*1200*2300mm |
