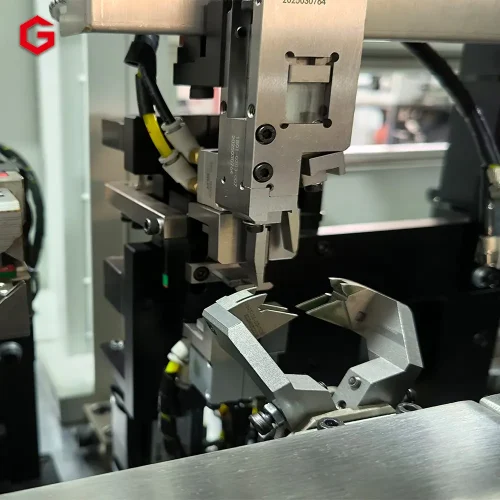

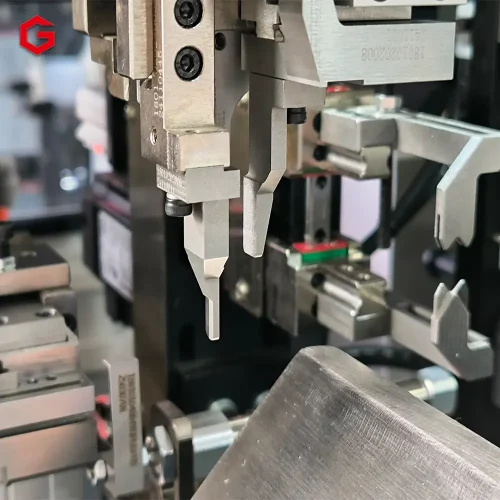

Product Introduction
1.This is a fully automatic device with an intelligent design that integrates multiple functions. It adopts a multi-wire feeding method, allowing for the arbitrary setting of wire colors and the order of inserting into the housing. The length of each wire can be set individually to process wires of different lengths. It can process multi-layer plastic housings of different specifications and supports customization.
2.Controlled by an industrial computer, the operation data can be retained for traceability. With multiple detection functions, defective products are automatically sorted, there is a fault alarm system, and problems are displayed in real time. It is suitable for plastic housings with multiple pins. Wires of different specifications and colors can be easily selected.
3.With a compact structural design that incorporates multiple optimized structures, it occupies less space and operates at a higher speed.
4.Adopting a modular design, each functional module can be freely turned on or off in the program, enabling rapid replacement, upgrading, and maintenance. For different wire harnesses, it can operate efficiently just by replacing components.
Product Function

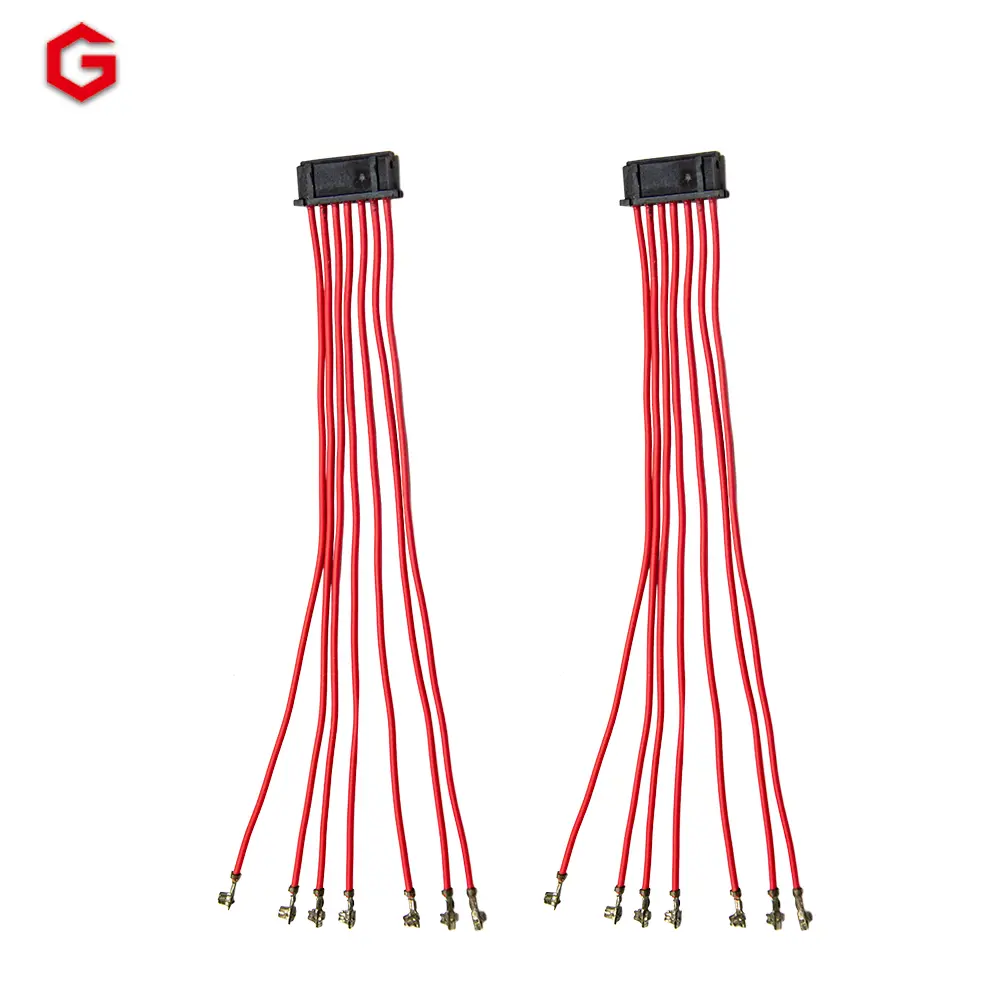

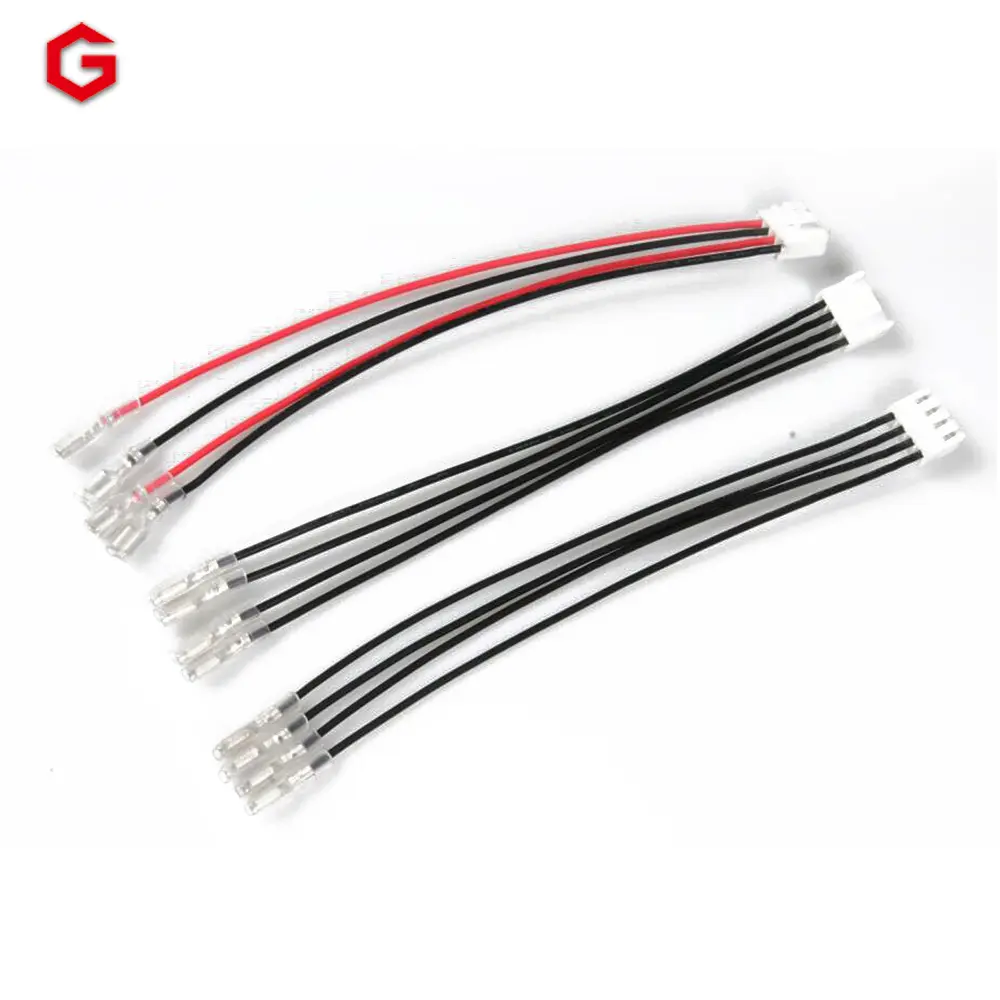

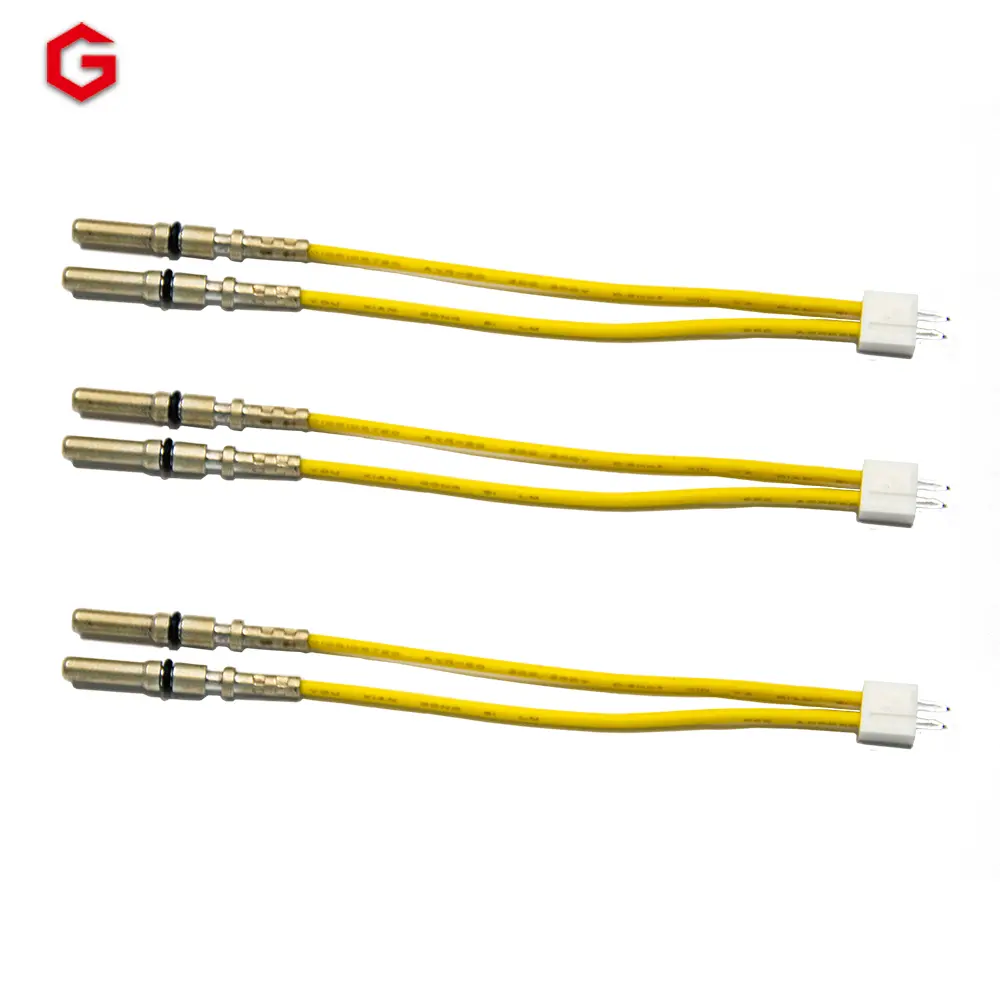

| Device Name and Model: | GL-1801B Fully Automatic Double-End Terminal Crimping and Single-End Plastic Housing Threading Machine |
| Main Functions: | At end A: Terminal crimping, wire cutting, stripping; at end B: Wire cutting, full stripping, half stripping, terminal crimping, and plastic housing threading. |
| Control Method: | Controlled by an industrial computer with Windows 7 operating system. It supports dual input via a touch screen, mouse, and keyboard. |

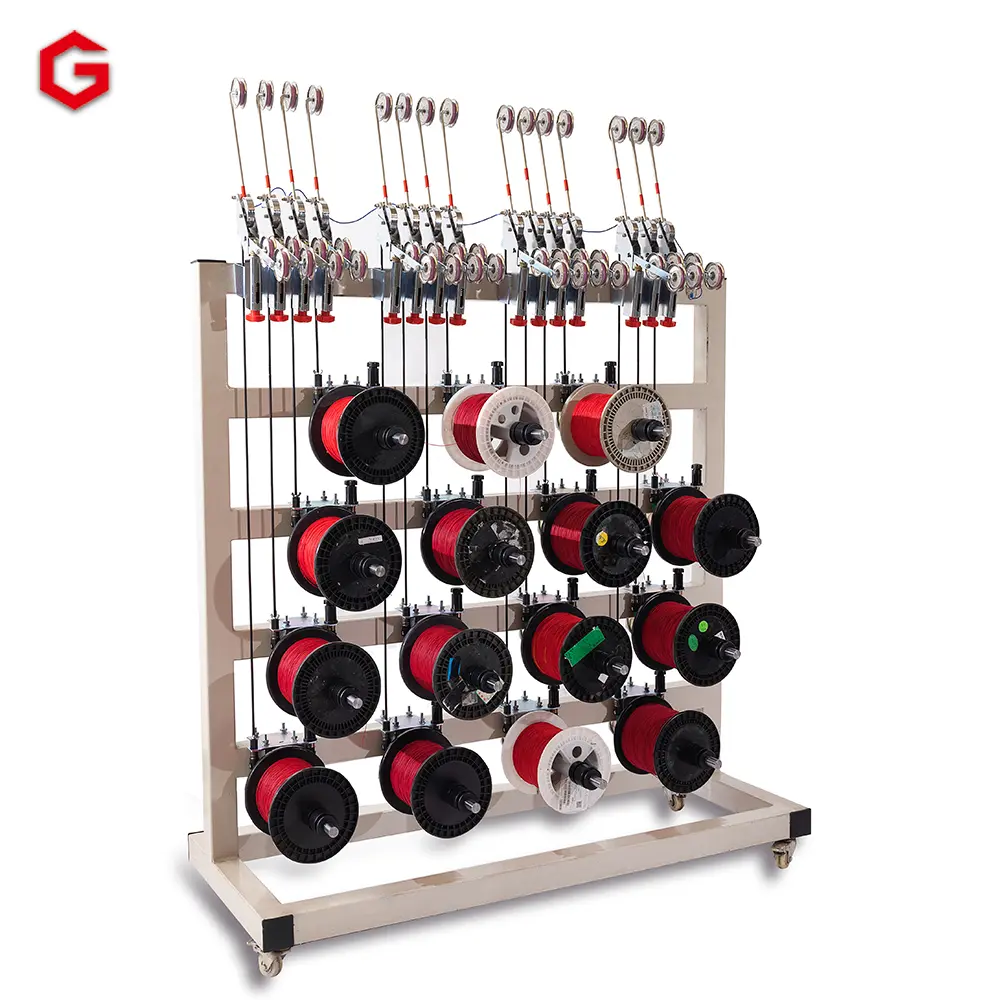

| Wire Pay-off System: | Fully automatic pre-feeding device, suitable for coil-wound wires + spool-wound wires |
| Detection Device: | CCD visual inspection of terminals at both ends A and B, air pressure detection, wire presence/absence detection, terminal presence/absence detection, insertion and extraction force detection for plastic housing threading, and double-end pressure detection |
| Terminal Pressure Detection System: | Dual-channel pressure monitoring (Guanju) |
| Defective Product Handling: | Sorting in the defective product area |
| Compatible Molds: | OTP standard horizontal molds, vertical molds |
| Applicable Plastic Housings: | Applicable to plastic housings with multiple pins and different pin pitches |
| Terminal Crimping Capacity: | 2T ultra-quiet servo terminal machine |
Product parameter
| Power Supply: | 50/60Hz, 220V |
| Processing Length: | 35-600mm (customizable for special lengths beyond 600mm) |
| Wire Gauge Range: | AWG#30-AWG#18, supports multi-specification wires with various colors |
| Terminal Pitch Range: | 1.25-3.96mm |
| Production Capacity: | 1,600-1,800 pcs/hour (subject to actual product testing) |
| Stripping Length: | End A: 1-12.5mm，End B: 1-7mm |
| Cutting Precision: | ±(0.2%×L +1)mm (L = wire length) |
| Air Pressure: | 0.5-0.7MPa (5-7kg/cm²) |
| Dimensions: | Main unit: 2300×1200×1370mm,Matching wire feeder stand: 1400×800×1300mm |
| Weight: | Main unit: ~750kg ±15kg， Matching wire feeder stand: ~150kg |
