Product Introduction

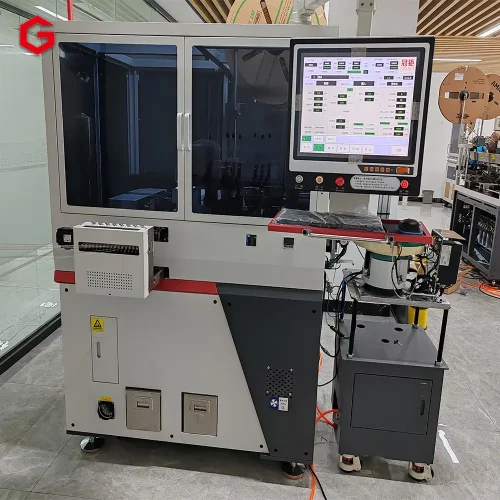

1.This is a fully automatic device with an intelligent design that integrates multiple functions. It allows for arbitrary setting of the wire color and the insertion sequence into the housing. The length of each wire can be individually set to process wires of different lengths.

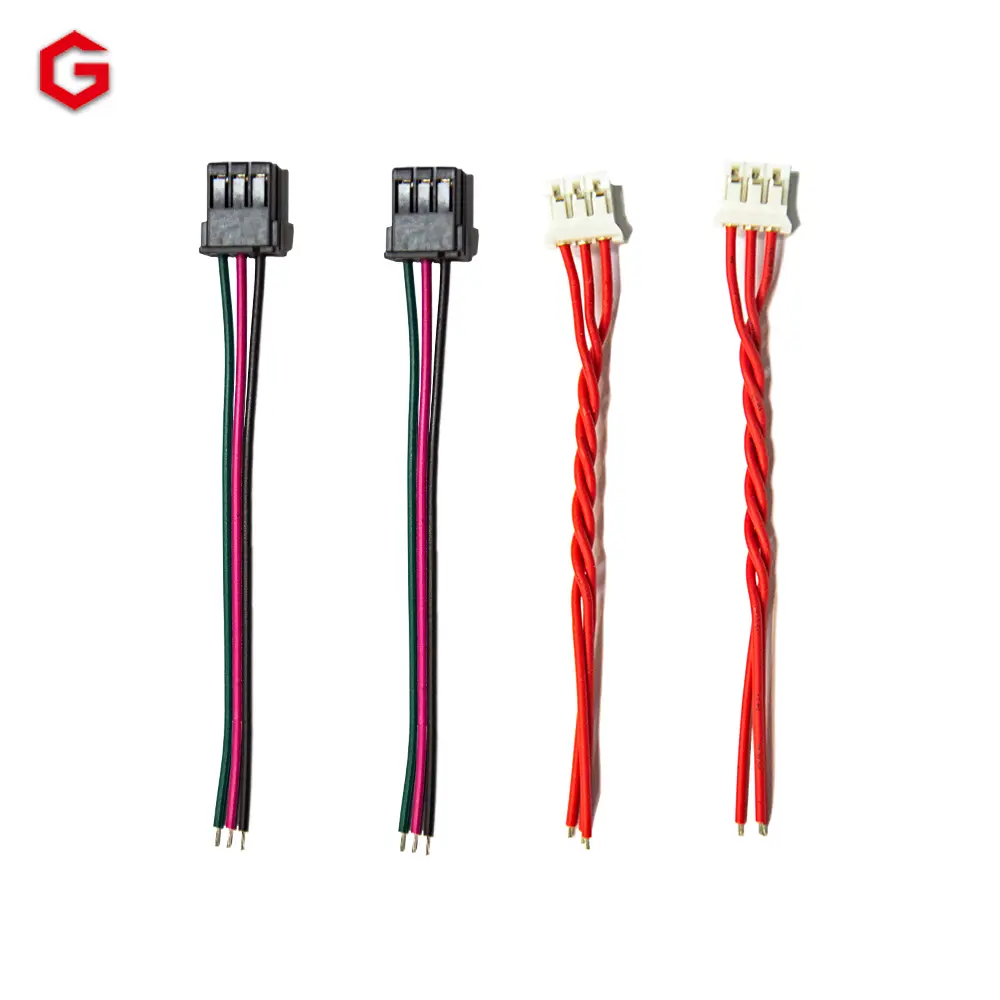

2.crimping and single side housing insertion machine is suitable for various types of wires and multiple kinds of plastic housings, and customization is supported.
3.Equipped with an industrial control computer, the operation data can be retained for traceability. It has multiple detection functions, enabling automatic sorting of defective products, fault alarms, and real-time display of problems.
4.Adopting a modular design, each functional module can be freely turned on or off in the program, enabling quick replacement, upgrading, and maintenance. For different wire harnesses, it can operate efficiently just by replacing the components.
With a compact structural design that incorporates multiple optimized structures, it occupies less space and achieves higher speeds.

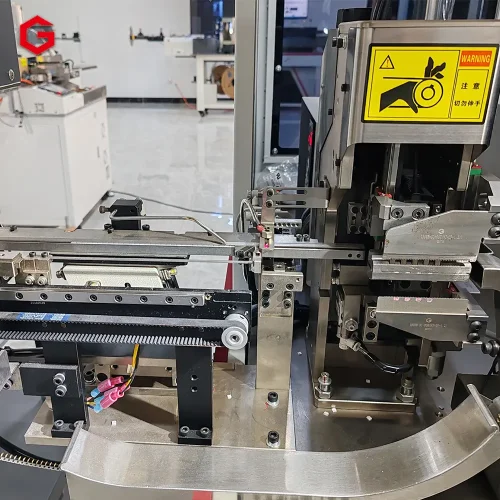

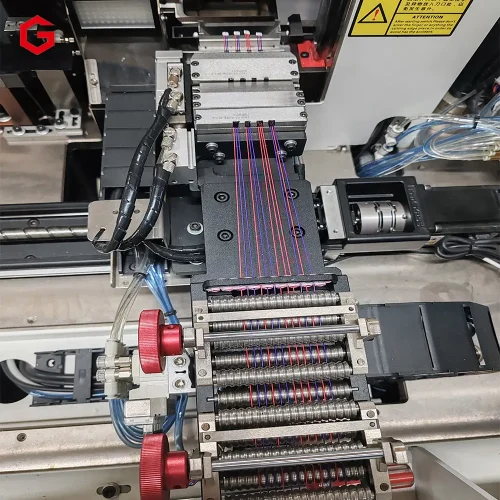

Product Function
| Equipment Name and Model: | GL-1801N Full-automatic Single-end Terminal Crimping and Housing Inserting Machine |
| Main Functions: | Cutting, stripping, twisting and tin dipping of wires at end A; cutting, stripping, twisting and tin dipping of wires at end B (customizable wire twisting function is available) |
| Control Mode: | Controlled by an industrial computer |
| Wire Pay-off System: | Optional tension wire pay-off rack or electric wire pay-off rack |

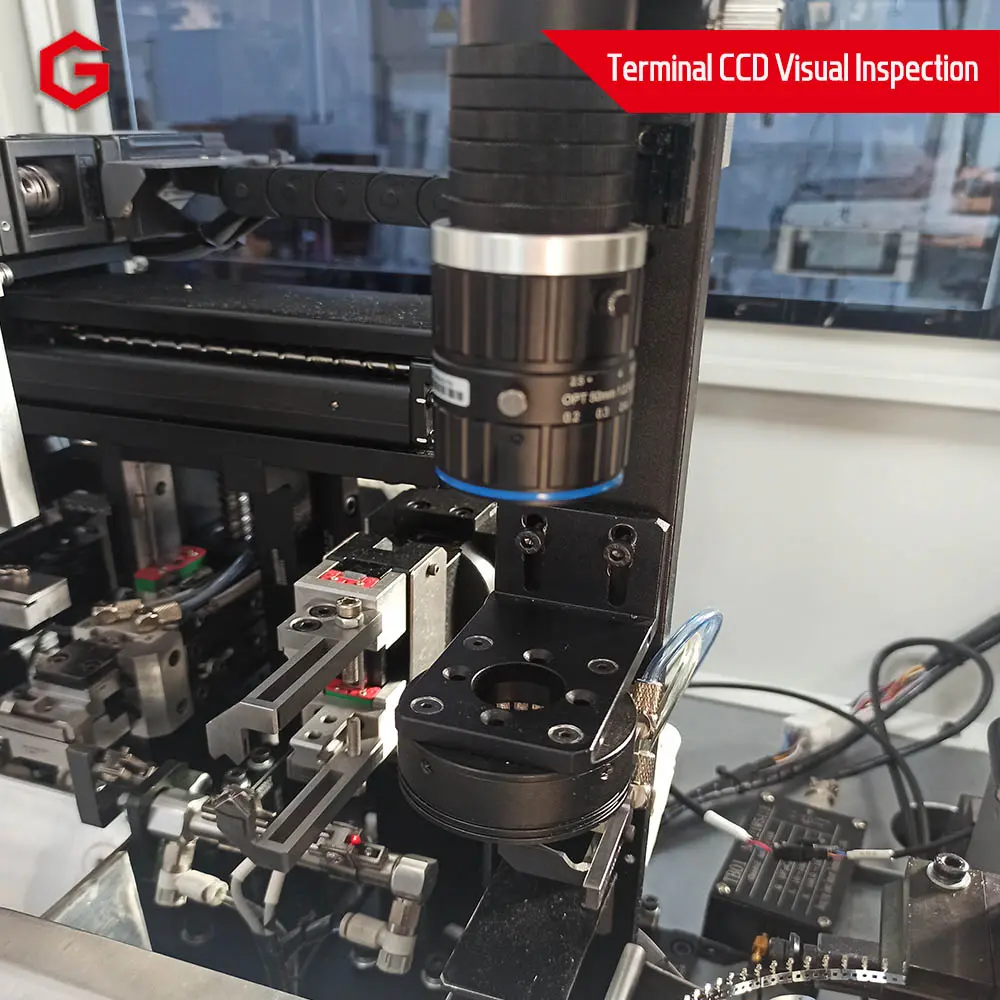

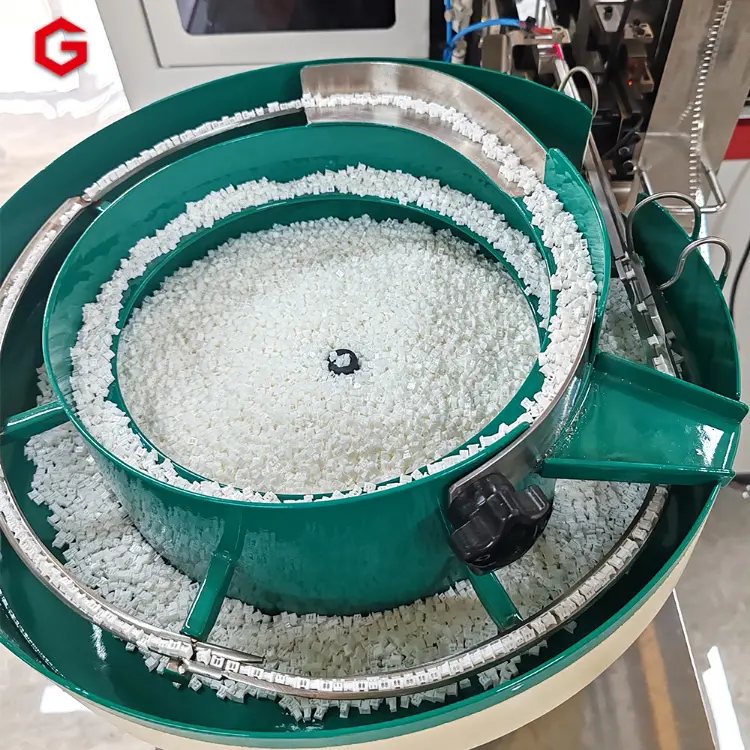

| Detection Device: | CCD visual detection of wire stripping at end A, CCD visual detection of terminals, CCD visual detection of the housing insertion in place, single-end pressure detection, detection of the presence or absence of wires, detection of the presence or absence of terminals, and air pressure detection |
| Terminal Pressure Detection System: | Single-channel pressure monitoring (Guanju) |
| Treatment of Defective Products: | Sorting in the defective product area |
| Applicable Molds: | OTP standard horizontal mold |
| Applicable Housings: | Suitable for housings with multiple pins and different pin pitches |
| Terminal Crimping Capacity: | 2T ultra-quiet servo terminal machine |
Product parameter
| Power Supply: | 50/60Hz, 220V |
| Processing length: | 14-600mm (Special customization is required for lengths exceeding 600mm). The length of the cut wire and the length of the tin dipping at the tail must be consistent. |
| Range of wires for wire processing: | AWG#30 – AWG#18, suitable for wires of various specifications and different colors. |
| Terminal Pitch Range: | 1.25-3.96mm |
| Production capacity: | 300-400 times × Number of Pins per hour Examples: ① For a 2P product * 400 times * 5 groups, that is, 2000 sets of finished products; ② For a 3P product * 400 times * 3 groups, that is, 1200 sets of finished products; ③ For a 4P product * 400 times * 2 groups, 800 sets of finished products; ④ For a 5P product * 400 times * 2 groups, 800 sets of finished products; |
| Stripping Length: | 1-6mm at end A, 1-7mm at end B; |
| Twisting Length: | 2-7mm at end B |
| Tin Dipping Depth: | 1-7mm |
| Cutting Precision: | ±(0.2%×L +1)mm (L = wire length) |
| Air Pressure: | 0.5-0.7MPa (5-7kg/cm²) |
| Dimensions: | Main unit: 1800×1500×2100mm Dimensions of the supporting wire pay-off rack: 1400800*1300mm |
| Weight: | Main unit: 550kg ±15kg， Matching wire feeder stand: ~150kg |

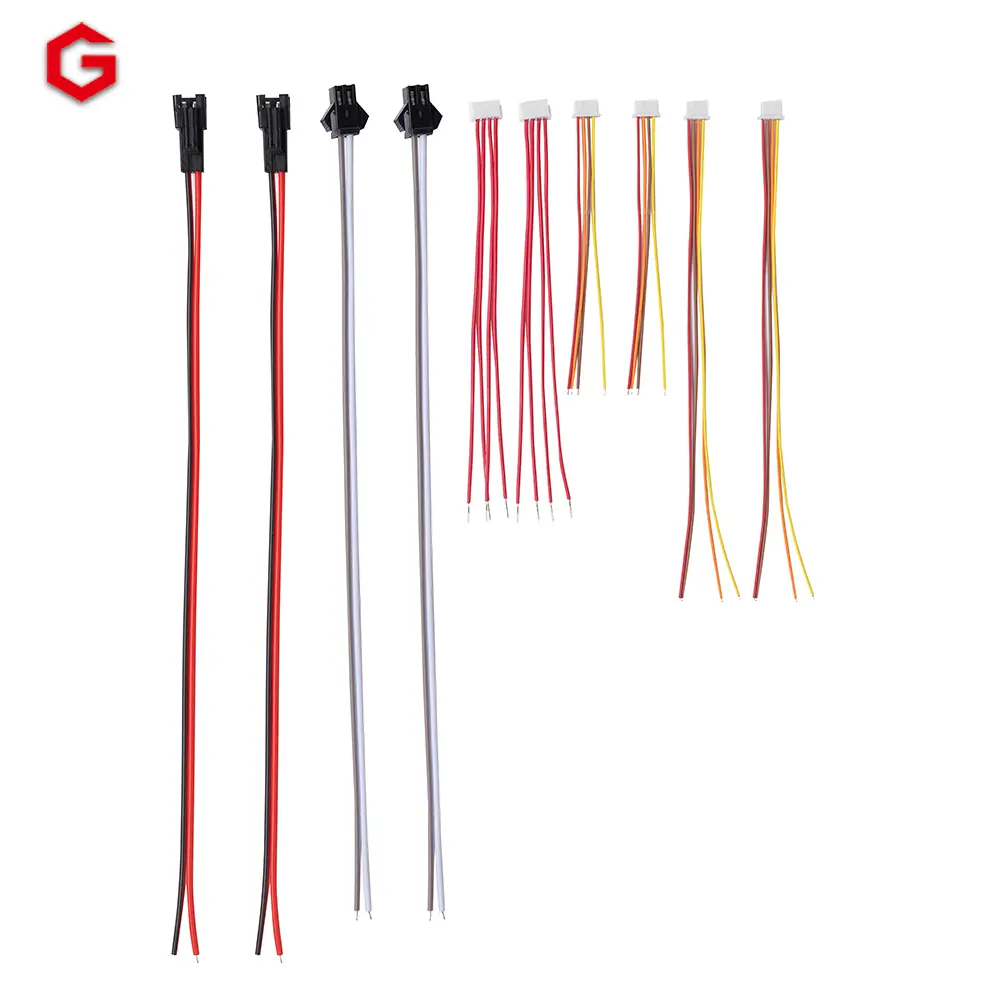

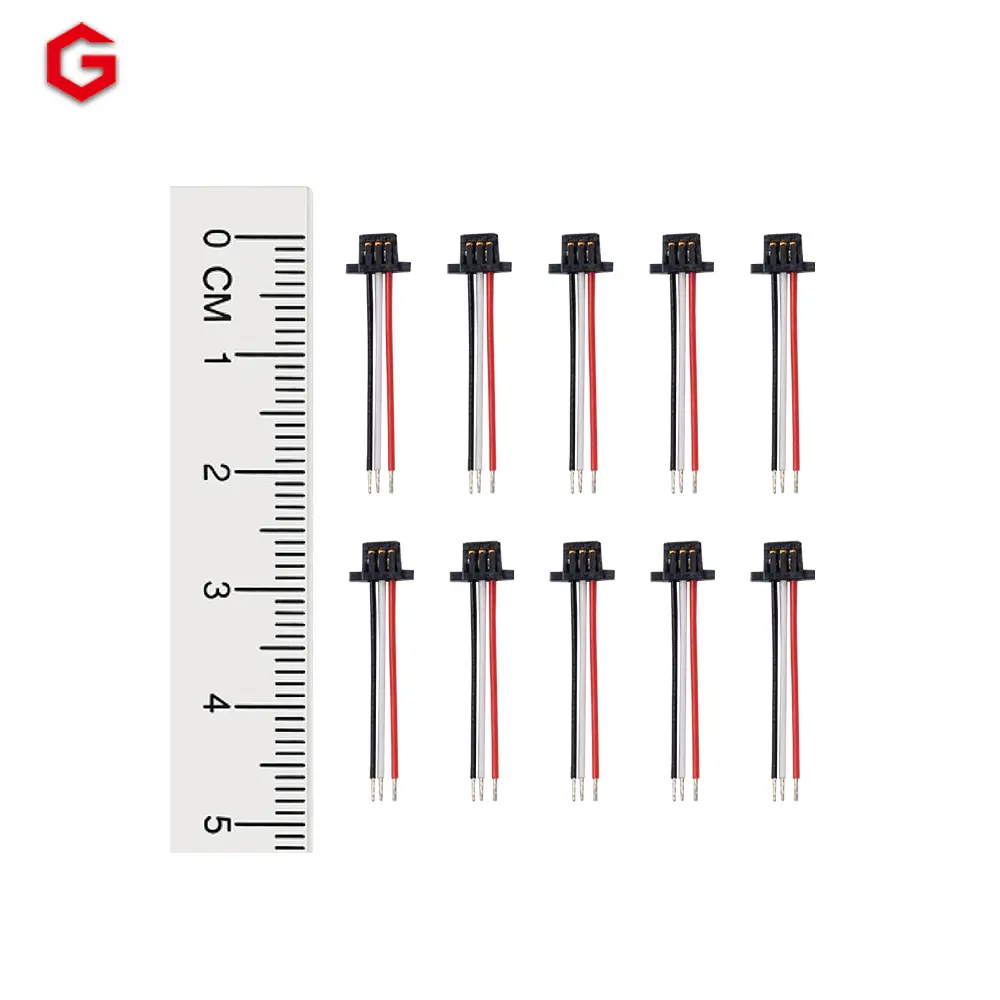

Related Cases
