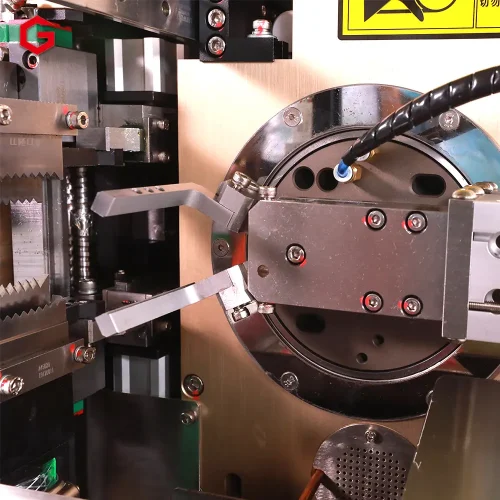

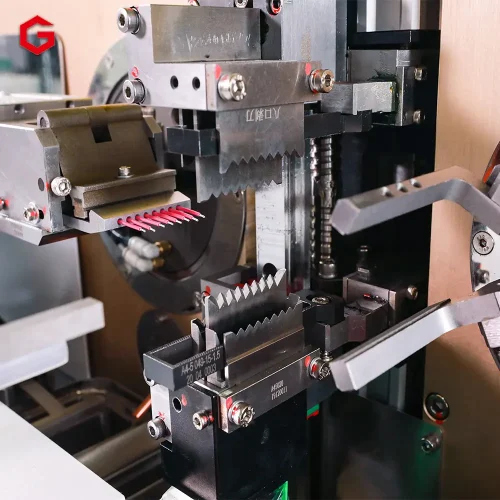

Product Introduction
1.This is a fully automatic device integrating multiple functions. It can process multiple wires at once. A wire – separating function can be optionally installed for processing flat cables, and a wire – twisting function can be added, with customization available.
2.Fully Automatic Dual-head Tinning Machine is controlled by a single – chip microcomputer, and multiple values can be set. It has a fault – alarm function and can display problems in real – time.
3.It adopts a modular design, enabling quick replacement, upgrade, and repair. For different wire harnesses, it can operate efficiently by replacing components.
4.It features a compact structure and an exquisite appearance, taking up less space.
Product Function
| Device Name and Model: | GL-01A Fully Automatic Dual-head Tinning Machine |
| Main Functions: | Cutting, stripping, twisting, and tinning of wires at both ends (A and B), automatic feeding of solder wire, and built-in automatic smoke extraction. |
| Control Method: | Human-machine interface + microcomputer adjustment. |
| Detection Devices: | Wire absence detection, air pressure detection. |
Product parameter
| Power Supply: | 50/60Hz, 220V Single Phase |
| Processing Length: | 10mm～600mm (600-1500mm customizable) |
| Wire Processing Range: | AWG#16～AWG#32, capable of processing double parallel wires and ribbon cables |
| Production Capacity: | 22#AWG-32#AWG: 1～8 wires, output approximately 9000～11000 pieces/hour |
| 20#AWG-18#AWG: 1～5 wires, output approximately 4000～5500 pieces/hour | |
| 18#AWG-16#AWG: 1～3 wires, output approximately 2700～3000 pieces/hour | |
| Stripping Length: | 0～20mm |
| Twisting Length: | 3～20mm |
| Tinning Length: | 0～20mm |
| Cutting Accuracy: | ±(0.2%L+1)mm |
| Air Pressure: | 0.5-0.7Mpa (5-7KG/cm³) Compressed air connection 0.4 – 0.6 MPa |
| Dimensions: | 1210*770*1370mm; Dimensions of the supporting wire rack: 920*560*1300mm |
| Weight: | Approximately 380KG±15KG |

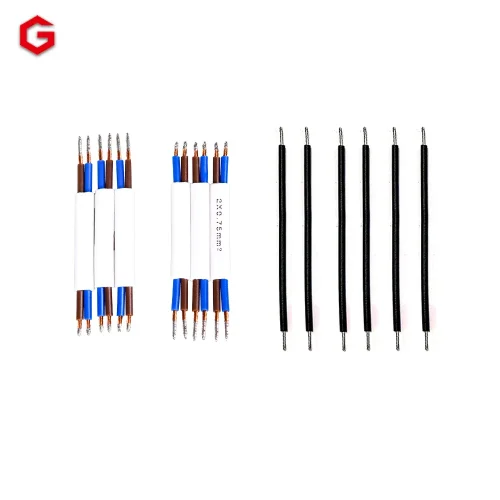

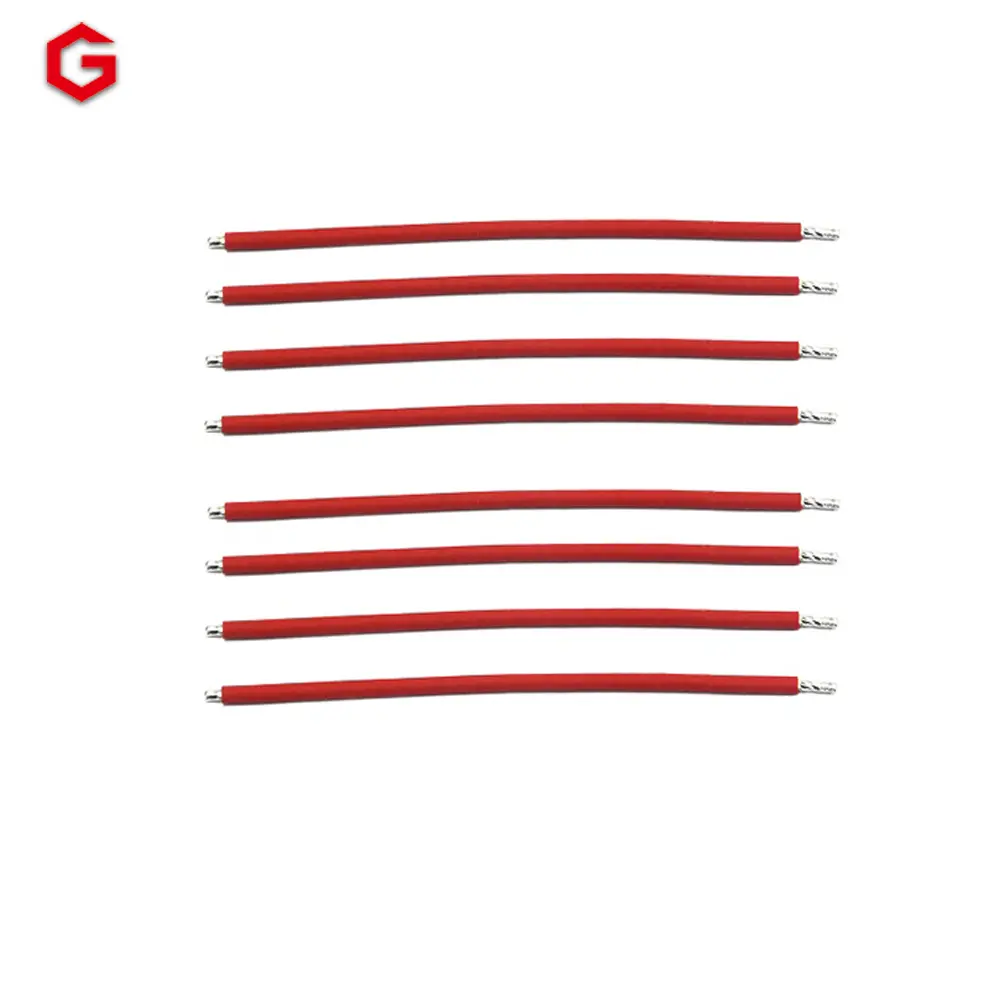

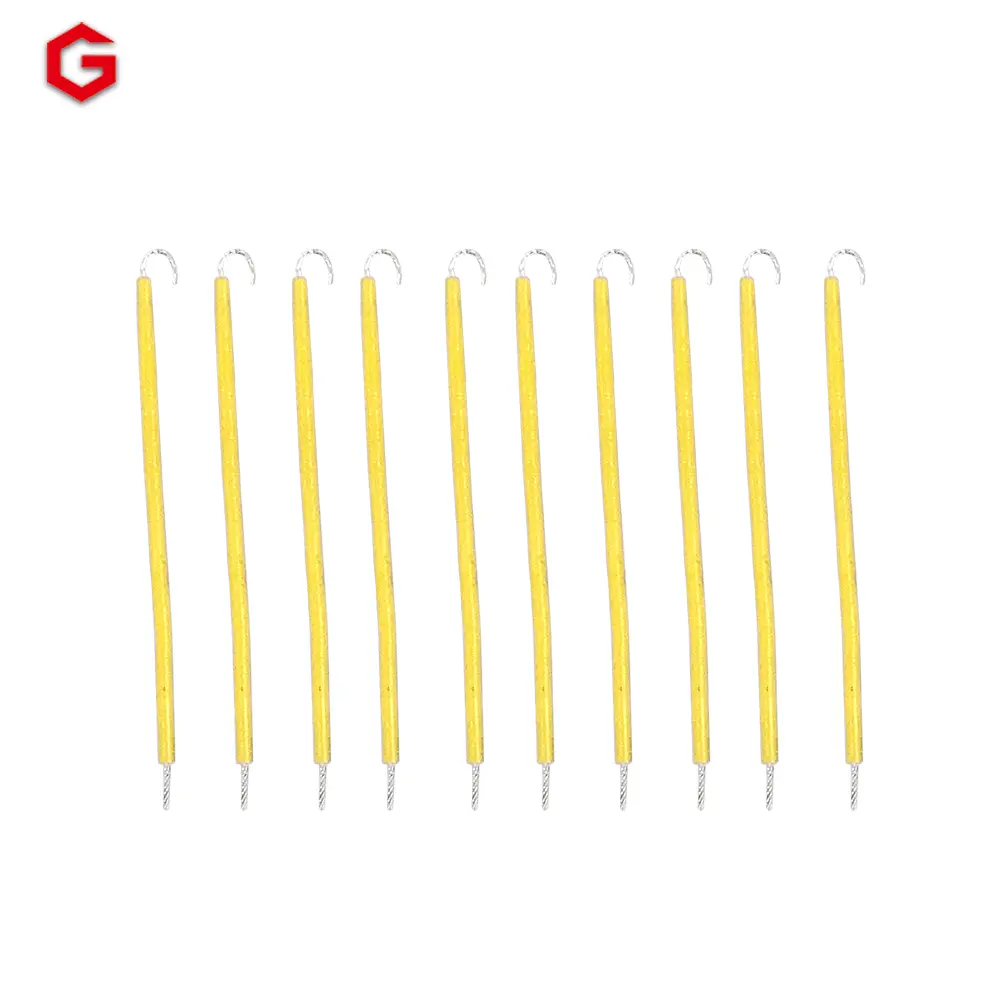

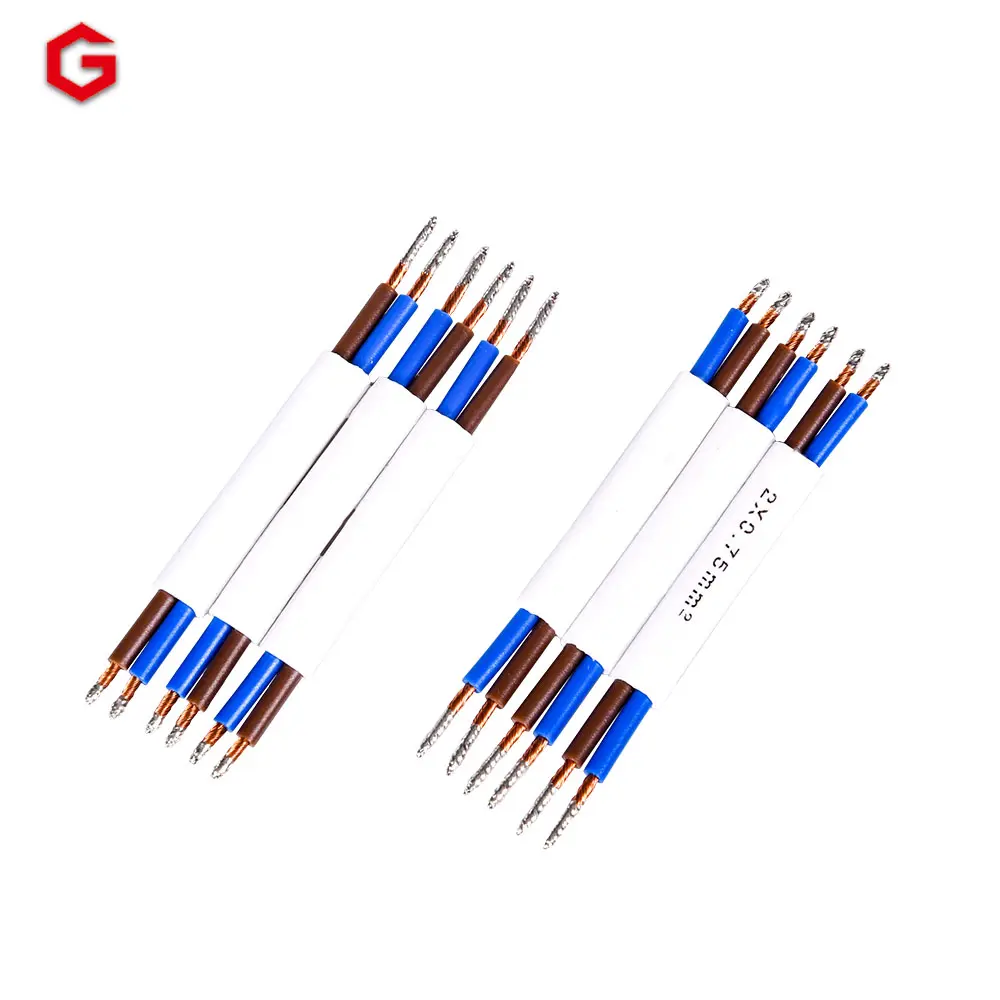

Related Cases

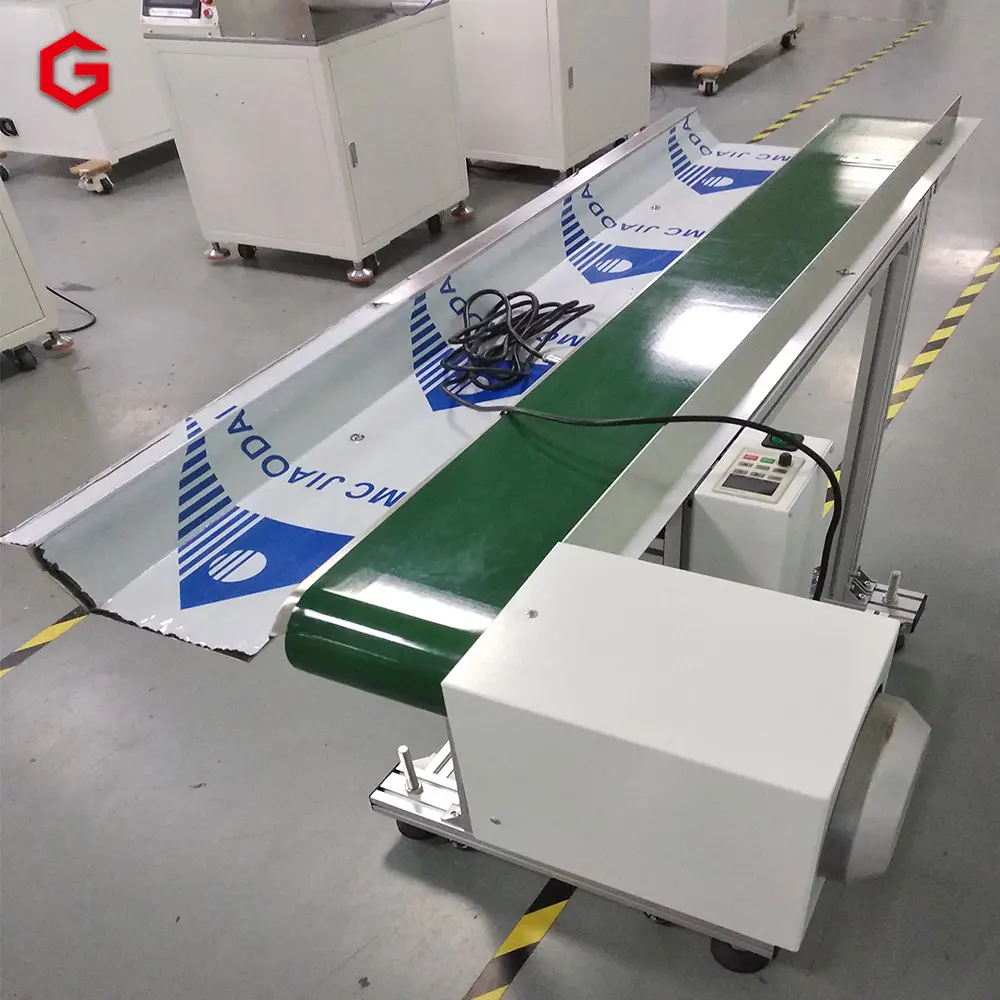

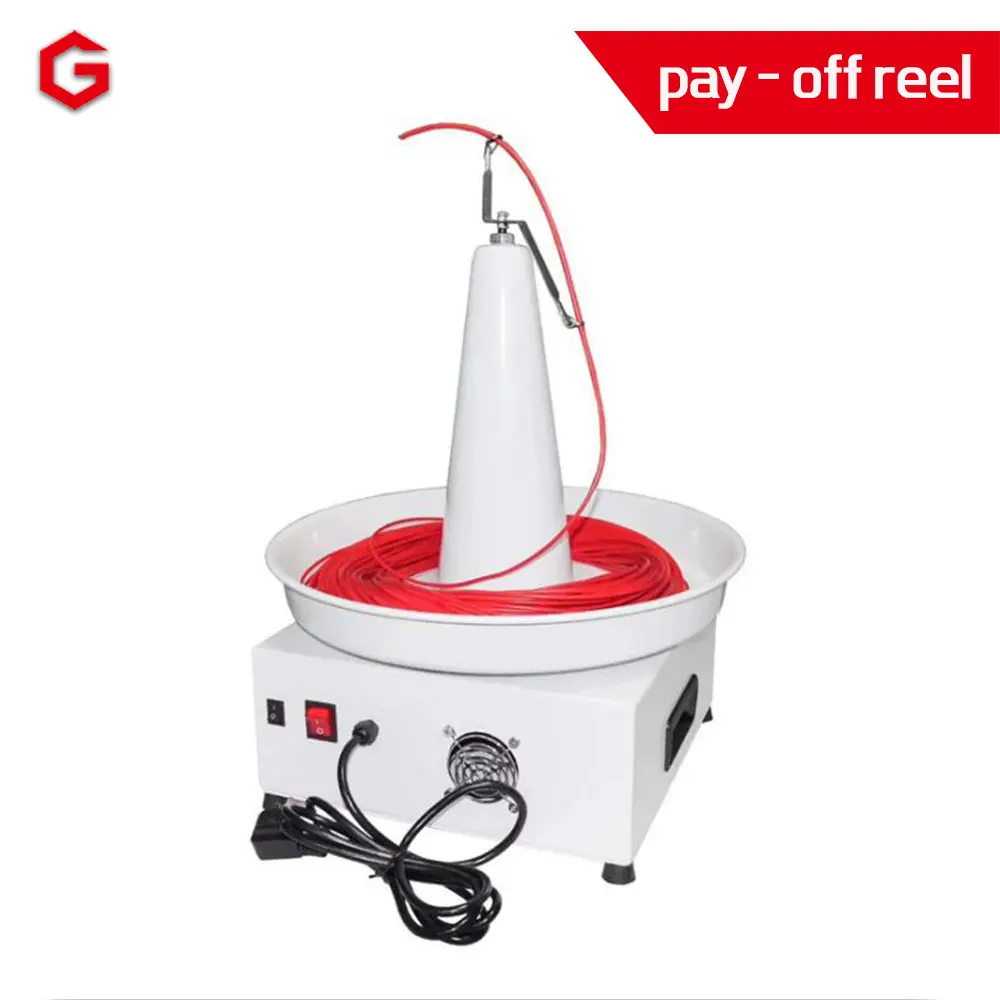

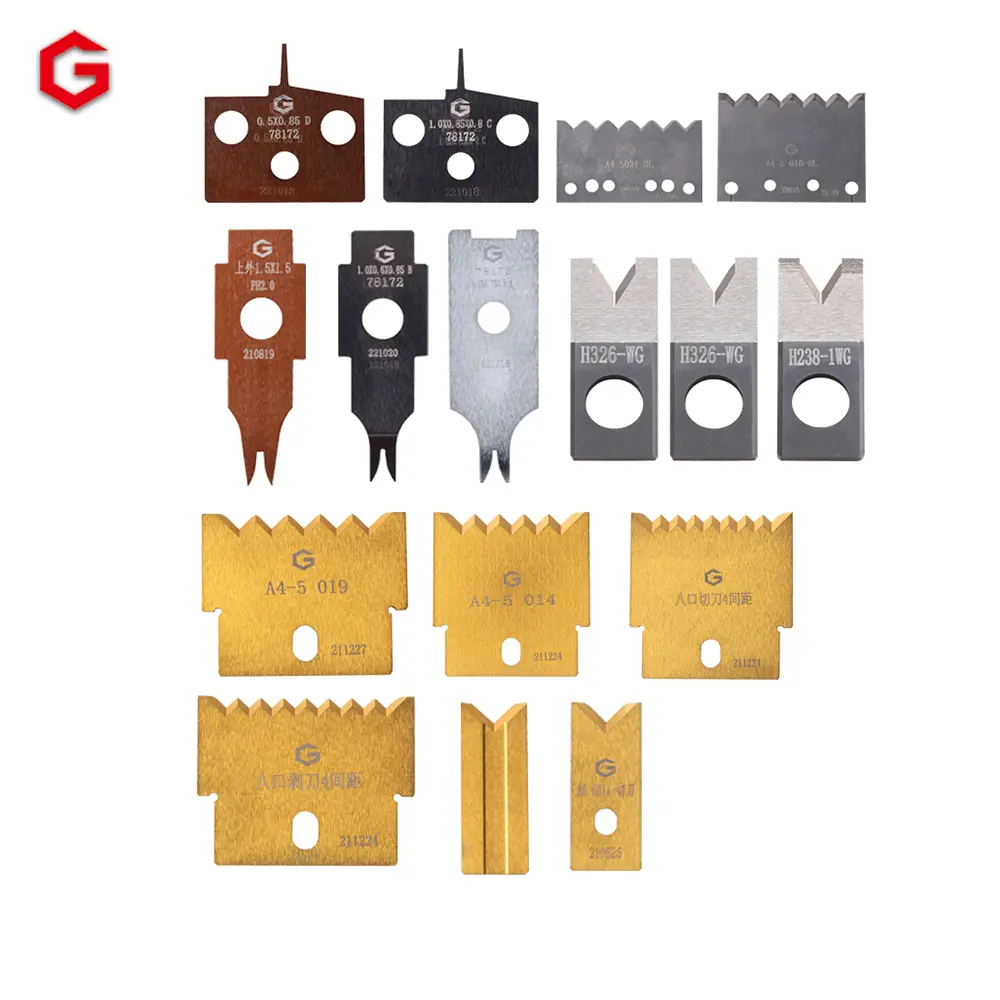

Auxiliary Expansion Device
