Product Introduction

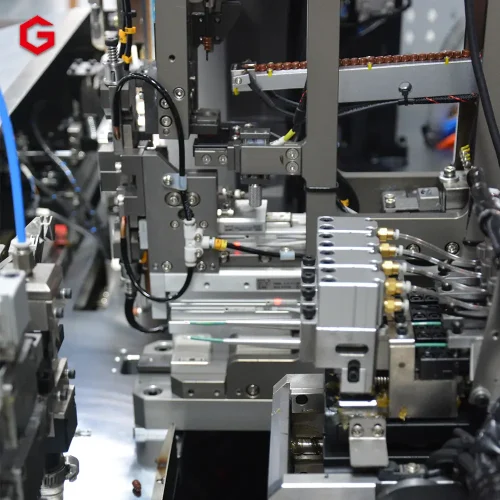

1.The full-automatic single-head crimping and inserting rubber housing machine can completely execute the entire process of wire cutting, wire stripping, terminal crimping and inserting into the rubber housing at end A, as well as wire cutting, wire stripping and tin dipping at end B. It can arbitrarily set the color of the wires and the inserting sequence into the housing. The length of each wire can be individually set to process long and short wires. It can process multiple layers of rubber housings of different specifications and supports customization.
2.Operated via industrial PC with operation data storage and traceability, it integrates multiple detection functions including automatic defective product rejection, malfunction alarms, and real-time fault display.

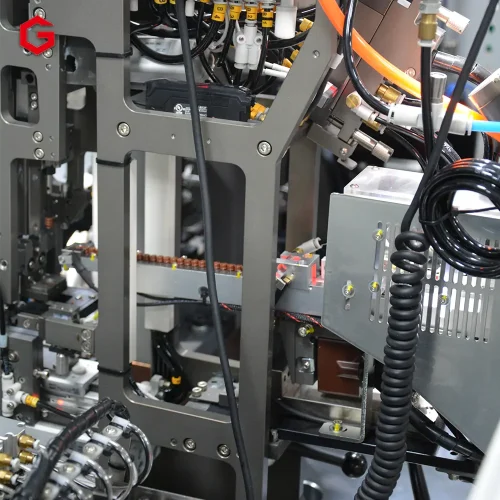

3.Featuring a compact structural design that incorporates multiple optimized mechanisms, the machine achieves smaller footprint and higher operating speeds. Its modular design allows
4.individual functional modules to be enabled/disabled via software, facilitating rapid component replacement, upgrades, and maintenance. Switching components for different harness configurations ensures efficient operation.
Product Function

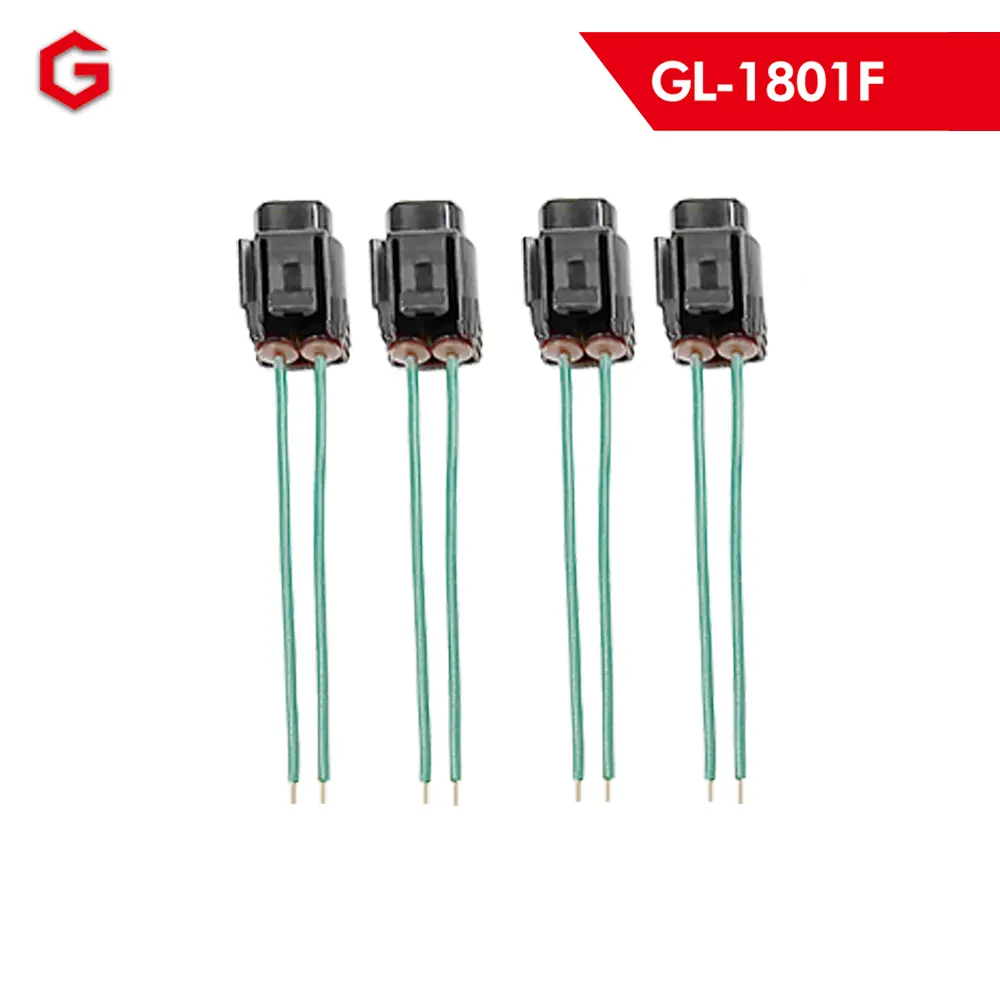

| Device Name and Model： | GL-1801F Single-End Waterproof Plug Threading and Single-End Plastic Housing Insertion Machine |
| Main Functions： | At end A: Wire cutting and stripping, terminal crimping or tinning. At end B: Wire cutting and stripping, waterproof plug threading, terminal crimping, terminal CCD inspection, single-end plastic housing threading, and it can process wires of different lengths. |
| Control Method： | Controlled by an industrial computer with Windows 7 operating system. |
| Wire Pay-off System： | Electric wire pay-off rack, suitable for spool-wound wires (coil-wound wires) |

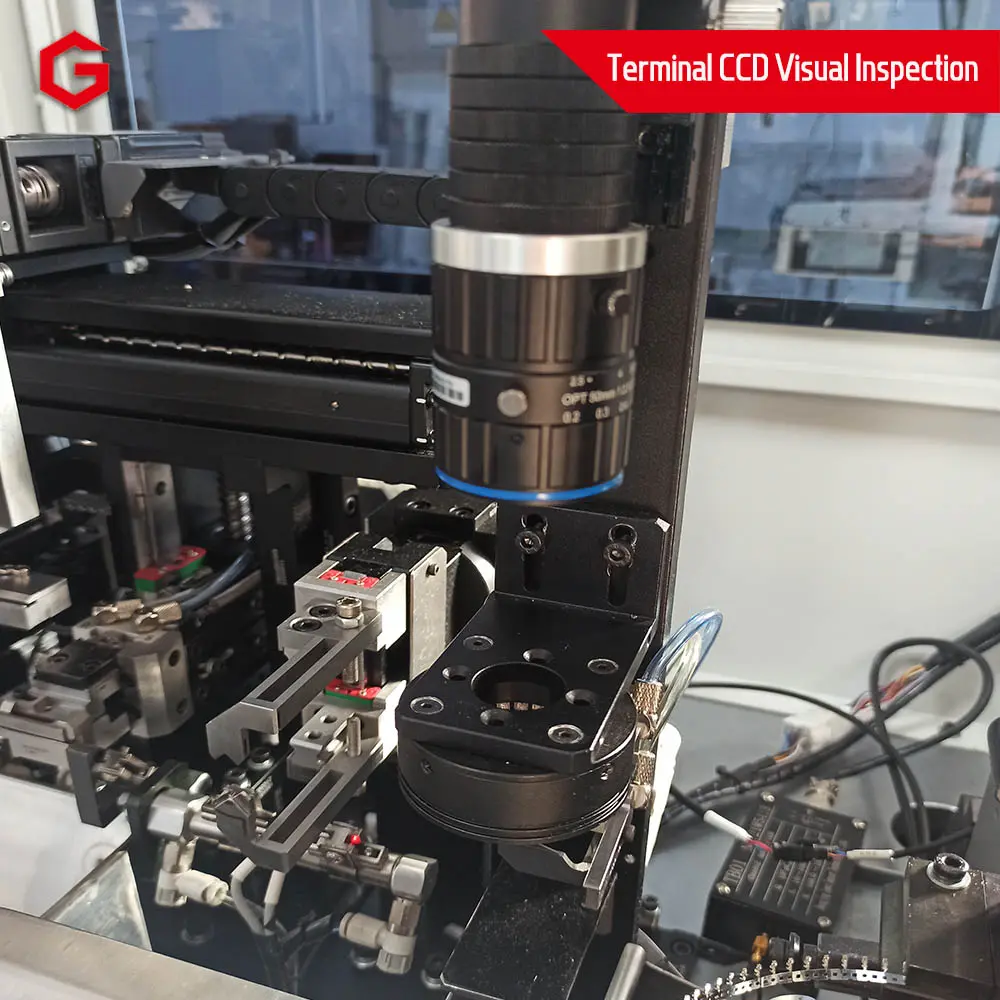

| Detection Device： | “CCD visual inspection of terminals at end B, air pressure detection, wire presence/absence detection, terminal presence/absence detection, insertion and extraction force detection for plastic housing threading, and single/double-end pressure detection |

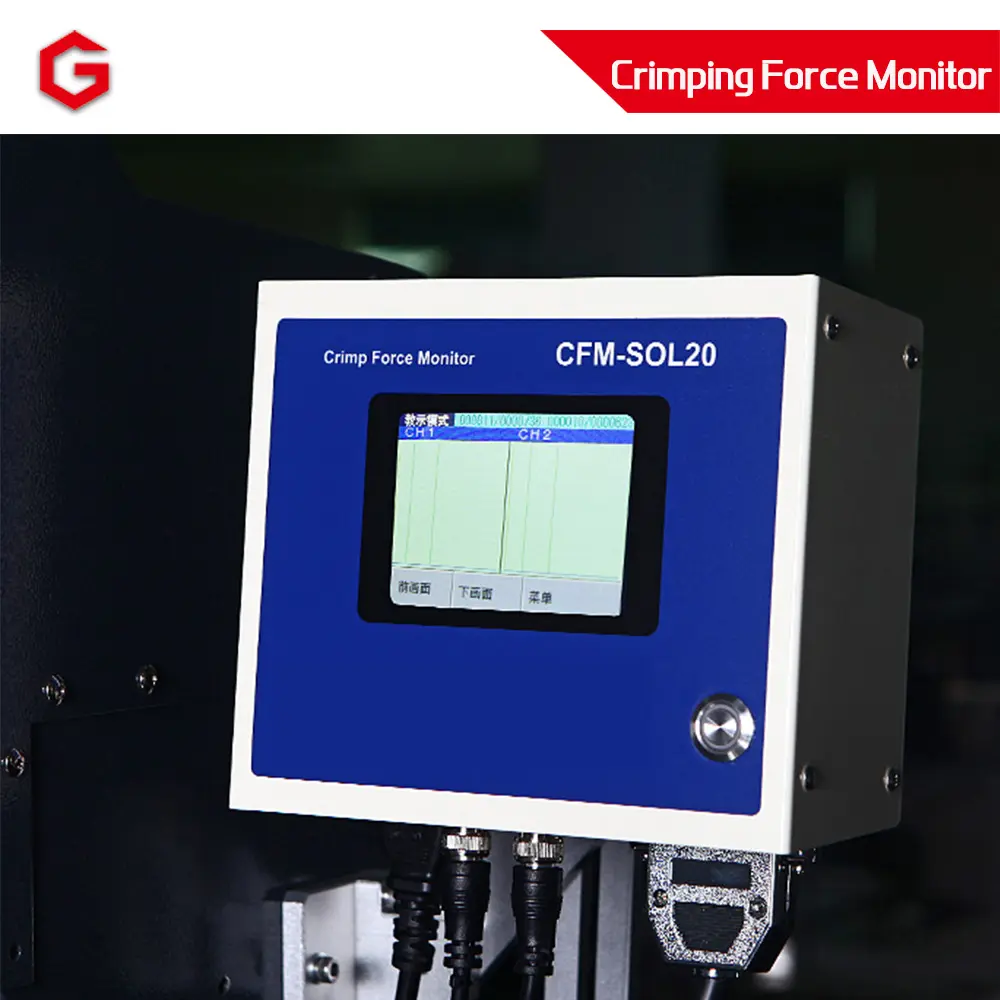

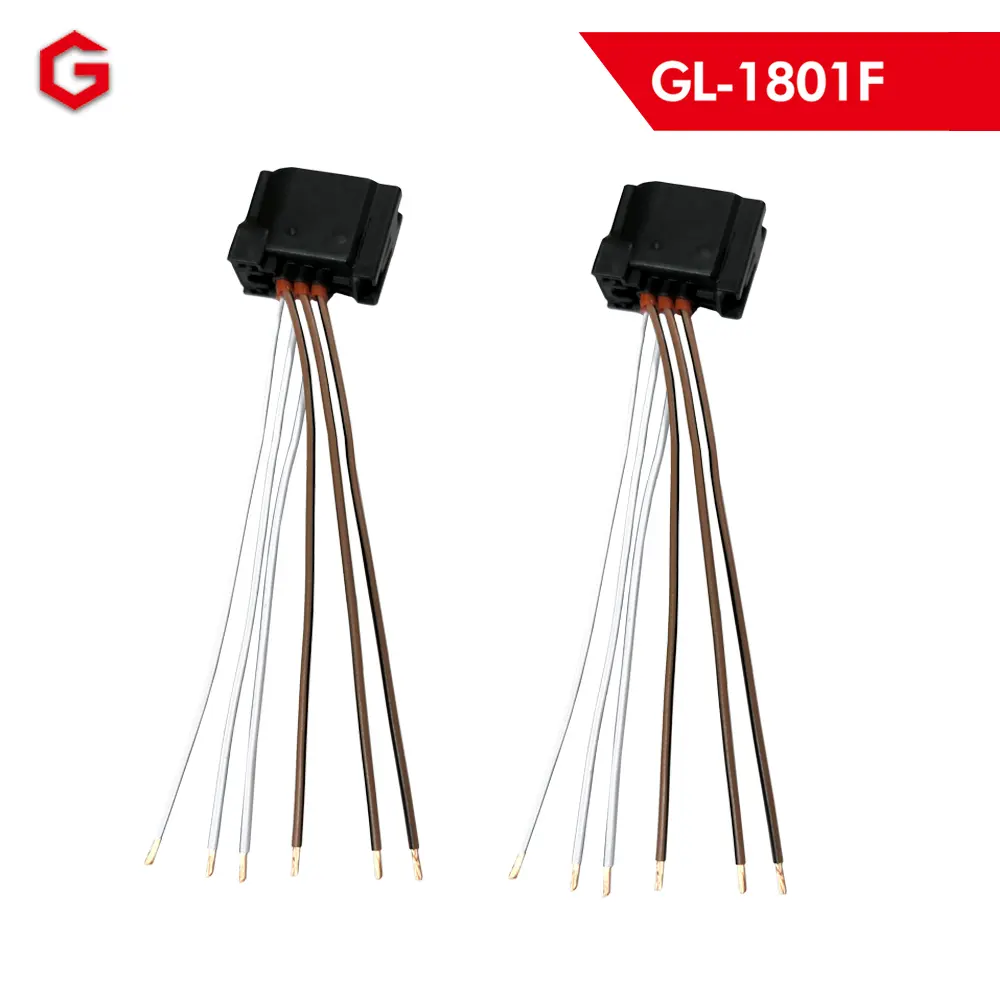

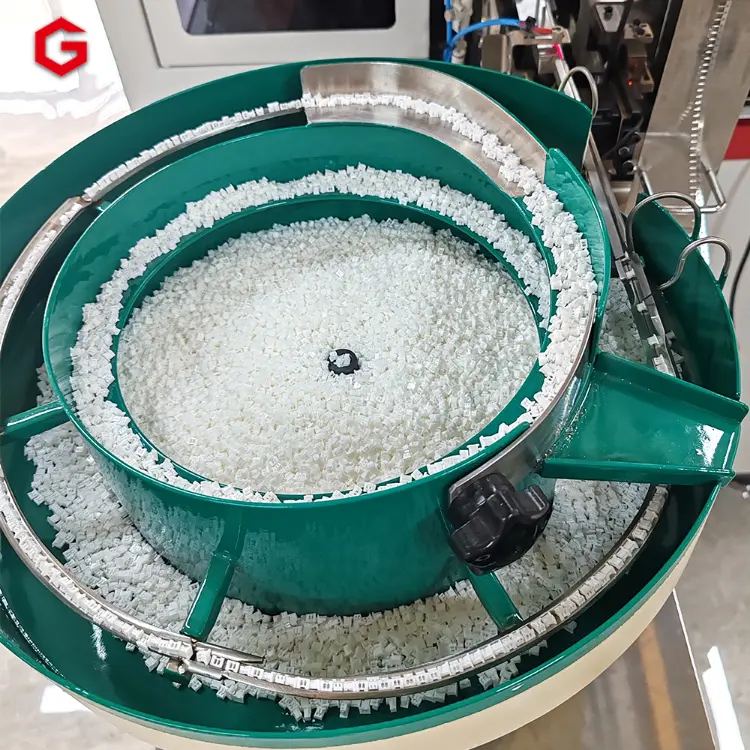

| Terminal Pressure Detection System： | Dual-channel pressure monitoring (Guanju) |
| Defective Product Handling： | Sorting in the defective product area |
| Compatible Molds： | OTP standard horizontal molds |
| Applicable Plastic Housings： | Applicable to plastic housings with multiple pins and different pin pitches |
| Terminal Crimping Capacity： | Ultra-quiet servo terminal machine |
Product parameter
| Power Supply: | Single-phase, 220V, 50/60HZ |
| Processing Length： | 40 – 600mm (Customization is available for lengths exceeding 600mm) |
| Wire Processing Range： | AWG#30 – AWG#18, suitable for wires of various specifications and 4 colors |
| Processable Terminal Spacing： | 1.25 – 3.96mm |
| Production Capacity： | Terminal crimping at end A and terminal crimping and plastic housing insertion at end B: When the processing wire length is 100mm, 1,400 – 1,600 pieces per hour. |
| Wire stripping at end A and waterproof plug threading, terminal crimping and plastic housing insertion at end B: When the processing wire length is 100mm, 1,000 – 1,200 pieces per hour. | |
| Stripping Length： | End A: 1 – 12.5mm, End B: 1 – 7mm |
| Cutting Precision： | ±（0.2%*L + 1）mm |
| Air Pressure: | 0.5-0.7Mpa (5-7KG/m³) |
| External Dimensions: | 2700*2000*2100mm |
| Weight： | Approximately 750KG ± 15KG. The weight of the supporting wire pay-off rack is approximately 150KG. |
