Product Introduction

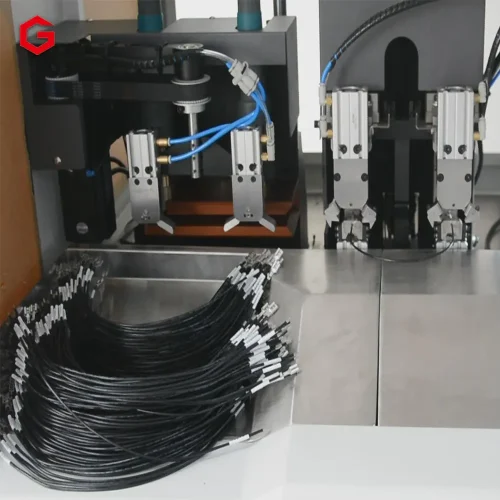

1.Automatic Connector Wire Harness Assembly Machine.is a fully automatic device integrating multiple functions. With a linear assembly line station design, the processing process is smoother and faster.

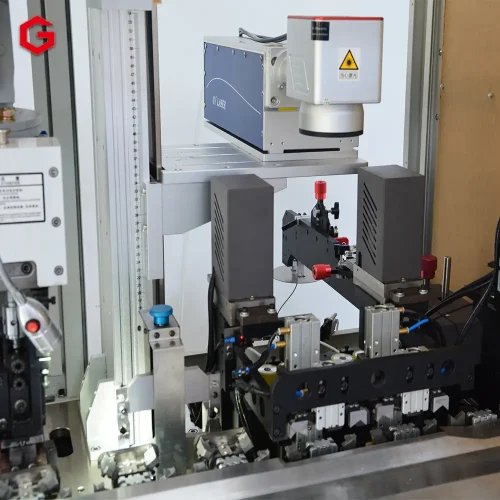

2.The automatic heating device shrinks the heat shrink tube in place. The functions of laser marking or inkjet printing can be optionally configured.
3.An industrial control computer is adopted, and multiple values can be set. The operation data can be retained for traceability. There is a fault alarm function, which can display problems in real time. Defective products are automatically sorted.
4.Adopting a modular design, each functional module can be freely turned on or off in the program, enabling rapid replacement, upgrading, and maintenance. For different wire harnesses, the device can operate efficiently just by replacing components.

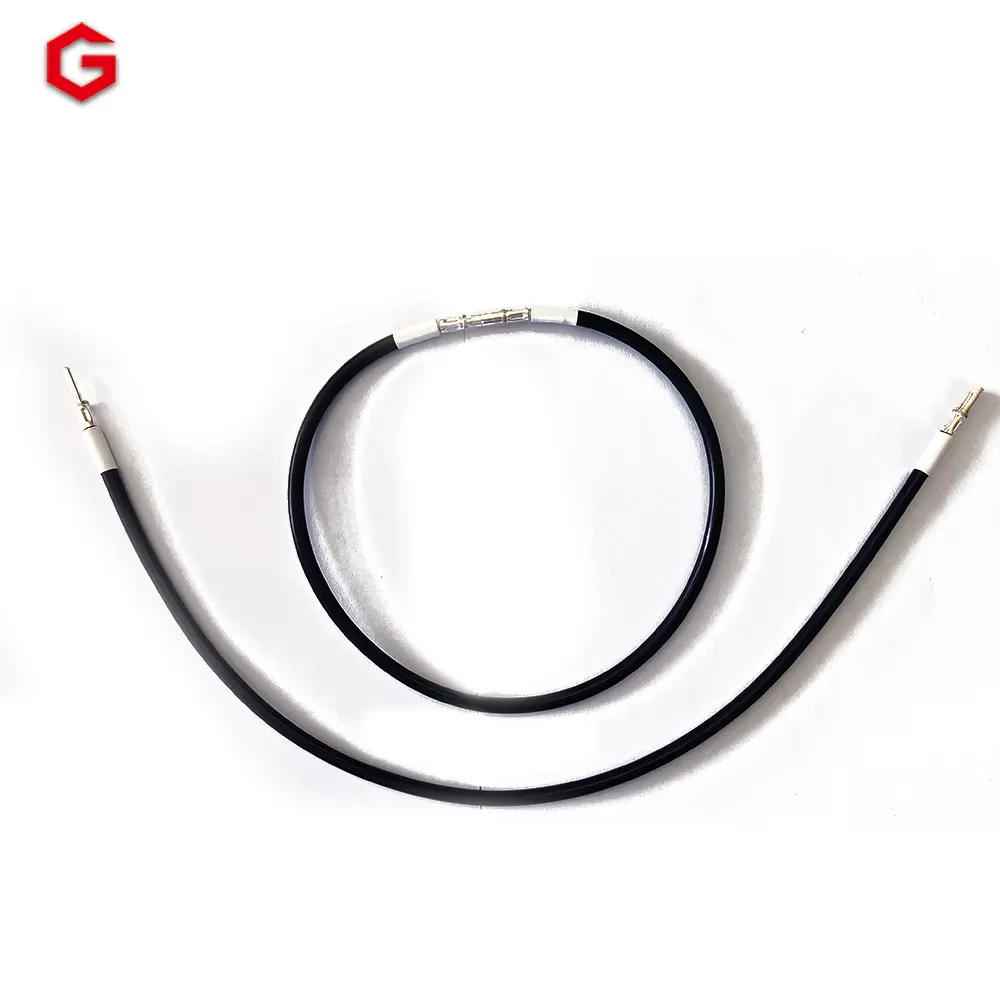

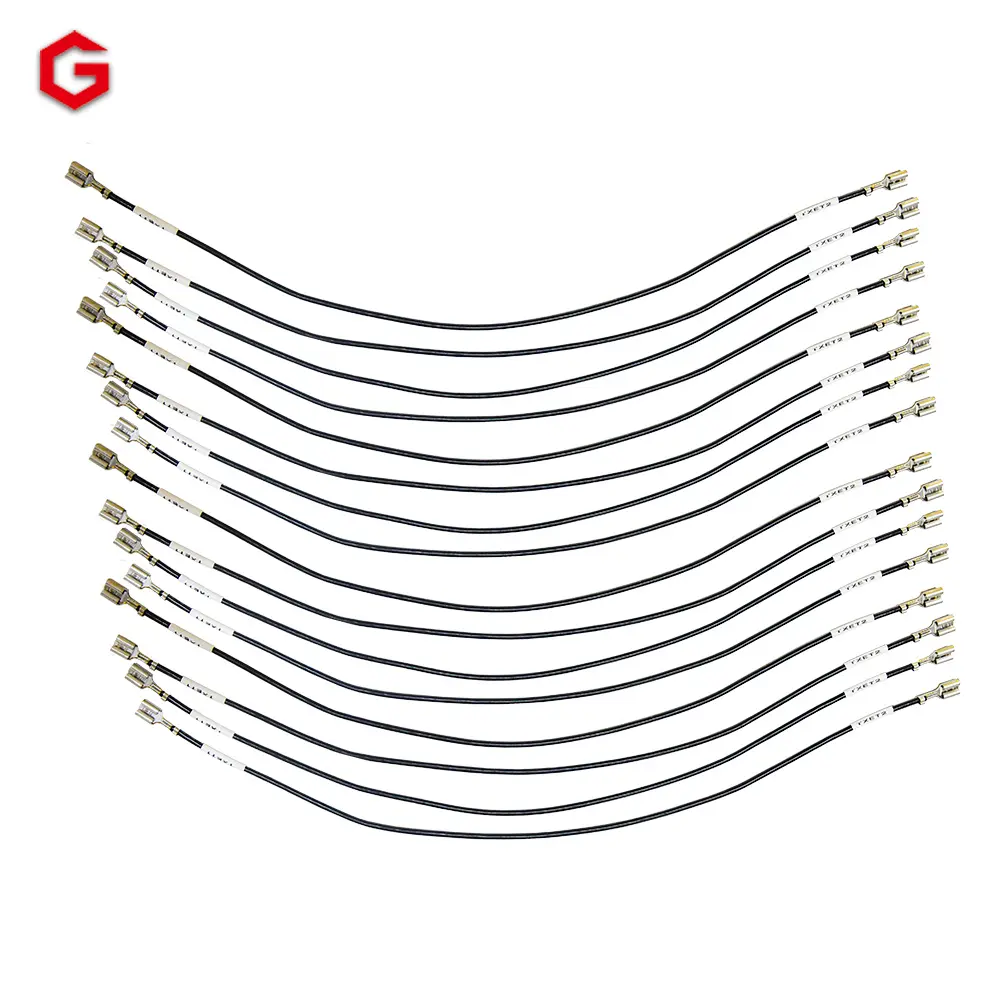

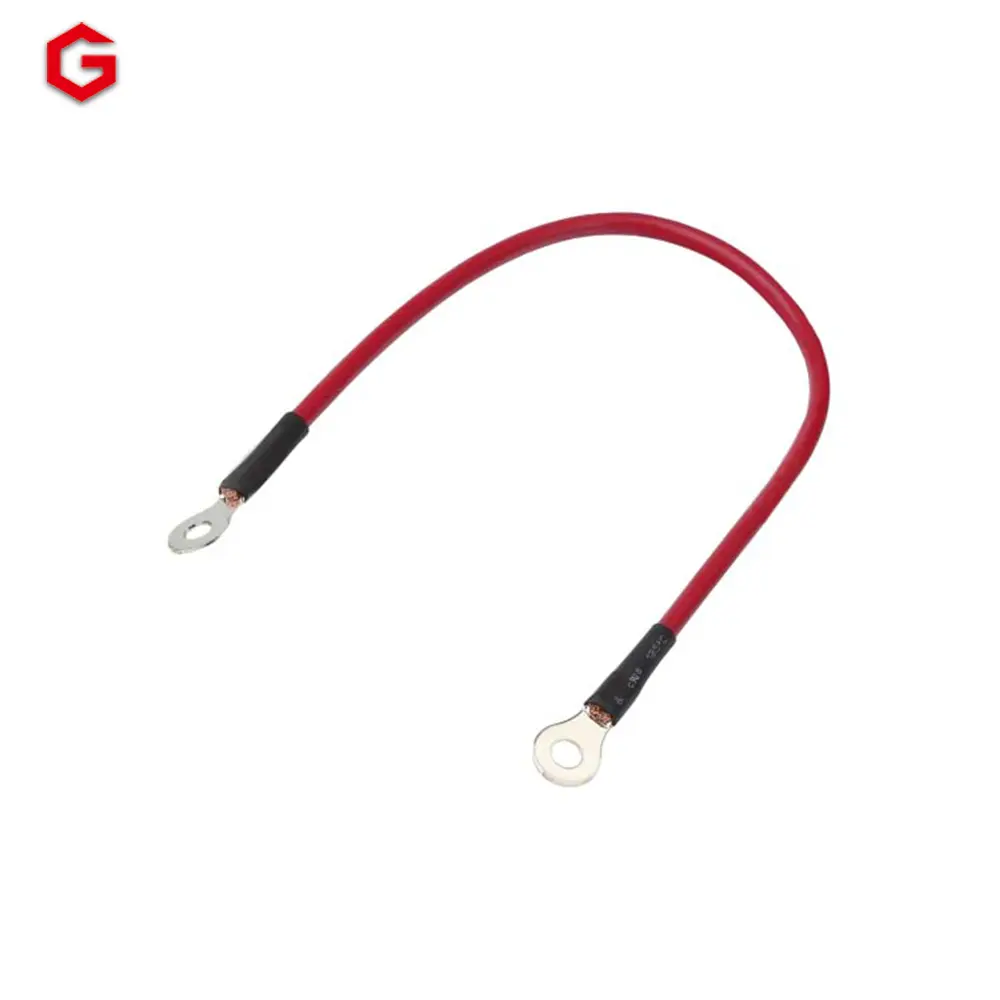

5.Two-end Crimping and Double-end Tube Insertion and Printing machine.has a compact structure and an exquisite appearance, occupying less space.
Product Function
| Device Name and Model： | GL-02UP Fully Automatic Double-End Tube Threading and Printing Machine |
| Main Functions： | Double-end crimping, tube threading, printing, and positioning heat shrinkage |
| Control Method： | Human-machine interface + computer industrial control |
| Printing Method： | Optional ribbon printing or laser printing |

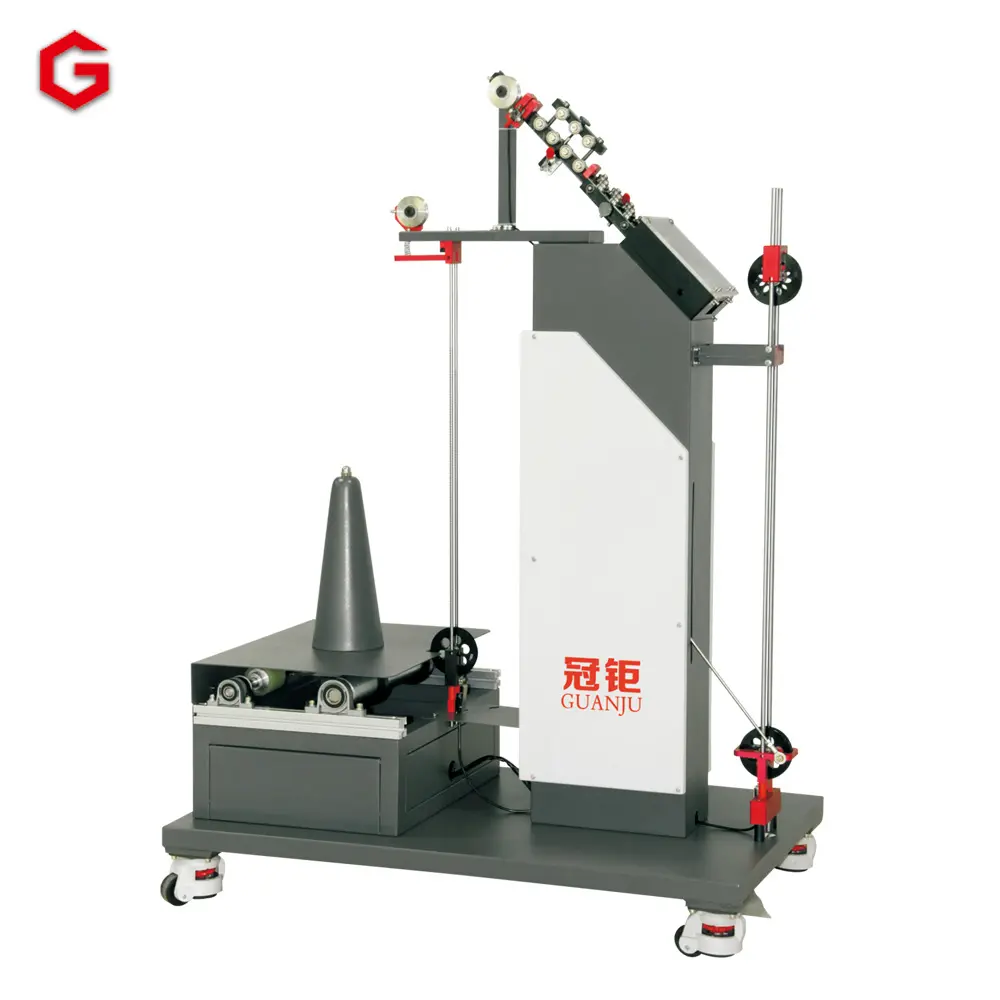

| Wire Pay-off System： | Computerized fully automatic pre-feeding device, suitable for coil-wound wires + spool-wound wires |
| Detection Device： | Alarms for terminal presence/absence, wire knotting, wire shortage, air pressure detection, and presence/absence of number tubes |
| Terminal Detection System： | Optional additional installation: Pressure detection + CCD visual inspection |

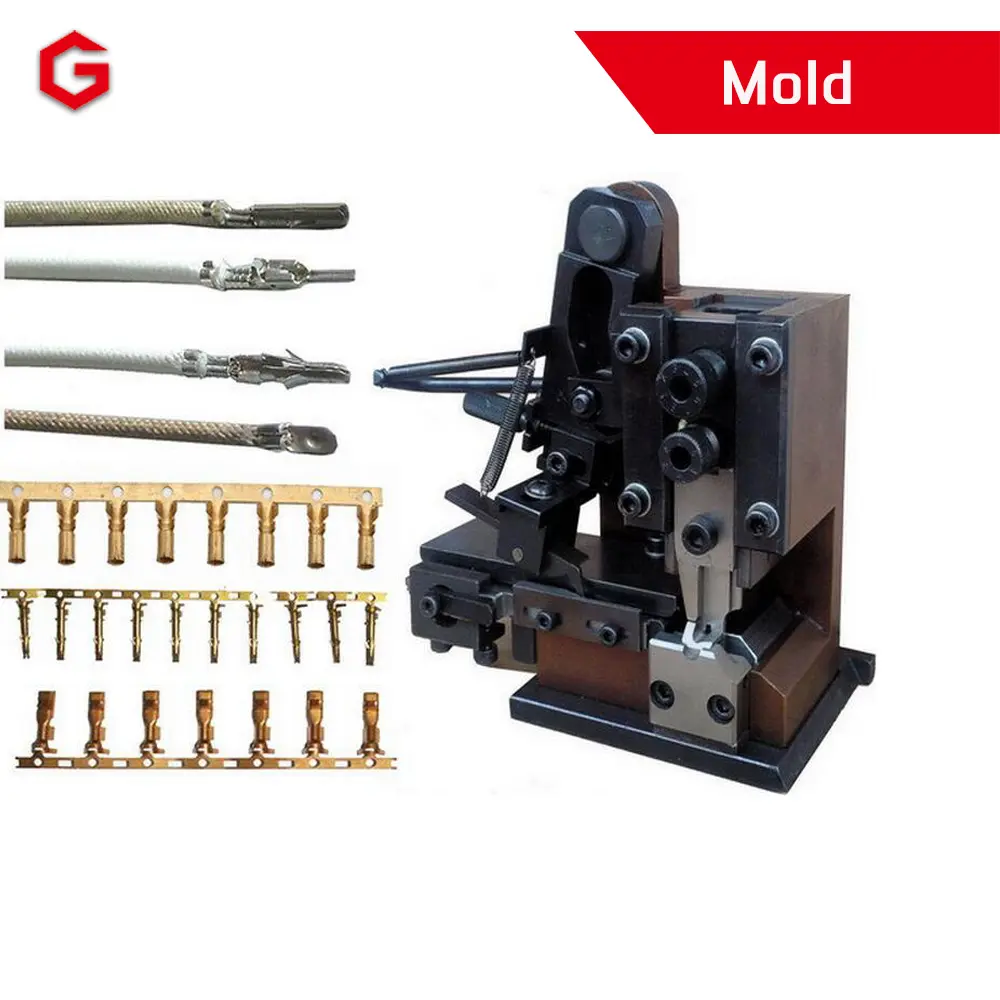

| Compatible Molds： | OTP standard horizontal molds, vertical molds, and flag-shaped molds |
| Terminal Crimping Capacity： | 3T ultra-quiet variable-frequency terminal machine |
Product parameter
| Power Supply: | 50/60Hz, 220V |
| Processing Length： | Wire cutting length: 300mm – 9999mm Heat shrink positioning: 0 – 30mm Heat shrink tube length: 10 – 30mm Outer diameter of heat shrink tube: 2.5 – 6mm |
| Wire Gauge Range: | AWG#12-AWG#28 |
| Terminal Processing Range： | Conventional terminals |
| Production Capacity： | Approximately 1400 – 1800 pieces per hour (wire feeding length is 300mm) |
| Stripping Length： | End A: 0 – 15mm, End B: 0 – 15mm |
| Cutting Precision： | ±（0.2%*L + 1）mm |
| Air Pressure: | 0.5-0.7MPa (5-7kg/cm²) |
| Dimensions: | Main unit: 2100*800×2000mm excluding the size of the wire pay-off rack |
| Weight: | Main unit: ~1200kg ±15kg |
