Product Introduction
1.It is a fully automatic device integrating multiple functions, with the optional functions of laser marking or inkjet printing.
2.It has a wide range of applications, suitable for different types of wires and heat shrink tubing. The automatic heating device automatically shrinks the heat shrink tubing into shape.
3.Using an industrial control computer, multiple numerical values can be set, and the operation data can be retained for traceability. It has a fault alarm function, which can display problems in real time. Defective products are automatically sorted.
4.Adopting a modular design, each functional module can be freely turned on or off in the program, enabling quick replacement, upgrade and maintenance. For different wire harnesses, it can operate efficiently by replacing components.
5.With a compact structure and an exquisite appearance, it occupies less space.

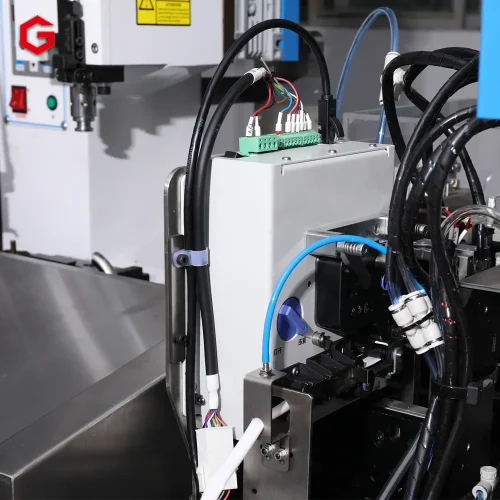

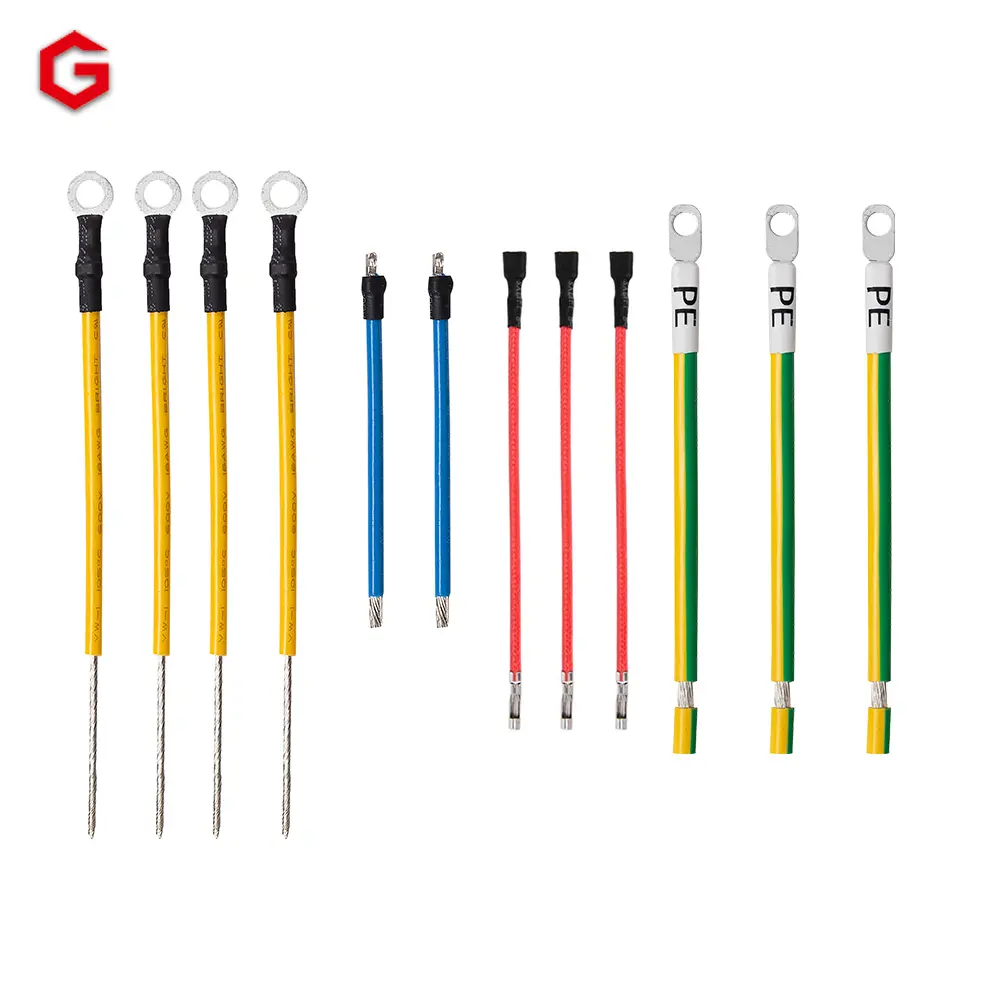

Product Function

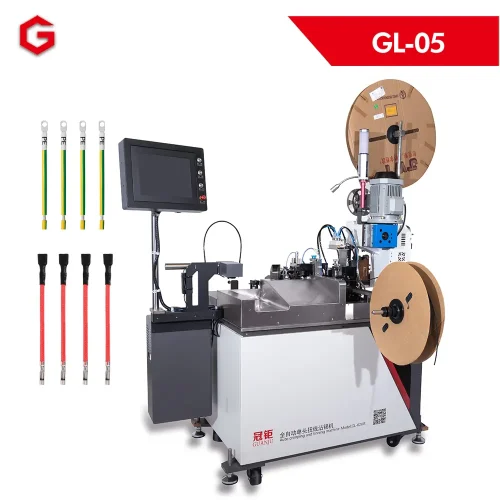

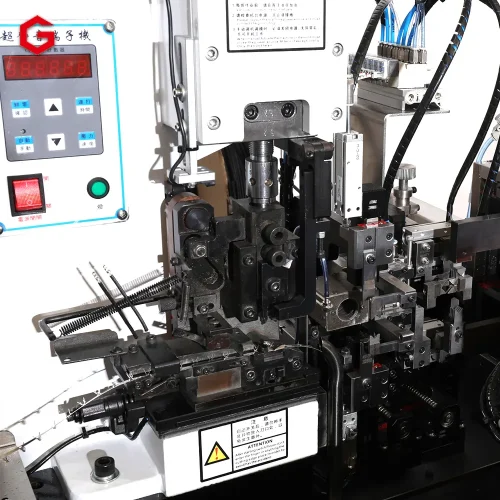

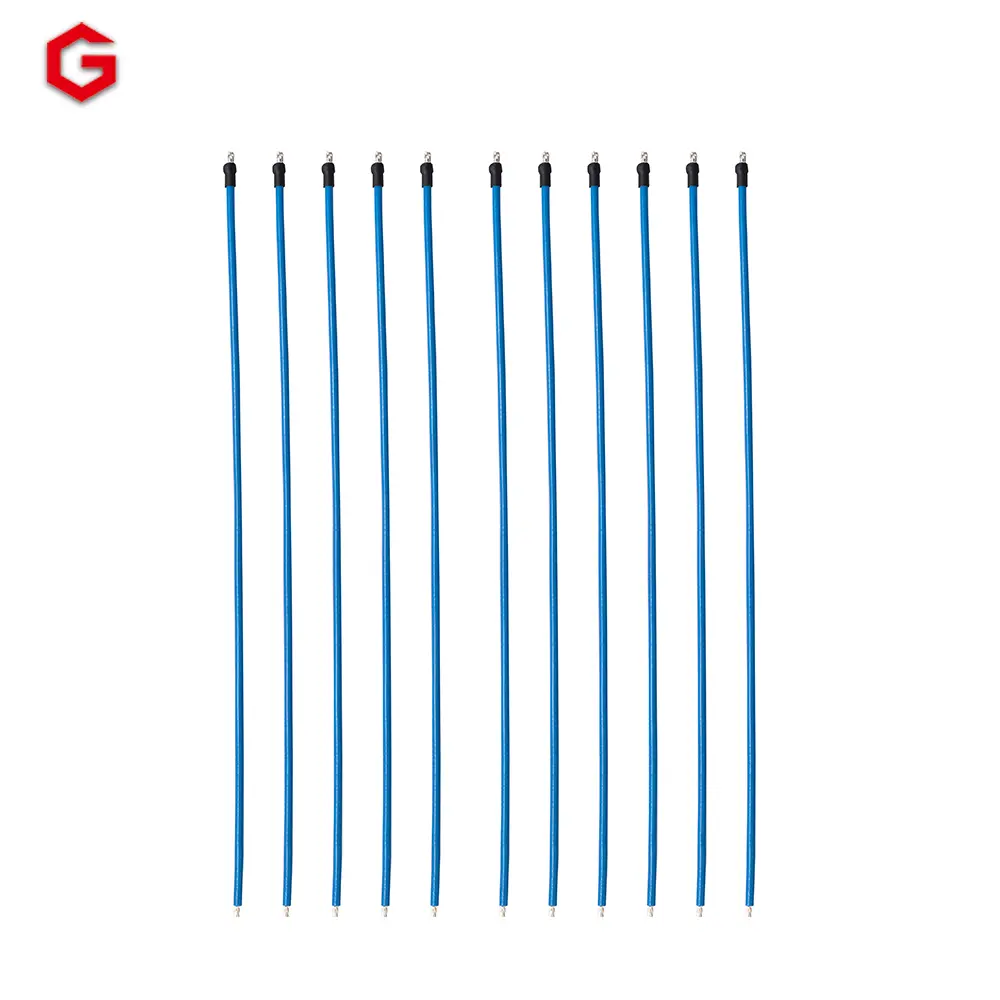

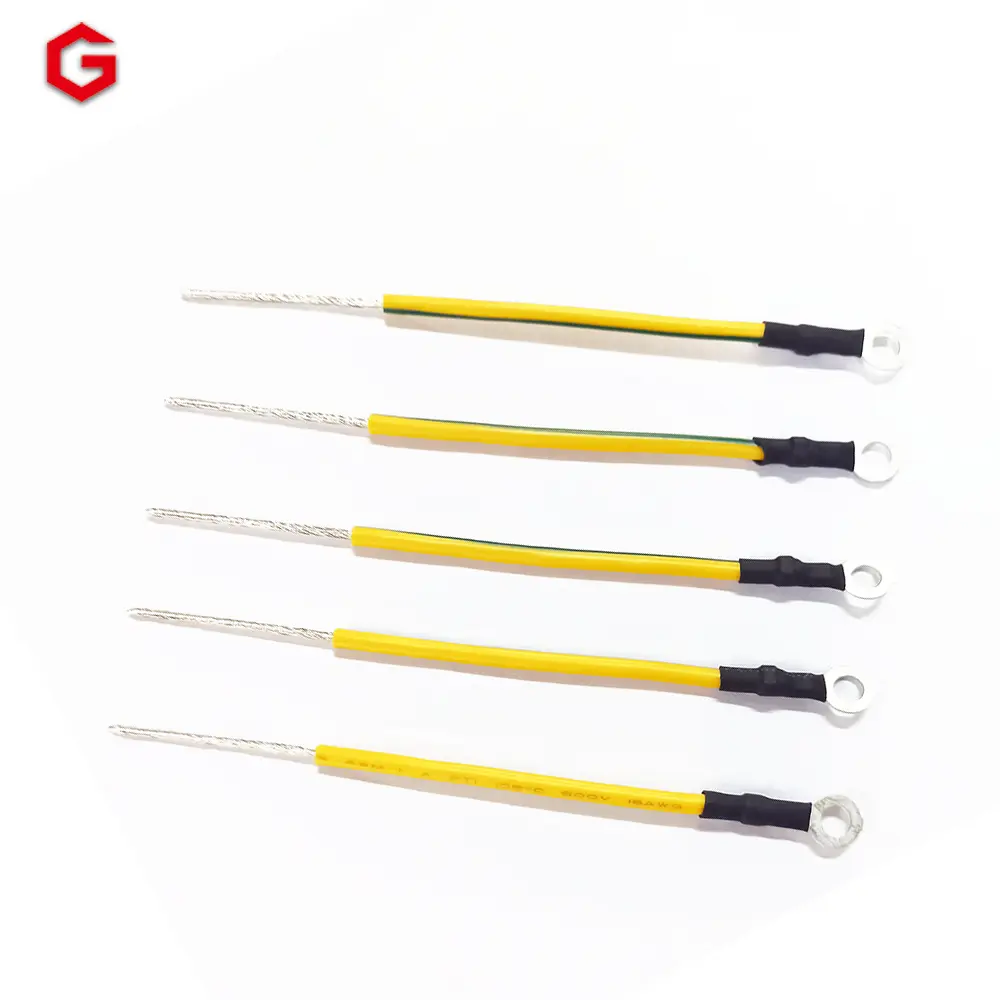

| Equipment Name and Model: | GL-05 Fully Automatic Single-head Terminal Crimping and Heat Shrink Tubing Threading Machine |
| Main Functions: | At end A, it can cut wires, strip insulation, thread heat shrink tubing, crimp terminals, and bake the tubing; at end B, it can cut wires, strip insulation, twist wires, and tin the wire ends. |
| Control Mode: | Human-machine interface + industrial computer control |

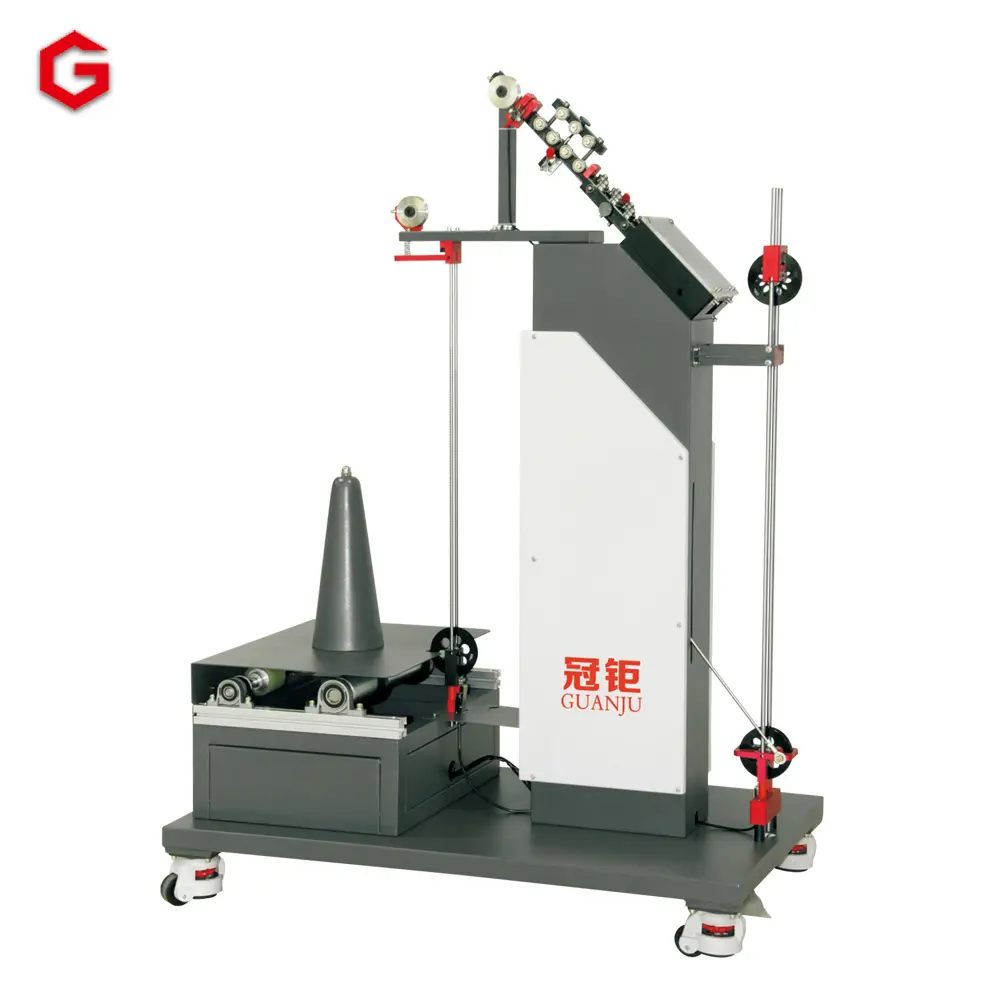

| Wire Pay-off System: | Computer fully automatic pre-wire feeding device, suitable for coiled wires and spooled wires |
| Detection Device: | Detection of the presence or absence of terminals, wire knotting, wire shortage alarm, air pressure detection, and the presence or absence of heat shrink tubing |
| Terminal Pressure Detection System: | Optional to install (Guanju) |
| Defective Product Handling: | Sorting (a cutting device can be additionally installed at the head part) |

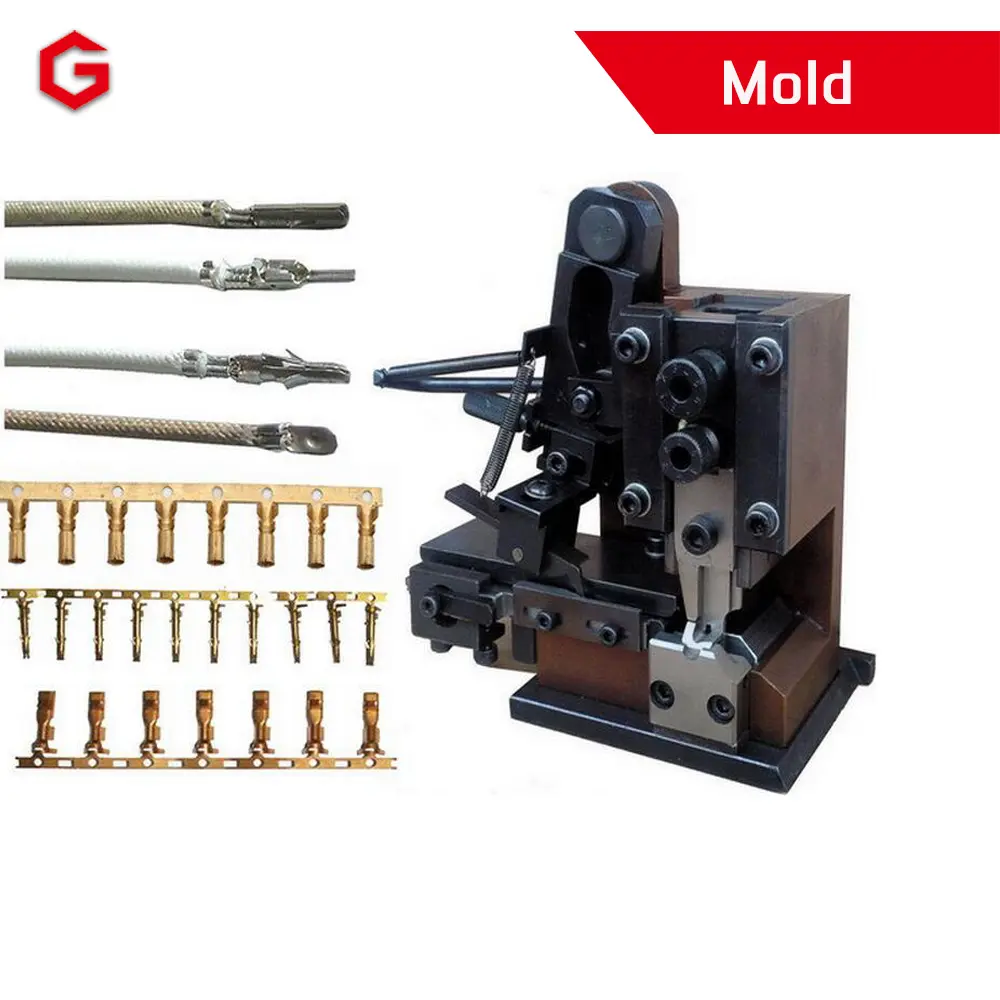

| Applicable Molds: | OTP standard horizontal molds, straight molds, flag-shaped molds. European-style and Korean-style molds can be customized. |
| Terminal Crimping Capacity: | 2T/3T ultra-silent variable frequency terminal machine |
Product parameter
| Power Supply: | 50/60HZ, 220V single-phase |
| Processing Length: | Single-head terminal crimping and heat shrink tubing threading: 80 – 99999mm. |
| Heat shrink tubing length: 8 – 20mm. | |
| Outer diameter of heat shrink tubing (OD): 2.5 – 6mm. | |
| Processing Length: | Range of Wires for Processing: AWG#22 – AWG#16, suitable for various specifications of wires (AWG#10 – AWG#16 can be customized) |
| Range of Terminals for Processing: | Conventional 1.5 – 3.96mm (ground ring terminals, Y-type terminals, substrate terminals) |
| Production Capacity： | When the length is less than 300mm, 900 – 1000 pieces per hour. |
| When the length is between 300 – 600mm, 800 – 900 pieces per hour. | |
| Stripping Length: | 0 – 10mm at end A, 0 – 15mm at end B(30mm can be customized) |
| Cutting Precision: | ±(0.2%*L+1)mm |
| Air Pressure: | 0.5 – 0.7Mpa (5 – 7KG/m³) |
| External Dimensions: | 1210*770*1370mm. Dimensions of the supporting wire pay-off rack: 920*560*1300mm |
| Weight: | Approximately 400KG±15KG. The weight of the supporting wire pay-off rack is approximately 80KG |
