Product Introduction
1.This is a fully automatic device integrating multiple functions. It allows for arbitrary setting of the wire insertion sequence into the housing, supports single-layer and multi-layer plastic housings, and the insertion position of each hole can be adjusted independently. It also has customizable wire twisting and other functions.
2.It is equipped with an industrial control computer, and the operation data can be retained for traceability. With multiple detection functions, defective products are automatically sorted out, there is a fault alarm system, and problems are displayed in real time.
3.Featuring a compact structural design, it incorporates multiple optimized structures, occupying less space and achieving higher speeds.
4.Adopting a modular design, each functional module can be freely turned on or off in the program, enabling quick replacement, upgrading, and maintenance. For different wire harnesses, it can operate efficiently just by replacing the components.
Product Function

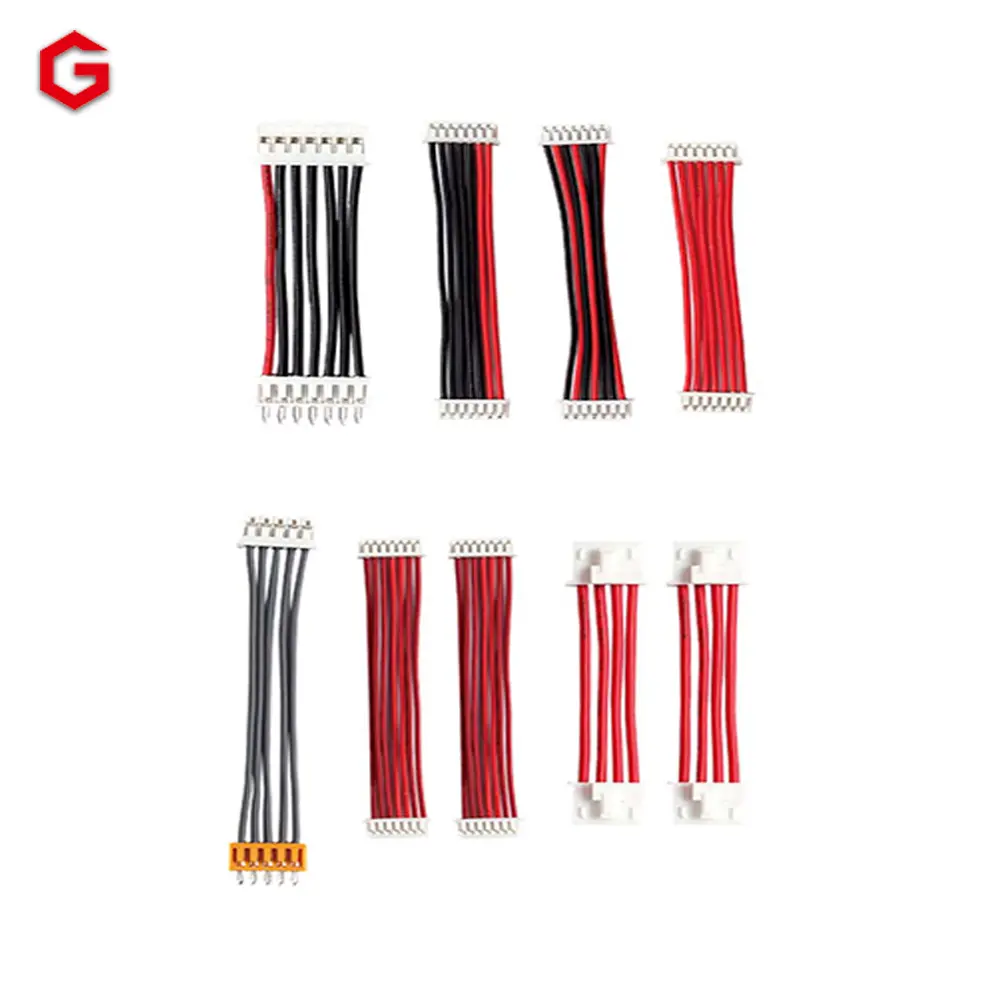

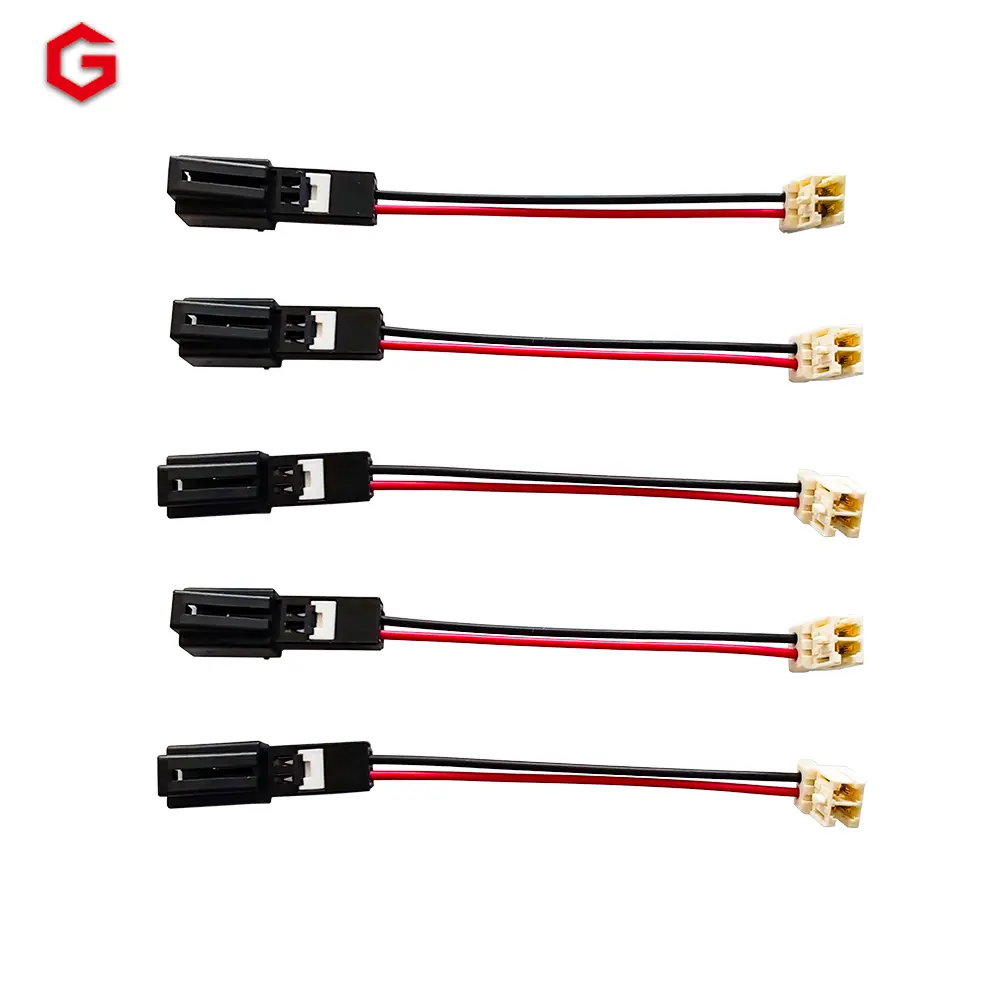

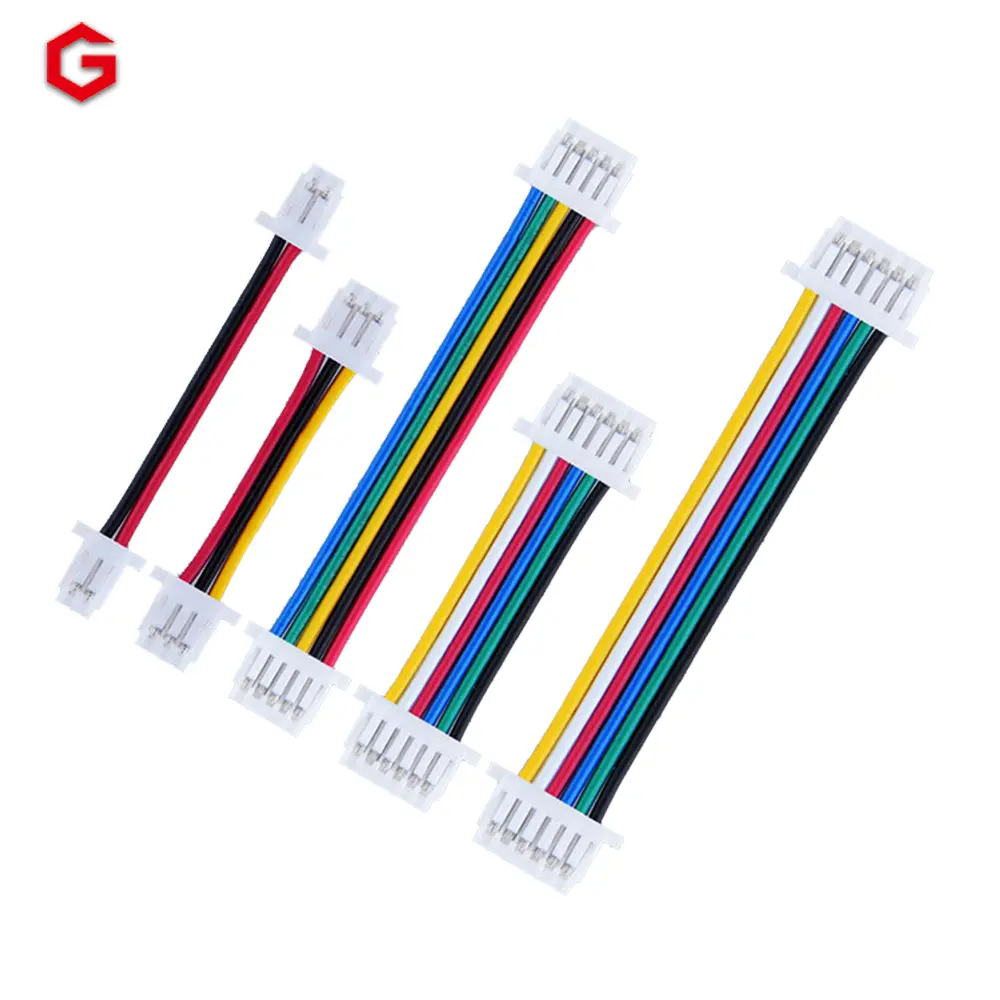

| Device Name and Model： | GL – 1804 Fully Automatic Multi – Parallel Wire Double – End Terminal Crimping and Plastic Housing Threading Machine |
| Main Functions： | At end A: Wire cutting and stripping, terminal crimping, and plastic housing threading. At end B: Wire cutting and stripping, terminal crimping, plastic housing threading, wire twisting and tinning (the wire – stranding function can be customized) |
| Wire Pay – off System： | Suitable for spool – wound wires. |
| Detection Device： | CCD visual inspection for wire stripping at both ends A and B; CCD visual inspection for terminals at both ends A and B. CCD visual inspection for proper insertion of plastic housings at both ends A and B; pressure detection at both ends A and B. |

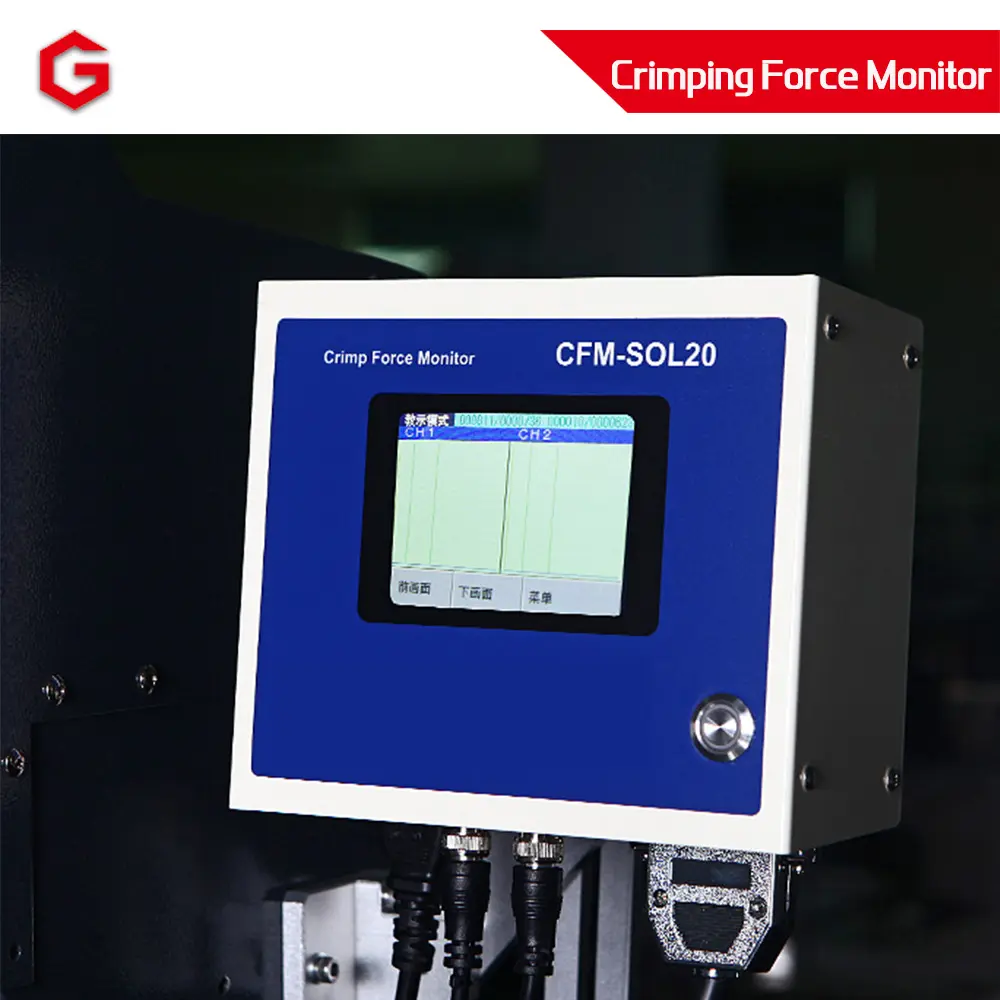

| Terminal Pressure Detection System： | Dual – channel pressure monitoring (Guanju) |
| Defective Product Handling： | Sorting in the defective product area |
| Compatible Molds： | Special – purpose molds |
| Applicable Plastic Housings： | Applicable to plastic housings with multiple pins and different pin pitches |
| Terminal Crimping Capacity： | 2T servo terminal machine |
Product parameter
| Power Supply: | 50/60Hz, 220V |
| Processing Length： | 50 – 600mm |
| Wire Processing Range： | AWG#30 – AWG#18, suitable for wires of various specifications and colors |
| Processable Terminal Spacing： | 1.0 – 3.96mm |
| Production Capacity： | When L = 100mm, 300 sets per cycle |
| Stripping Length： | End A: 1.0 – 7.0mm, End B: 1.0 – 8.5mm |
| Twisting Length： | End B: 2 – 7mm ± 0.3 |
| Tinning Depth： | 1 – 7mm |
| Cutting Precision: | ±(0.2%×L +1)mm (L = wire length) |
| Air Pressure: | 0.5-0.7MPa (5-7kg/cm²) |
| Dimensions: | Main unit: 2300×1200×1370mm Matching wire feeder stand: 1400×500×1300mm |
| Weight: | Main unit: ~750kg ±15kg， Matching wire feeder stand: ~100kg |
