Product Introduction

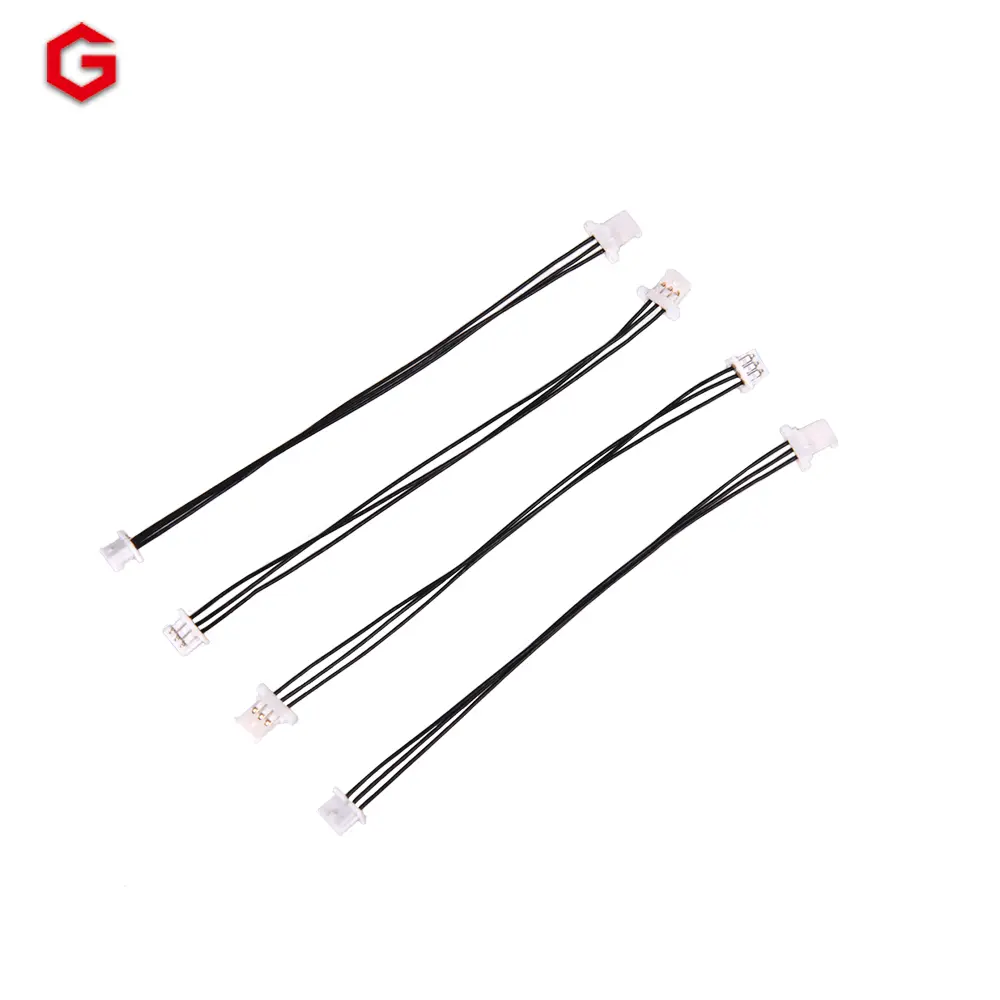

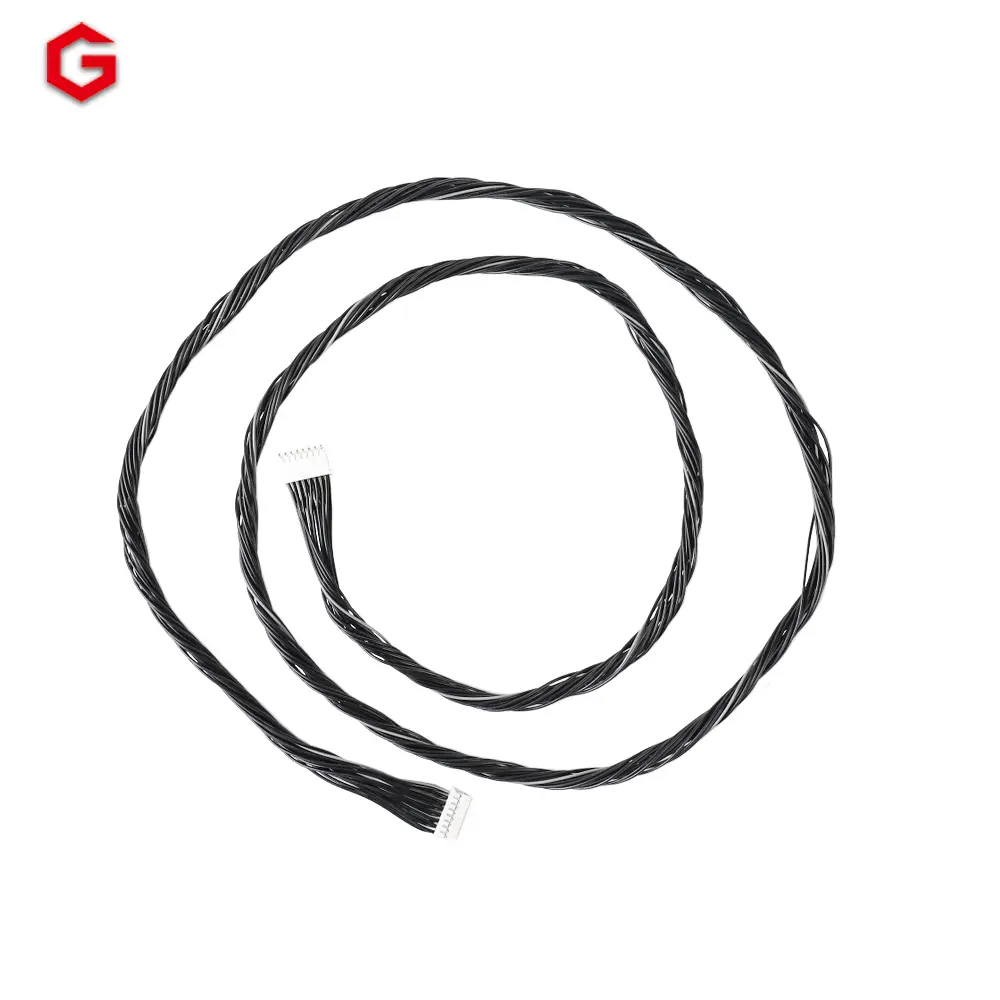

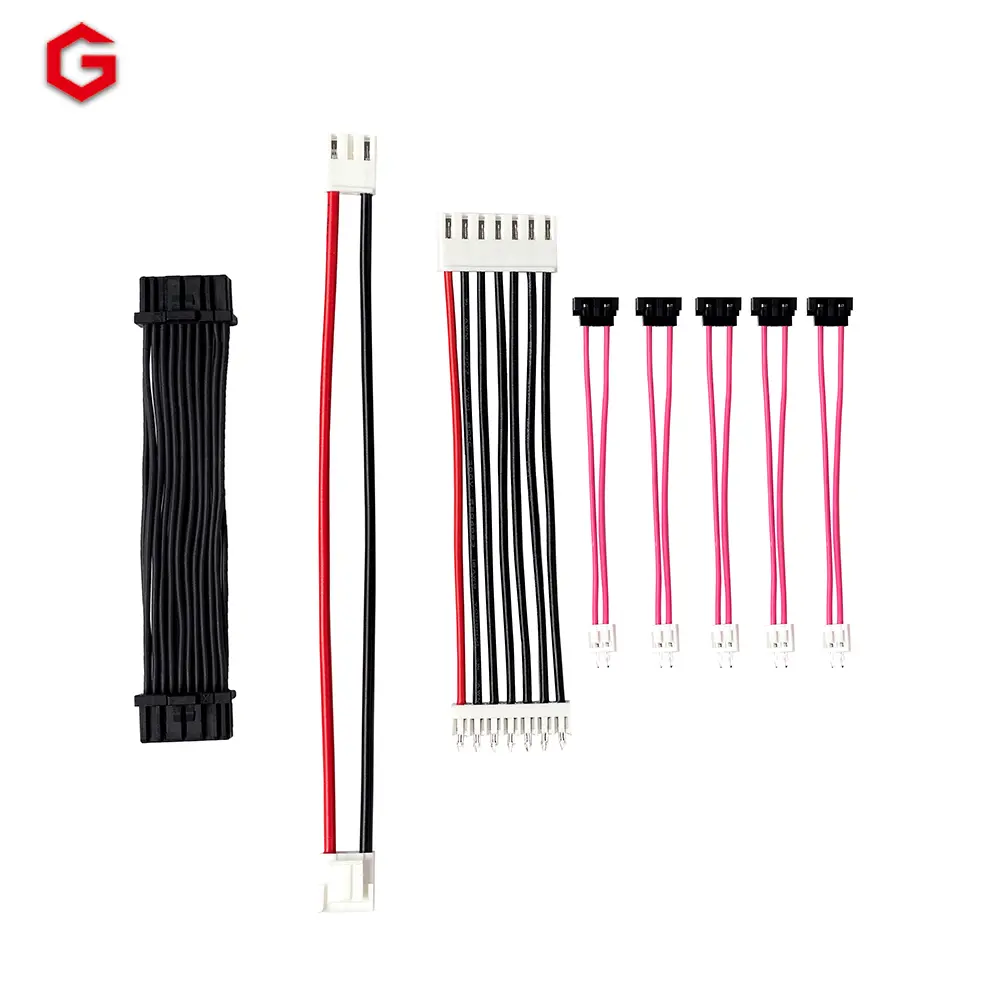

1.This is a fully automatic device integrating multiple functions. It allows for arbitrary setting of the wire insertion sequence into the housing, supports single-layer and multi-layer plastic housings, and the insertion position of each hole can be adjusted independently. It also has customizable wire twisting and other functions.
2.Wire Harness Crimping and Insertion Equipment is equipped with an industrial control computer, and the operation data can be retained for traceability. With multiple detection functions, defective products are automatically sorted out, there is a fault alarm system, and problems are displayed in real time.

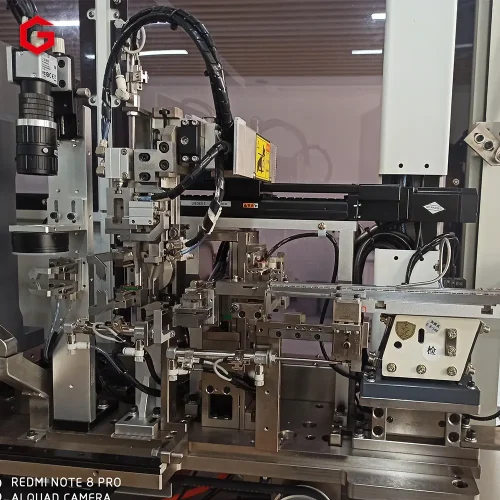

3.Featuring a compact structural design, it incorporates multiple optimized structures, occupying less space and achieving higher speeds.
4.Adopting a modular design, each functional module can be freely turned on or off in the program, enabling quick replacement, upgrading, and maintenance. For different wire harnesses, it can operate efficiently just by replacing the components.
Product Function
| Equipment Name and Model: | GL-1802 Full-automatic Double-end Terminal Crimping and Housing Inserting Machine |
| Main Functions: | Cutting, full stripping, half stripping, terminal crimping and housing inserting at both ends A and B |
| Control Mode: | Controlled by an industrial computer, with Windows 7 operating system, and dual input via a touch screen, mouse and keyboard |
| Wire Pay-off System: | Full-automatic wire feeding device, suitable for spool-mounted wires |

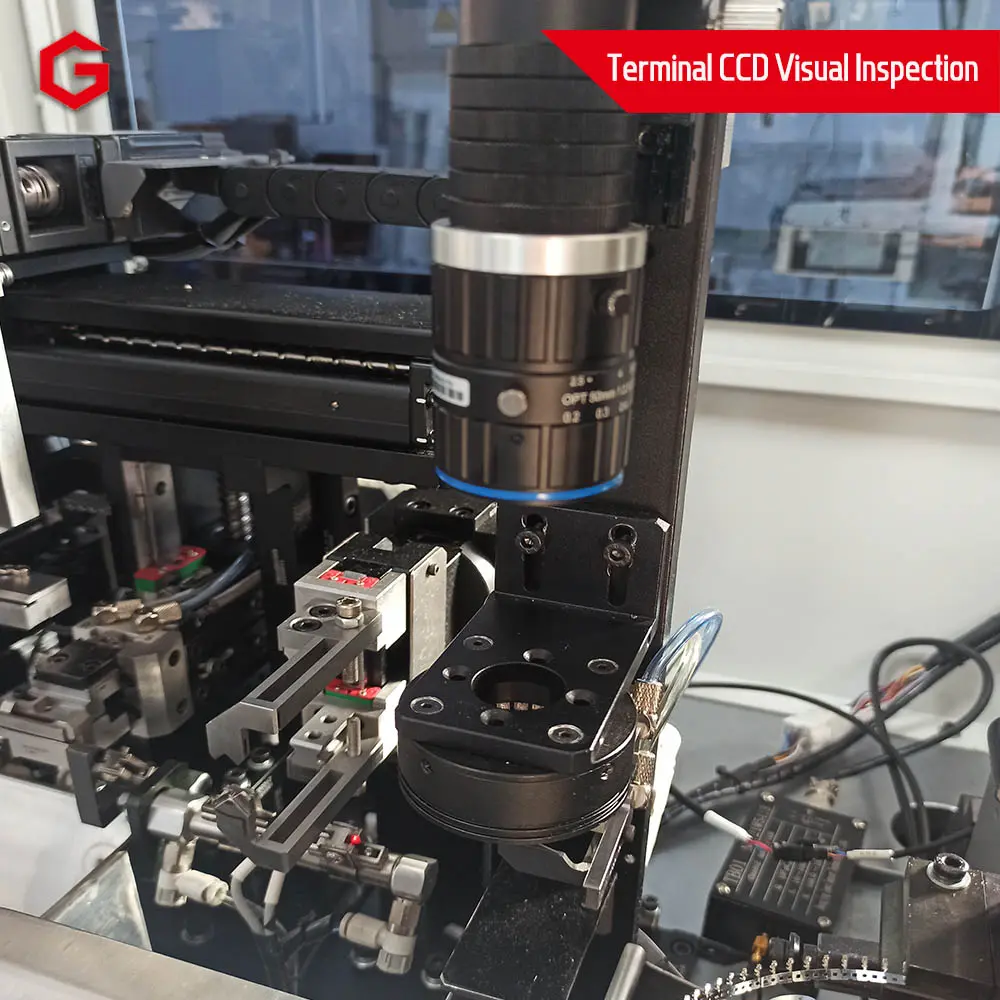

| Detection Device: | CCD visual detection of terminals at both ends A and B, air pressure detection, detection of the presence or absence of wires, detection of the presence or absence of terminals, and detection of the insertion and extraction force of the housing |

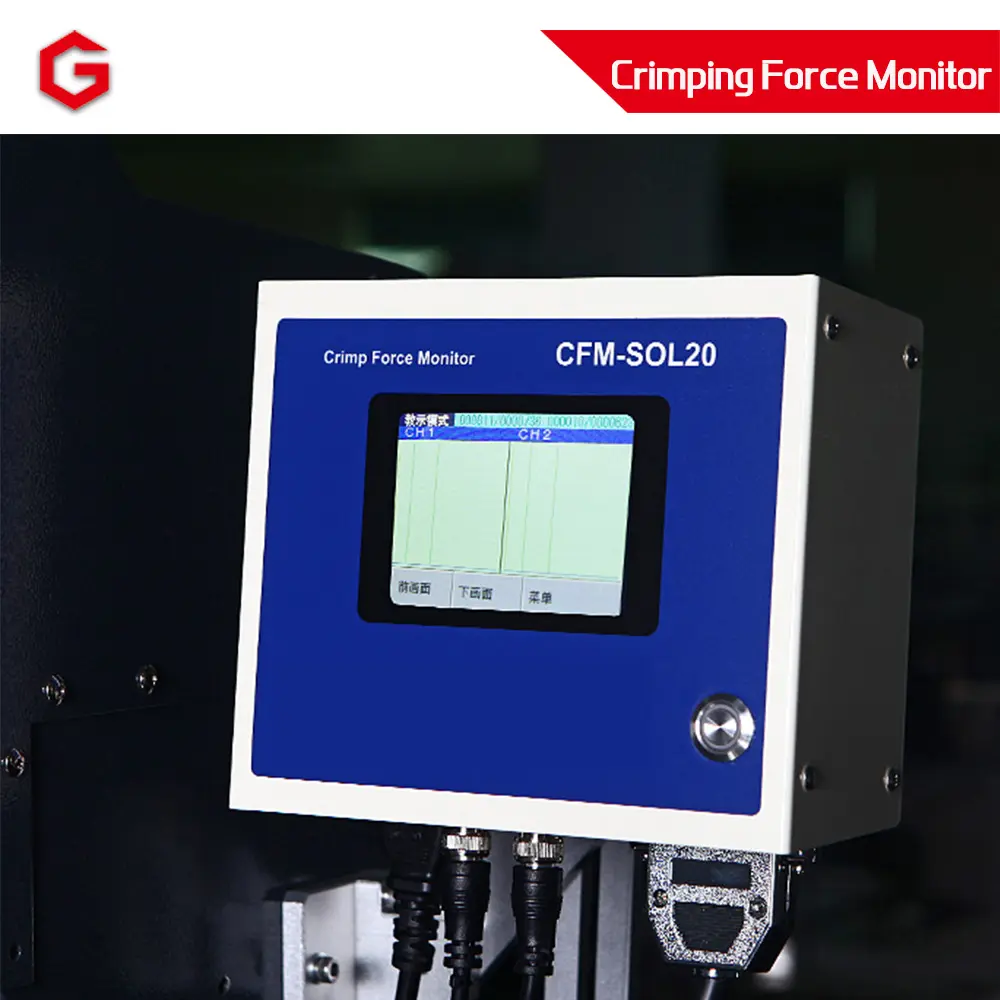

| Terminal Pressure Detection System: | Dual-channel pressure monitoring (Guanju) |
| Treatment of Defective Products: | Sorting in the defective product area |
| Applicable Molds: | OTP standard horizontal mold (pneumatic mold, European and Korean molds can be customized) |
| Applicable Housings: | Suitable for housings with multiple pins and different pin pitches |

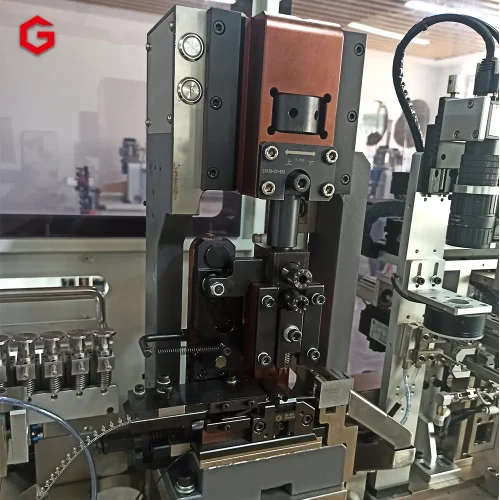

| Terminal Crimping Capacity: | 2T ultra-quiet servo terminal machine |
Product parameter
| Power Supply: | 50/60Hz, 220V |
| Processing length: | 100-800mm |
| Wire Gauge Range: | AWG#30-AWG#18, supports multi-specification wires with various colors |
| Terminal Pitch Range: | 1.25-3.96mm |
| Production capacity: | When L=100mm, the production capacity is 1800 to 2000 wires per hour. (The specific production capacity may vary depending on the requirements of customers’ products.) |
| Stripping Length: | End A: 1.0-7.0mm，End B: 1.0-8.5mm |
| Cutting Precision: | ±(0.2%×L +1)mm (L = wire length) |
| Air Pressure: | 0.5-0.7MPa (5-7kg/cm²) |
| Dimensions: | Main unit: 2300×1200×1370mm Matching wire feeder stand: 1400×800×1300mm |
| Weight: | Main unit: ~750kg ±15kg， Matching wire feeder stand: ~150kg |
Related Cases

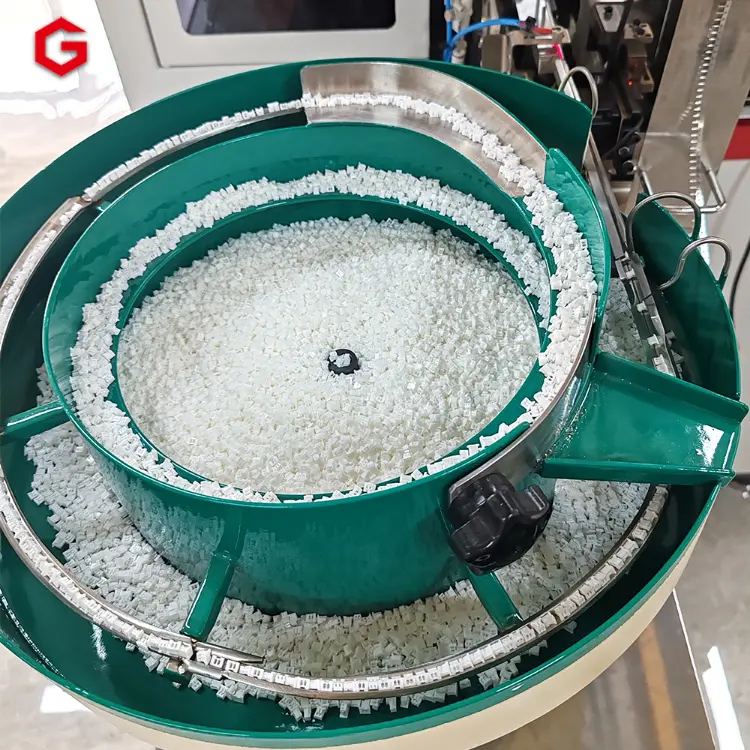

Auxiliary Expansion Device
