Product Introduction
1.It is a full-automatic device integrating multiple functions. With a linear assembly line workstation design, the processing process is smoother and faster.
2.The automatic heating device automatically heats and shrinks the heat shrinkable tube in place. The functions of laser marking or inkjet printing can be optionally configured.
3.Multiple types of terminals can be switched with one click. A servo terminal crimping machine is adopted, which is stable and reliable. The pressure monitoring is integrated into the industrial control computer, making the operation simple and quick.
4.Equipped with an industrial control computer, multiple values can be set, and the operation data can be retained for traceability. There is a fault alarm function that can display problems in real time, and defective products are automatically sorted.
5.Adopting a modular design, each functional module can be freely turned on or off in the program, enabling quick replacement, upgrading and maintenance. For different wire harnesses, it can operate efficiently by replacing components.
6.It has a compact structure and an exquisite appearance, occupying less space.
Product Function
| Equipment Name and Model: | GL- 03UP Fully Automatic Double – end Crimping, Pipe Inserting and Printing Machine |
| Main Functions: | Double – end wire stripping, terminal crimping, heat – shrinkable tube inserting, printing, and heat shrinking |
| Control Mode: | PLC host computer control system |
| Wire Feeding System: | Fully automatic wire feeding system, suitable for spool – mounted wires and coil – mounted wires |
| Detection Devices: | Knotting detection, terminal crimping detection, wire shortage detection, and number tube shortage detection |
| Terminal Pressure Detection System: | Daitake / Soltec (choose one) |
| Defective Product Handling: | Defective product collection tray |

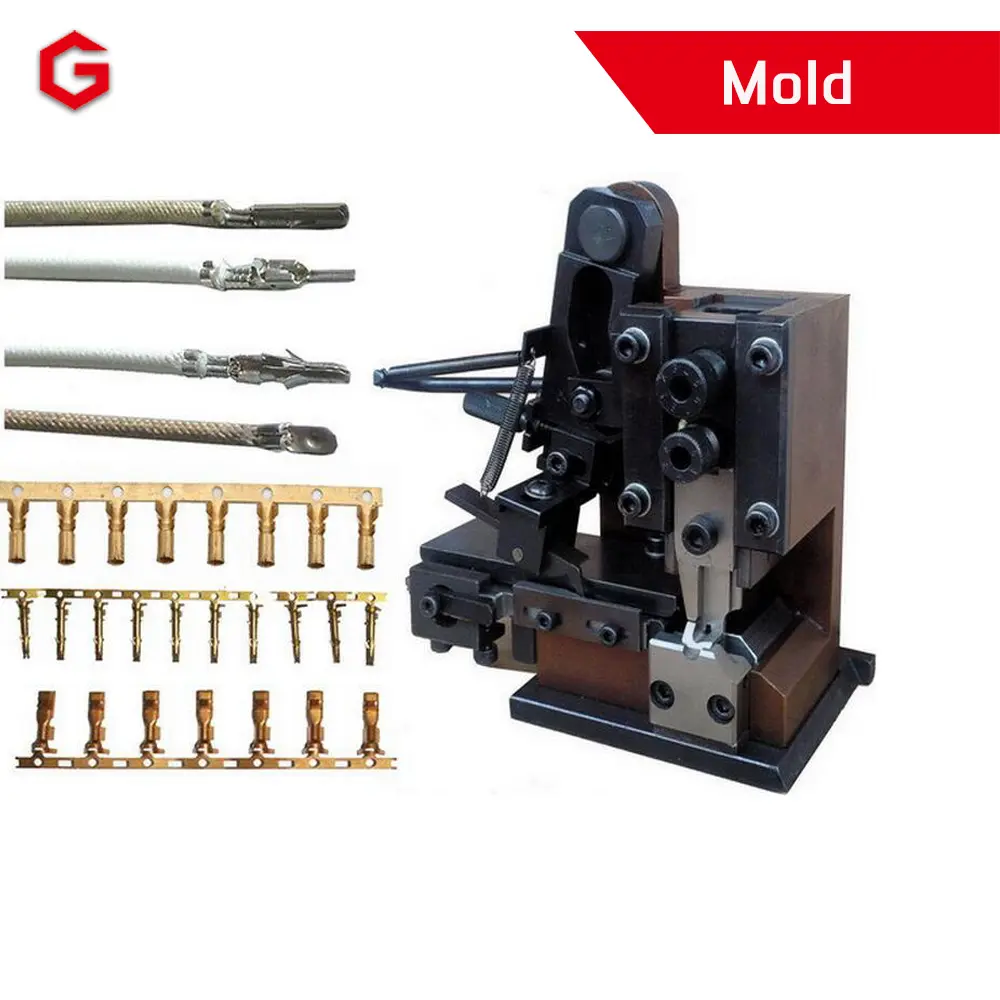

| Applicable Molds: | OTP molds, four – side molds, four – point molds |
| Terminal Crimping Capacity: | 4T |
Product parameter
| Power Supply: | Single-phase, 220V, 50/60HZ |
| Processing Length: | Wire Length: 120mm – 2000mm Heat Shrinkable Tube Length: 15 – 30mm Outer Diameter of Heat Shrinkable Tube: 5mm ≤ Φ ≤ 10mm (Round tube/Flat tube)” |
| Range of Wire Materials for Processing: | AWG7# – AWG10# |
| Range of Terminals for Processing: | OT Open Circular Terminals, Tubular Terminals, Granular Terminals |
| Production Capacity: | For a length of 120mm – 300mm, 5 – 7 seconds per wire. |
| For non-standard customized models with enlarged and thickened heat shrinkable tubes, the actual production capacity shall prevail. | |
| Peeling Length: | Ideal range of 0.1mm – 15mm |
| Cutting Accuracy: | ±（0.2%*L+1）mm, where L is the set length |
| Air Pressure: | 0.5 – 0.7Mpa (5 – 7KG/m³) |
| Overall Dimensions: | Length 5500mm * Width 1000mm * Height 1800mm (Excluding vibration plate, laser cabinet, material tray and wire feeding rack) |
| Weight: | Approximately 2000kg |

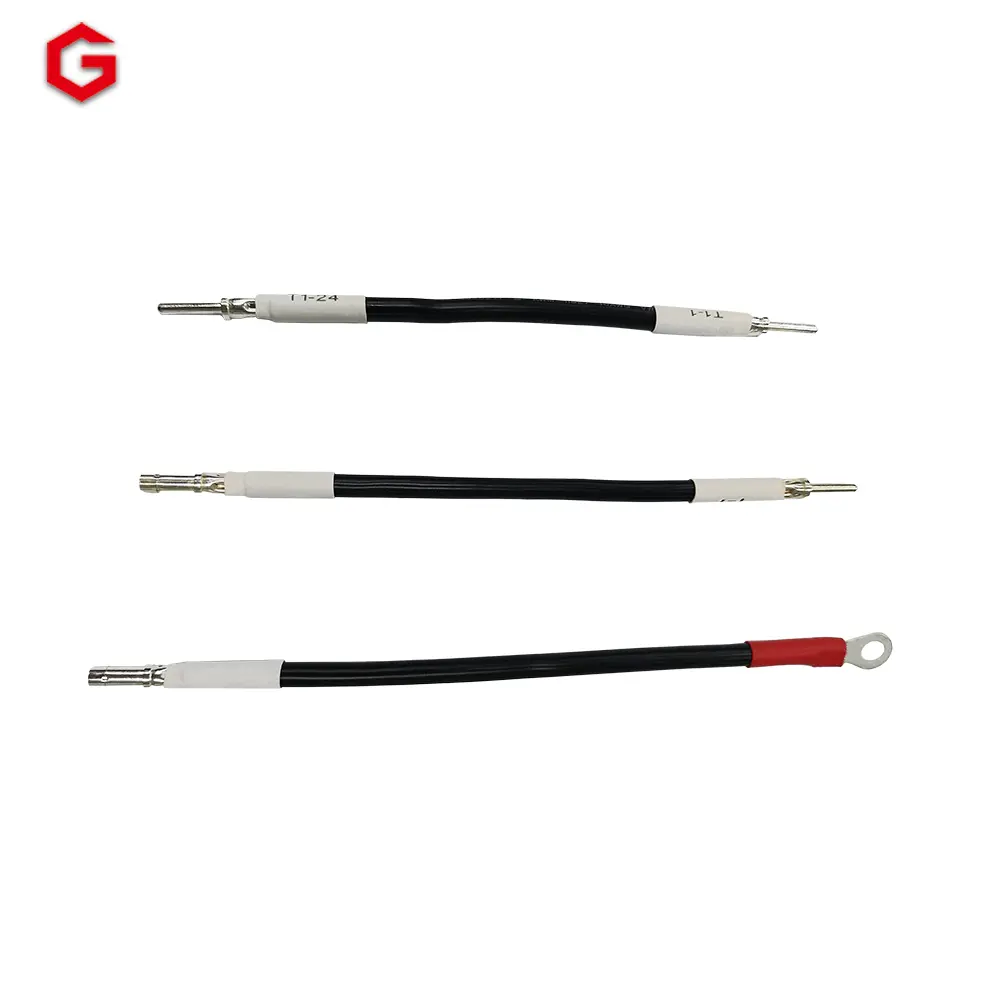

Related Cases

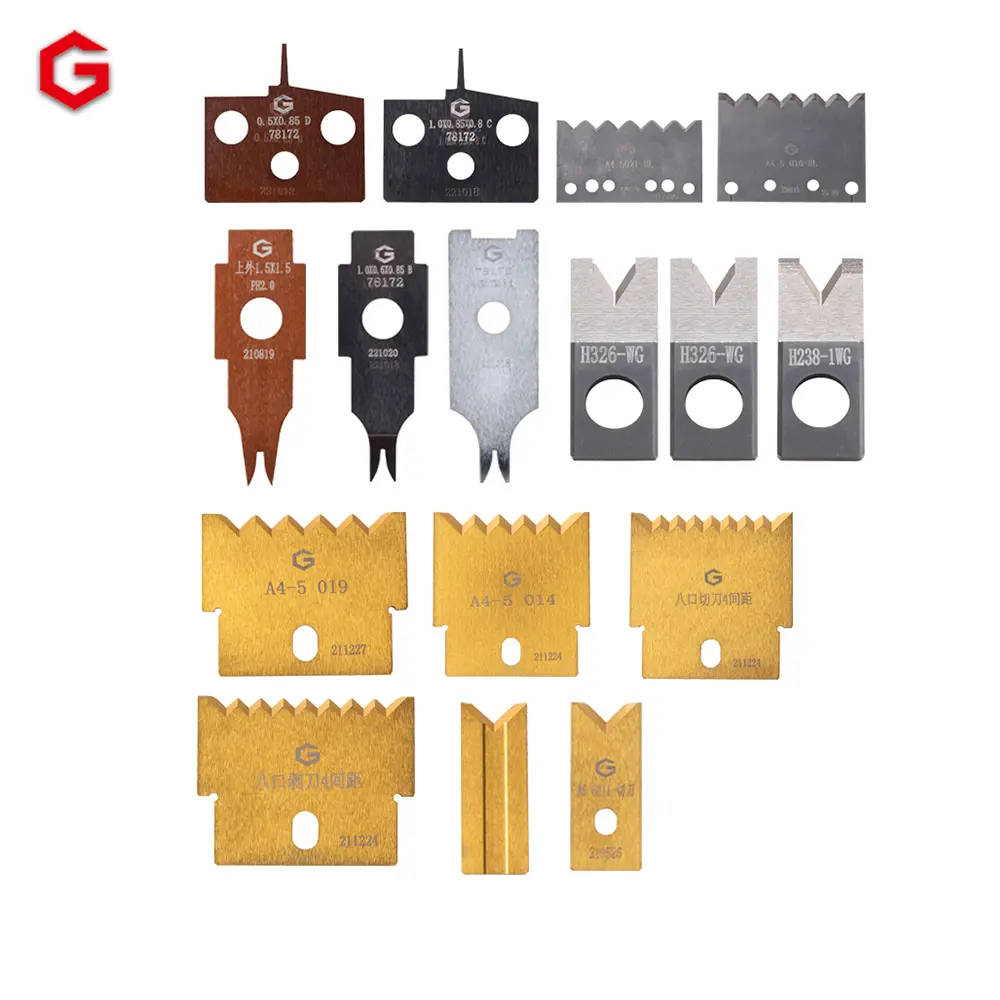

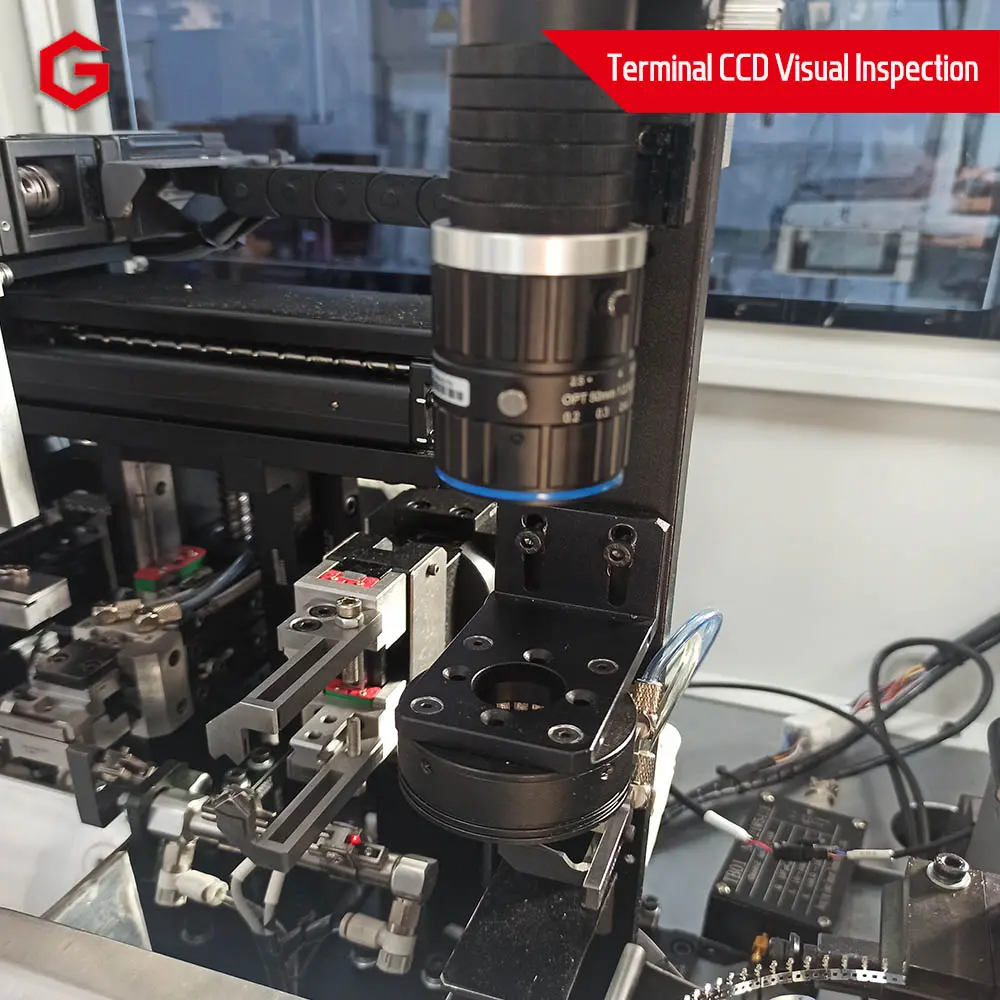

Auxiliary Expansion Device
