fully automatic high-speed double-end crimping machine GL-202B

Fully Automatic Double – End Flat Cable Terminal Crimping Machine.This is a fully automatic device integrating multiple functions. It can perform crimping at both ends or at a single end, and single-end tin dipping. The wire twisting function can be added, and customization is supported.

Send Inquiry

Description

hide

1 Product Video

2 Product Introduction

3 Product Function

4 Product parameter

5 Related Cases

6 Auxiliary Expansion Device

Product Video

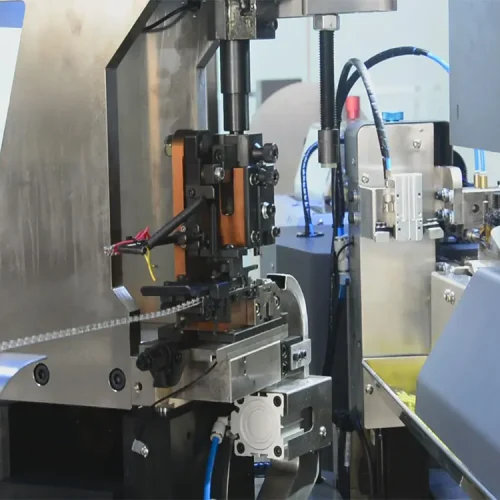

Product Introduction

High-speed operation: It uses high-precision servo motors and control systems to ensure high precision while operating at high speeds.
High degree of automation: It can automatically feed wires, strip insulation, perform crimping, and cut wires, reducing manual intervention and labor intensity.
Multi-functionality: It supports wires and terminals of various specifications, featuring strong adaptability.
High-precision crimping: It adopts advanced crimping technology to ensure a firm connection between the terminals and wires, providing good electrical conductivity.
Human-machine interface: It is equipped with a touch-screen operating interface, facilitating parameter setting and equipment monitoring.
High stability: It has a reasonable structural design, operates stably, and has a low failure rate.

Product Function

Equipment Name and Model	GL – 202B Fully Automatic High – speed Double – end Crimping Machine
Main Functions	At end A: wire cutting, insulation stripping, terminal crimping, continuity detection; at end B: insulation stripping, continuity detection, terminal crimping
Control Method	Controlled by an industrial computer with Windows 7 operating system
Wire Feeding System	Fully automatic wire feeding device, applicable to spool – wound wire and reel – wound wire
Detection Device	Pneumatic pressure detection, wire presence/absence detection, terminal presence/absence detection, double – end pressure detection, wire feeding length detection
Terminal Pressure Detection System	Dual – channel pressure monitoring (crimping height)

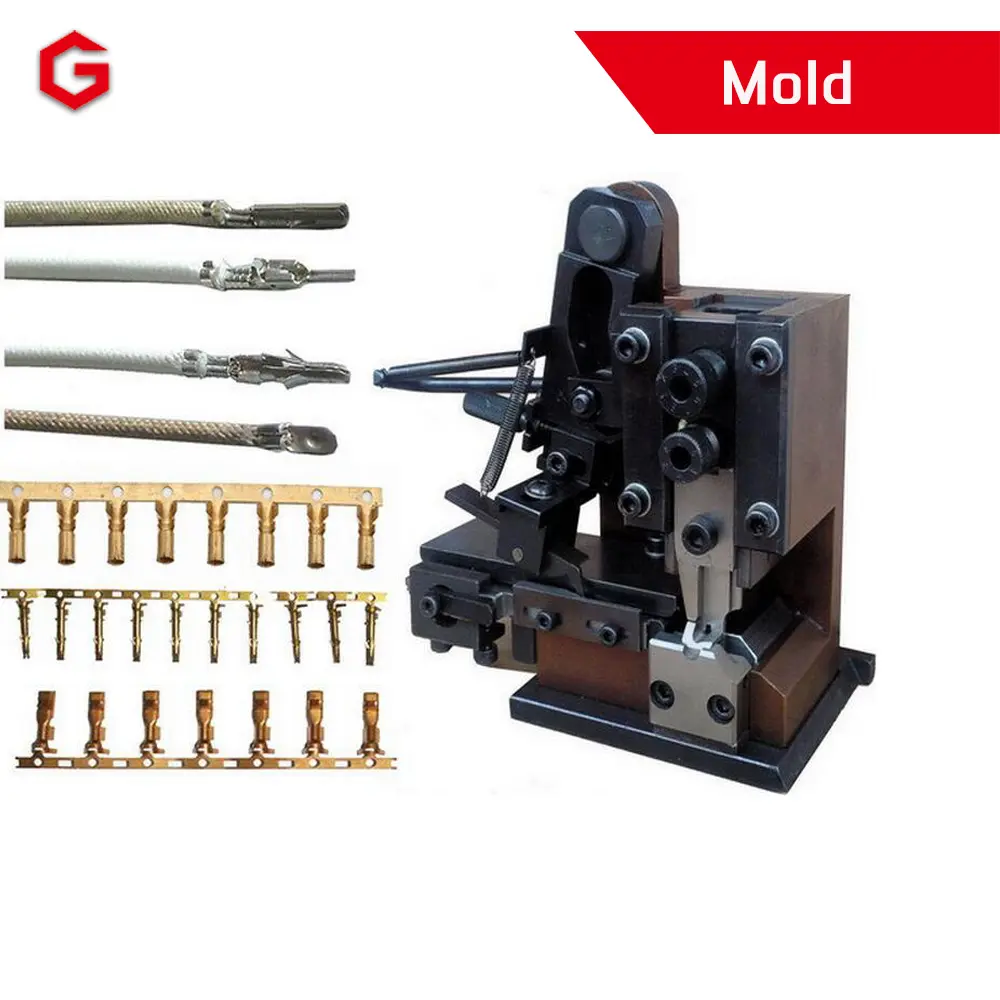

Matching Molds	OTP molds, European – style pneumatic molds
Terminal Crimping Capacity	4T servo terminal machine

Product parameter

Power Supply	50/60HZ 220V Single – phase
Processing Length	65mm (full length) – 99999mm
Wire Processing Range	AWG#10 – AWG22# (High – speed wire feeding with synchronous belt)
Terminal Processing Range	3.96 flag – type terminals / 187 / 250 and other special terminals for automotive wire harnesses and household appliance wire harnesses
Production Capacity	3000+ (for 2m length). The actual efficiency is subject to the measurement of wire materials. Wire feeding speed: 12m/s
Insulation Stripping Length	End A: 0 – 18mm; End B: 0 – 18mm
Cutting Accuracy	± (0.2%*L + 1) mm
Air Pressure	0.5 – 0.7Mpa (5 – 7KG/m³ )
Overall Dimensions	440020002000mm (excluding the footprint of the wire pay – off rack)
Weight	Approximately 1000KG±15KG (The weight of the supporting wire pay – off rack is about 80KG)

Related Cases

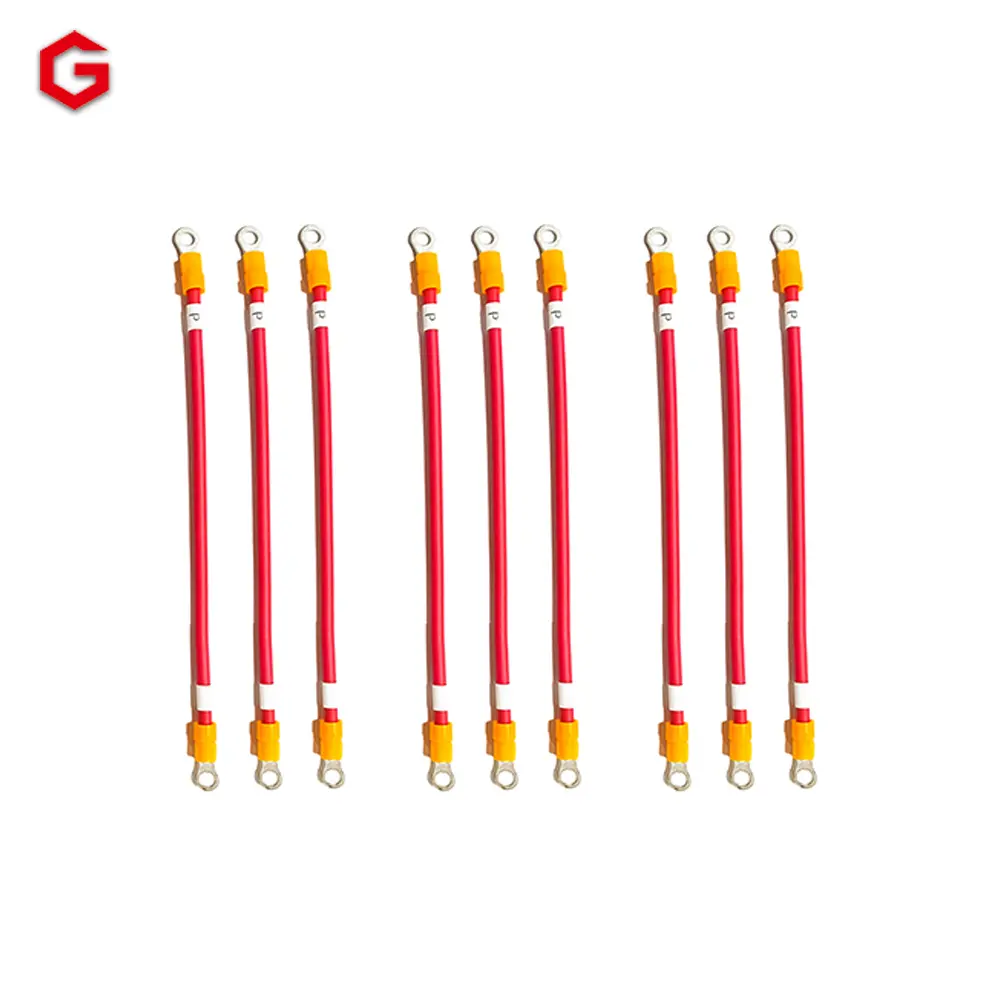

Fully Automatic Double - End Flat Cable Terminal Crimping Machine

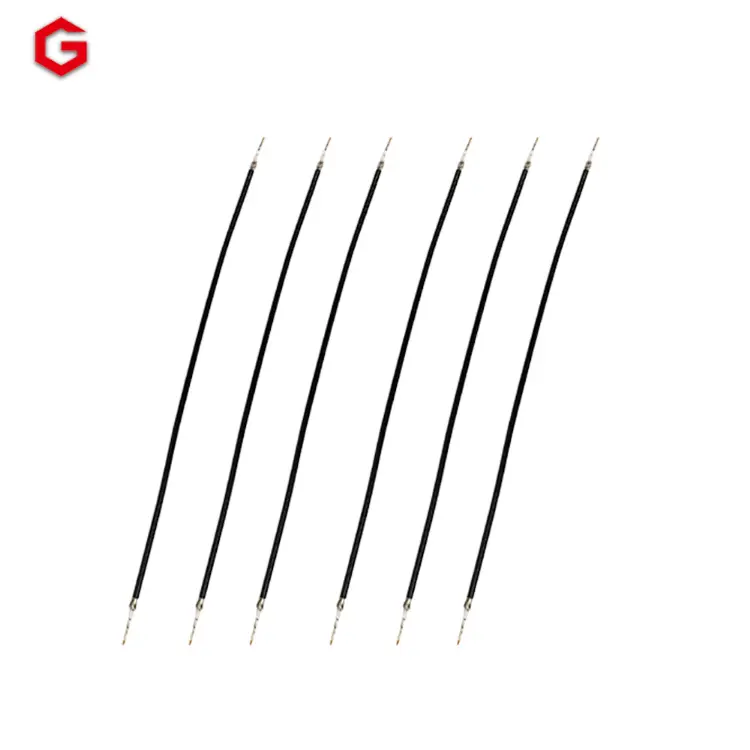

New Energy Wire Harness Processing Equipment
