Product Introduction
1.Wire Harness Processing Equipment Manufacturer. is a full-automatic device integrating multiple functions, which can automatically complete processes such as nickel sheet feeding and welding without manual intervention.
2.It is controlled by a single-chip microcomputer and features a full touch screen operation interface. It has high welding precision and stable quality.
3.It has a fault alarm function and can display problems in real time. Defective products are automatically sorted.
4.It adopts a modular design, enabling quick replacement, upgrading and maintenance. For different wire harnesses, it can operate efficiently by replacing components.
5.Wire Harness Processing Equipment Manufacturer has a compact structure and an exquisite appearance, occupying less space.
Product Function
| Equipment Name and Model: | GL-02HR-D Full-automatic Single-end Terminal Crimping, Tin Dipping and Nickel Sheet Welding Machine |

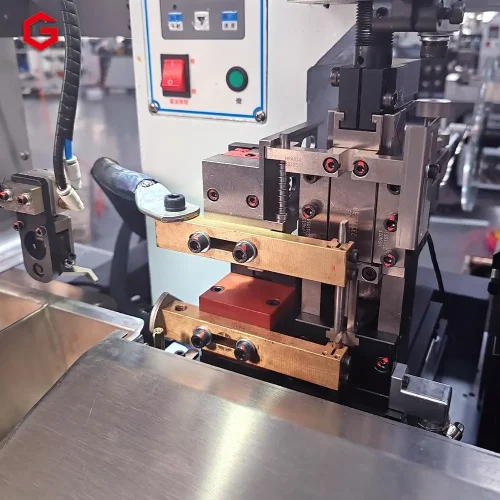

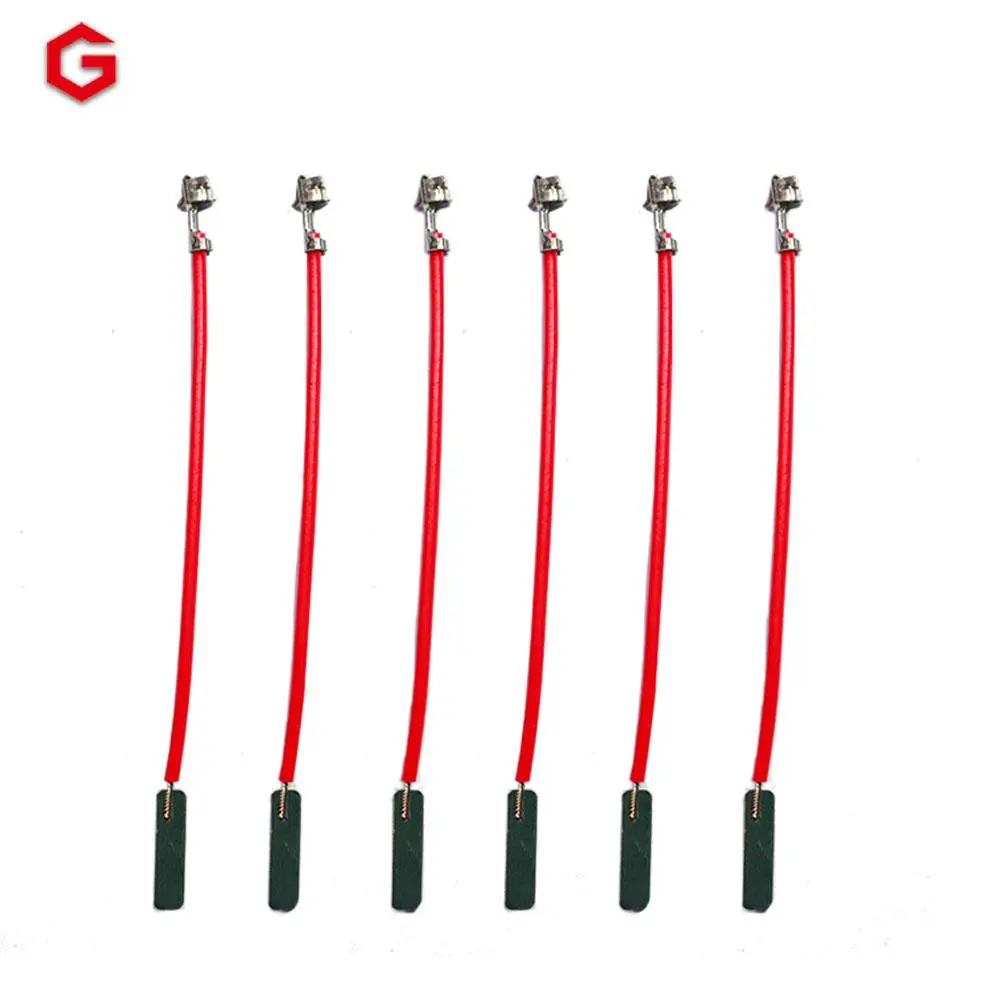

| Main Functions: | At end A, it can cut wires, strip insulation, and crimp terminals; at end B, it can cut wires, strip insulation, and weld nickel sheets (direct welding, left-side welding or right-side welding are available). |

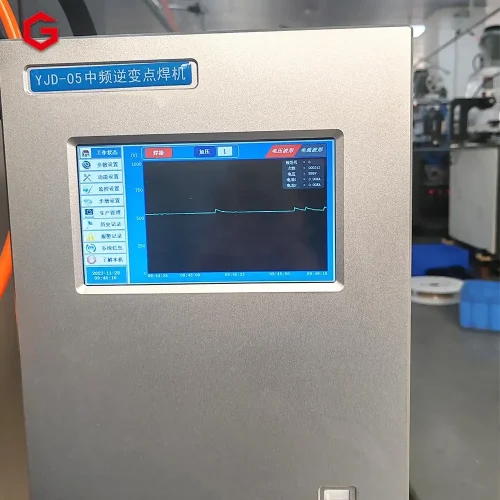

| Control Mode: | Human-machine interface + microcomputer machine adjustment |

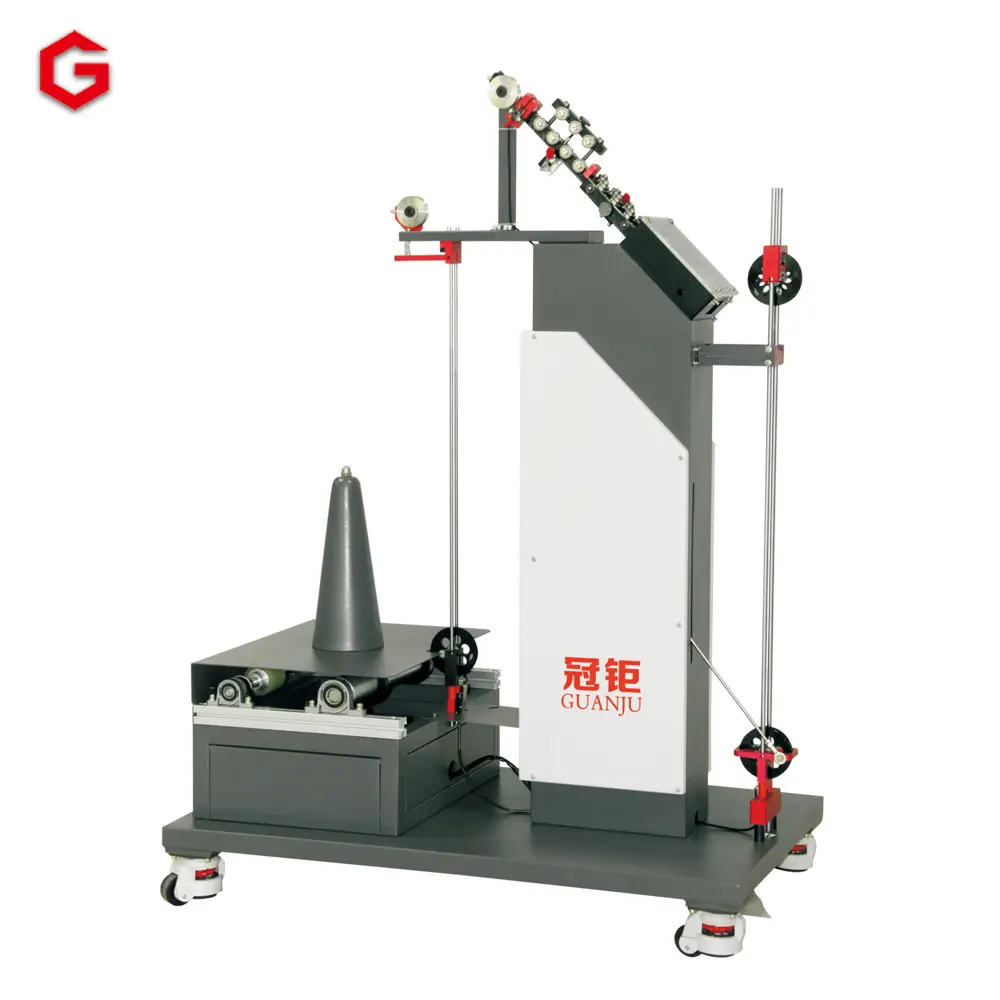

| Wire Feeding System: | Computer full-automatic pre-wire feeding device, suitable for coil wires and spool wires |
| Detection Devices: | Detection of the presence or absence of terminals, detection of the presence or absence of welding pieces, detection of wire knotting, detection of wire shortage, and air pressure detection |
| Terminal Pressure Detection System: | It can be optionally installed (Guanju brand) |
| Defective Product Handling: | Sorting (a cutting device can be additionally installed) |
| Terminal Crimping Capacity: | 2T ultra-quiet variable frequency terminal machine |
Product parameter
| Power Supply: | Single-phase, 220V, 50/60HZ |
| Welding Machine Power Supply: | Three-phase, 380V, 50/60HZ |
| Processing Length: | 15 – 9999mm |
| Range of Wire Materials for Processing: | Standard Machine: AWG#32 – AWG#18 (2-wheel wire feeding) |
| Customized Machine:AWG#14 – AWG#18 (4-wheel wire feeding) | |

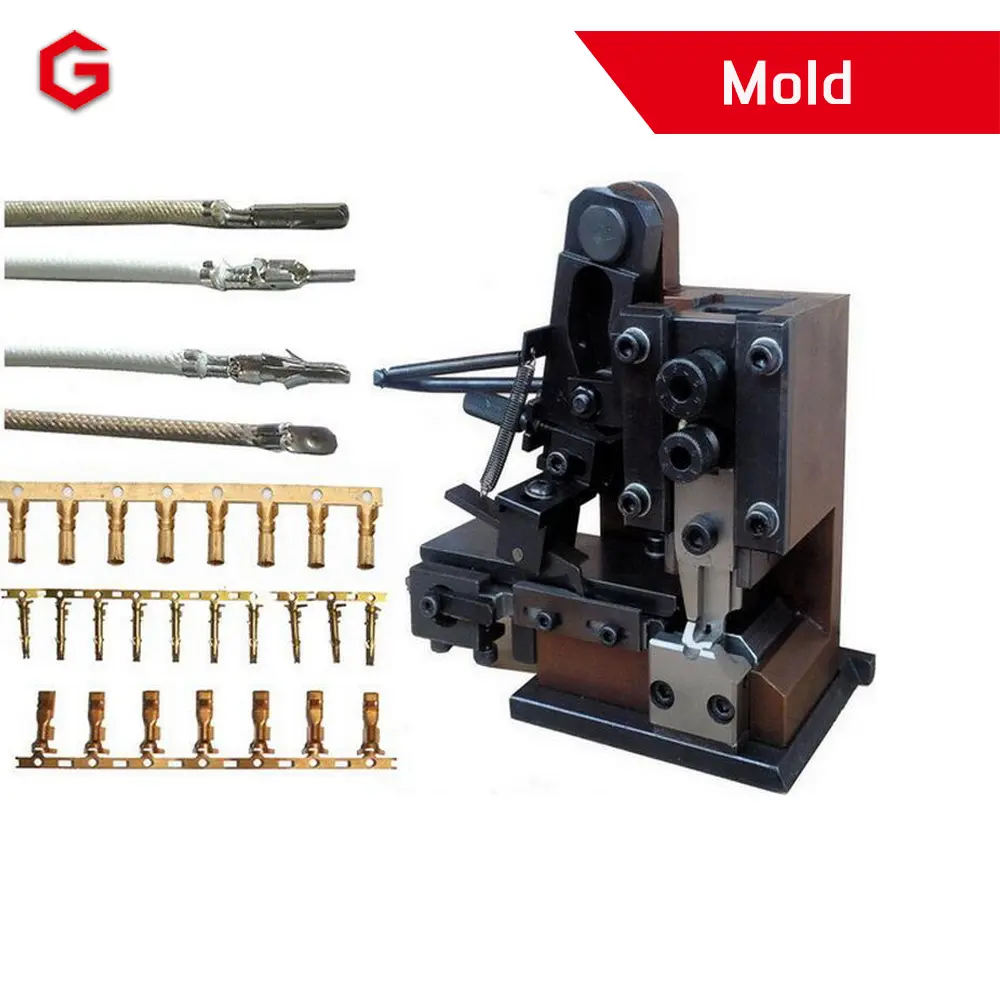

| Range of Terminals for Processing: | Suitable for horizontal and vertical molds with a pitch of 0.8 – 3.96mm, etc. Compatible with flag-shaped molds, etc. Some closed-type continuous insertion terminals and single terminals can be customized. |
| Production Capacity: | 1400 – 1600 pieces per hour (length: 300mm) |
| Peeling Length: | End A: 0 – 6mm; End B: 0 – 8mm |
| Cutting Accuracy: | ±（0.2%L+1）mm |
| Air Pressure: | 0.5 – 0.7Mpa (5 – 7KG/m³) |
| Overall Dimensions: | 1210*770*1370mm; Dimensions of the Supporting Wire Feeding Rack: 920*560*1300mm |
| Weight: | Approximately 450KG±15KG; The weight of the supporting wire feeding rack is approximately 80KG |

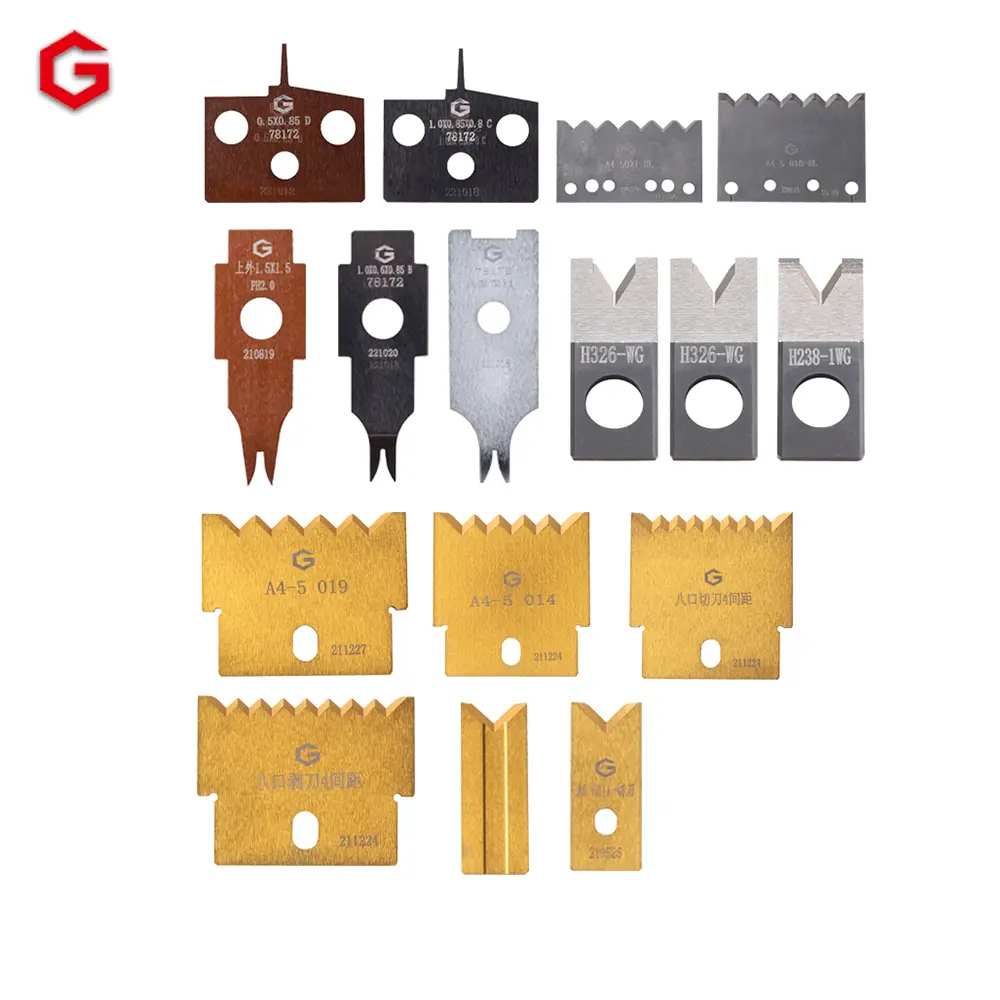

Auxiliary Expansion Device
