Product Introduction
1.This is a fully automatic device that integrates multiple functions. The automatic heating device automatically shrinks the heat-shrink tubing into its final shape.
2.It has a wide application range and is suitable for different types of wires, heat-shrink tubing, and numbered tubing. Optional functions such as laser marking or inkjet printing are available.
3.It uses an industrial control computer, allowing the setting of multiple values. The operation data can be retained and traced. There is a fault alarm system that displays problems in real time, and defective products are automatically sorted.
4.With a modular design, each functional module can be freely enabled or disabled in the program, enabling quick replacement, upgrading, and maintenance. For different wire harnesses, simply replacing the components can ensure efficient operation.
5.It features a compact structure and an elegant appearance, taking up less space.
Product Function

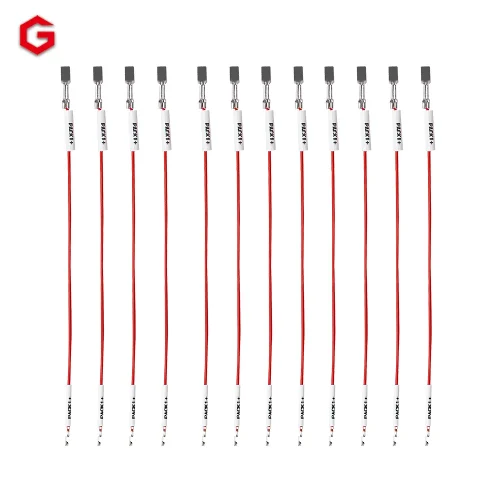

| Equipment Name and Model： | GL – 06 Fully Automatic Double – End Crimping and Number Tubing Machine |
| Main Functions： | Cutting, stripping, tubing insertion, terminal crimping, and tube shrinking at both ends A and B. |
| Control Method： | Human – machine interface + computer industrial control |

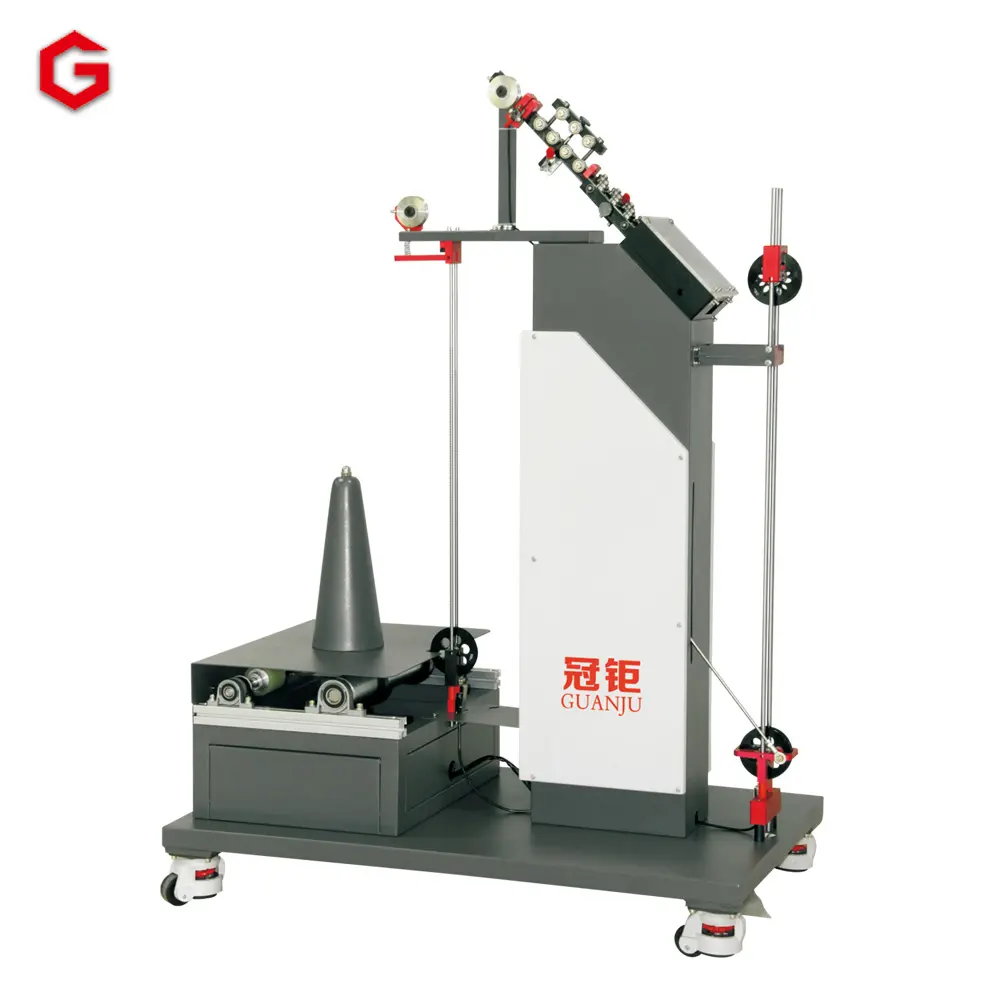

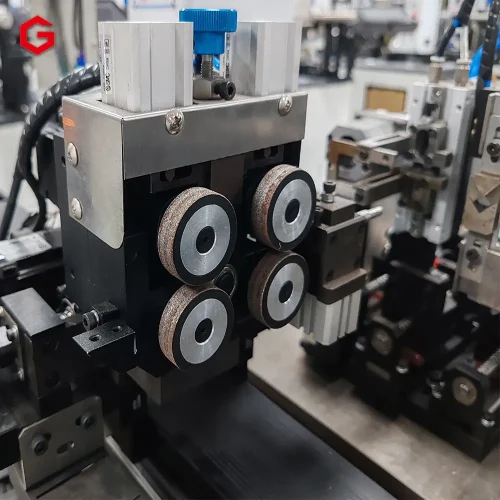

| Wire Feeding System： | Computer – controlled fully automatic pre – feeding device, suitable for coil – wound wires and spool – mounted wires. |
| Detection Devices： | Detection of the presence or absence of double – end terminals, detection of the presence or absence of double – end heat – shrink tubes, detection of wire knots, air pressure detection, and alarm for wire shortage. |
| Terminal Pressure Detection System： | Optional installation (by Guanju) |
| Defective Product Handling： | Sorting (a cutting device can be additionally installed at the head) |

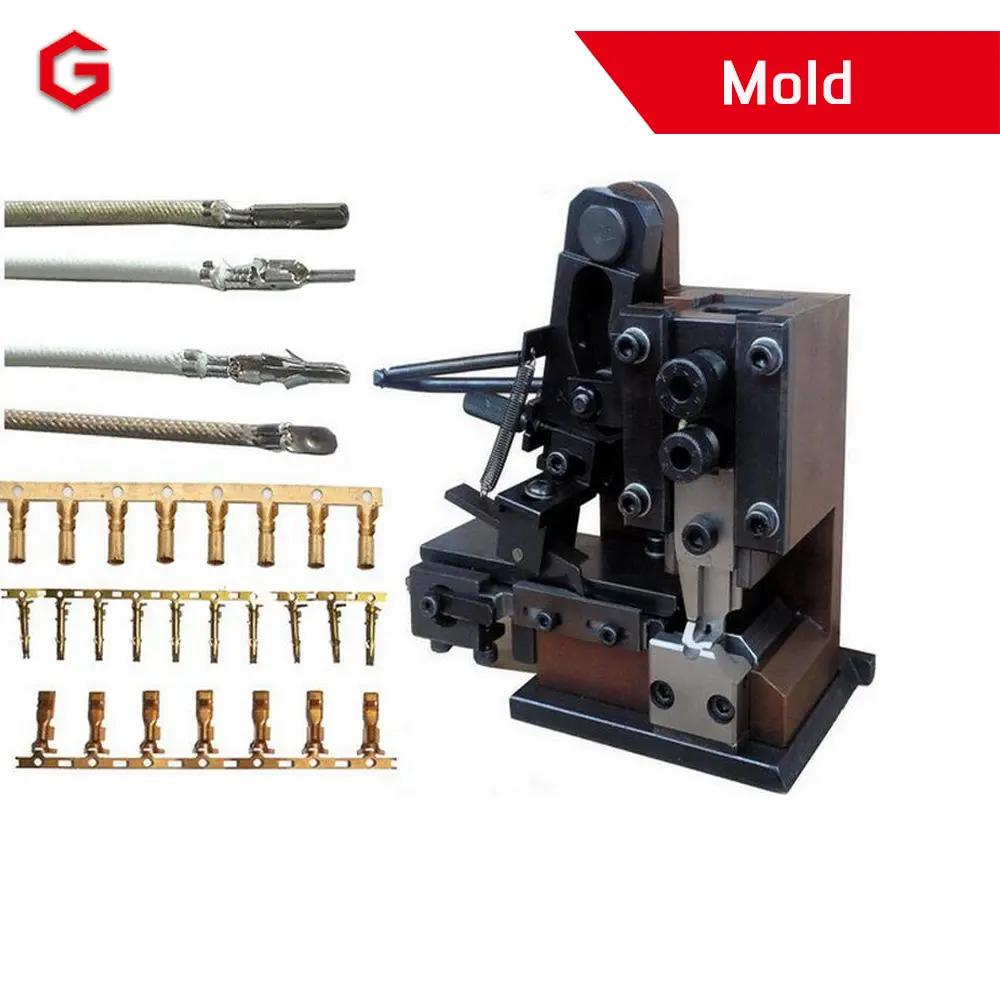

| Compatible Molds： | OTP standard horizontal molds, vertical molds, and flag – shaped molds. European and Korean molds can be customized. |
| Terminal Crimping Capacity： | 2T/3T ultra – quiet variable – frequency terminal machines |
Product parameter

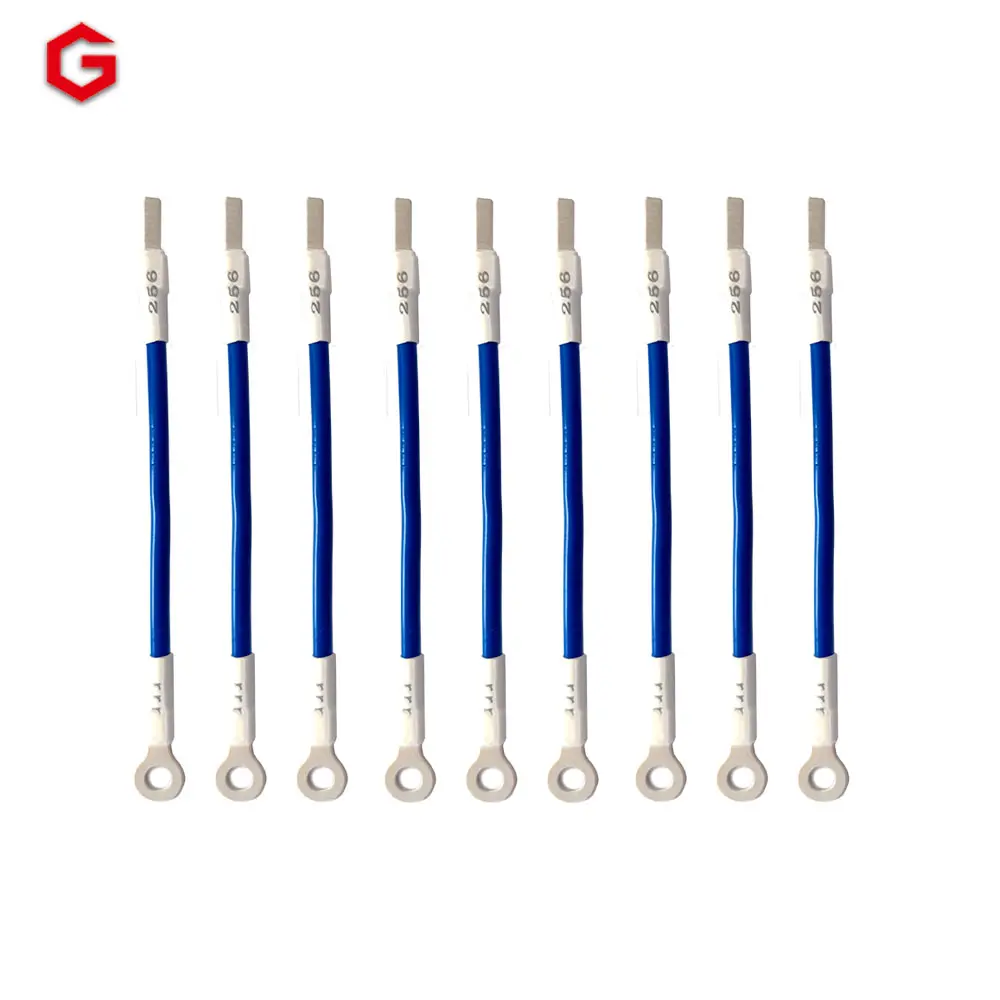

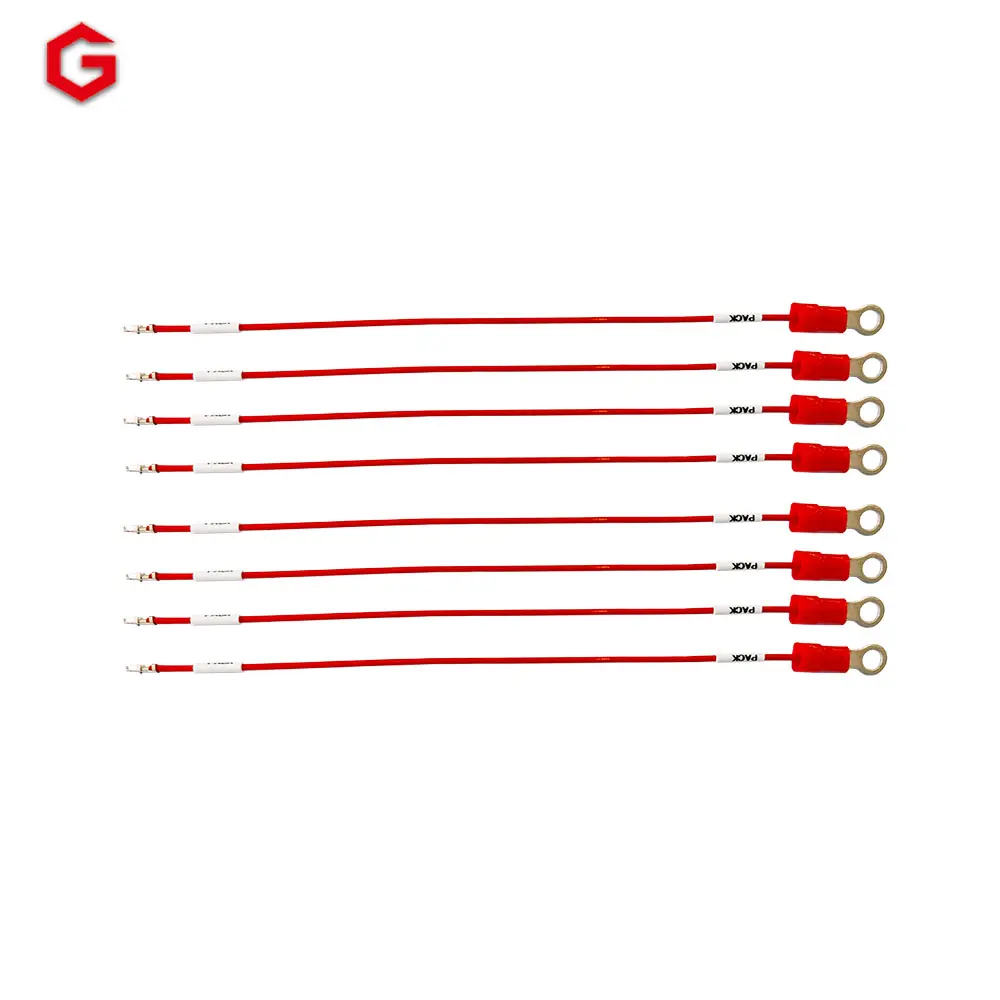

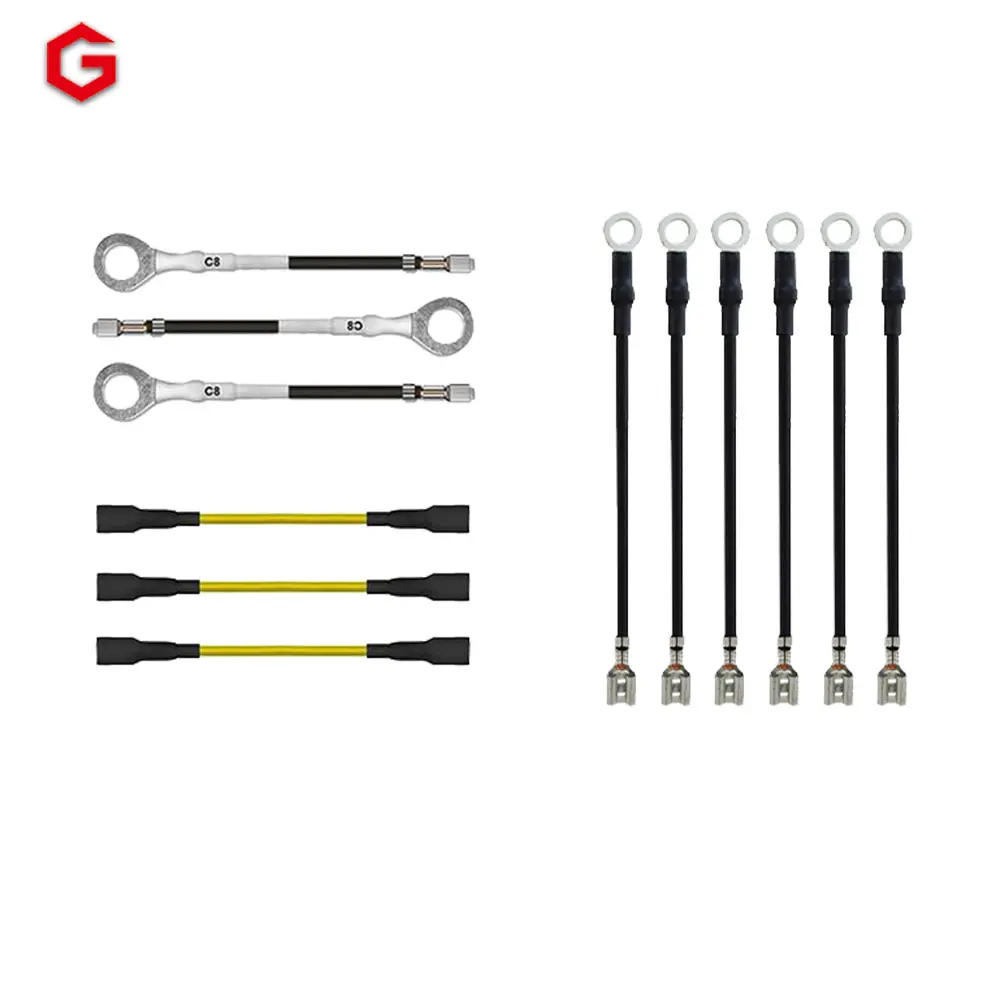

| Power Supply: | 50/60HZ, 220V single-phase |
| Processing Length： | Double – end crimping and heat – shrink tubing insertion: 80 – 99999 mm. Heat – shrink tubing length: 8 – 20 mm. Outer diameter of heat – shrink tubing: 2.5 – 6 mm. |
| Wire Processing Range： | AWG #22 – AWG #16, suitable for various wire specifications (AWG #10 – AWG #16 available upon customization). |
| Terminal Processing Range： | Conventional 1.5 – 3.96 mm (including ground ring terminals, Y – type terminals, and base board terminals). |
| Production Capacity： | When the length is less than 300 mm, 900 – 1400 pieces per hour. |
| When the length is between 300 – 600 mm, 800 – 1000 pieces per hour. | |
| Stripping Length： | End A: 0 – 8 mm. End B: 0 – 8 mm. |
| Cutting Precision: | ±(0.2%*L+1)mm |
| Air Pressure: | 0.5 – 0.7Mpa (5 – 7KG/m³) |
| External Dimensions: | 1210*770*1370mm. Dimensions of the supporting wire pay-off rack: 920*560*1300mm |
| Weight: | Approximately 400KG±15KG. The weight of the supporting wire pay-off rack is approximately 80KG |
