Product Introduction
1.This fully automatic automotive wiring harness equipment adopts PLC bus & upper computer control, fiber optic communication, and a full – servo power system, ensuring stable performance.
2.It features touch – screen operation. Processing parameters and production details can be quickly edited, enabling rapid production scheduling.

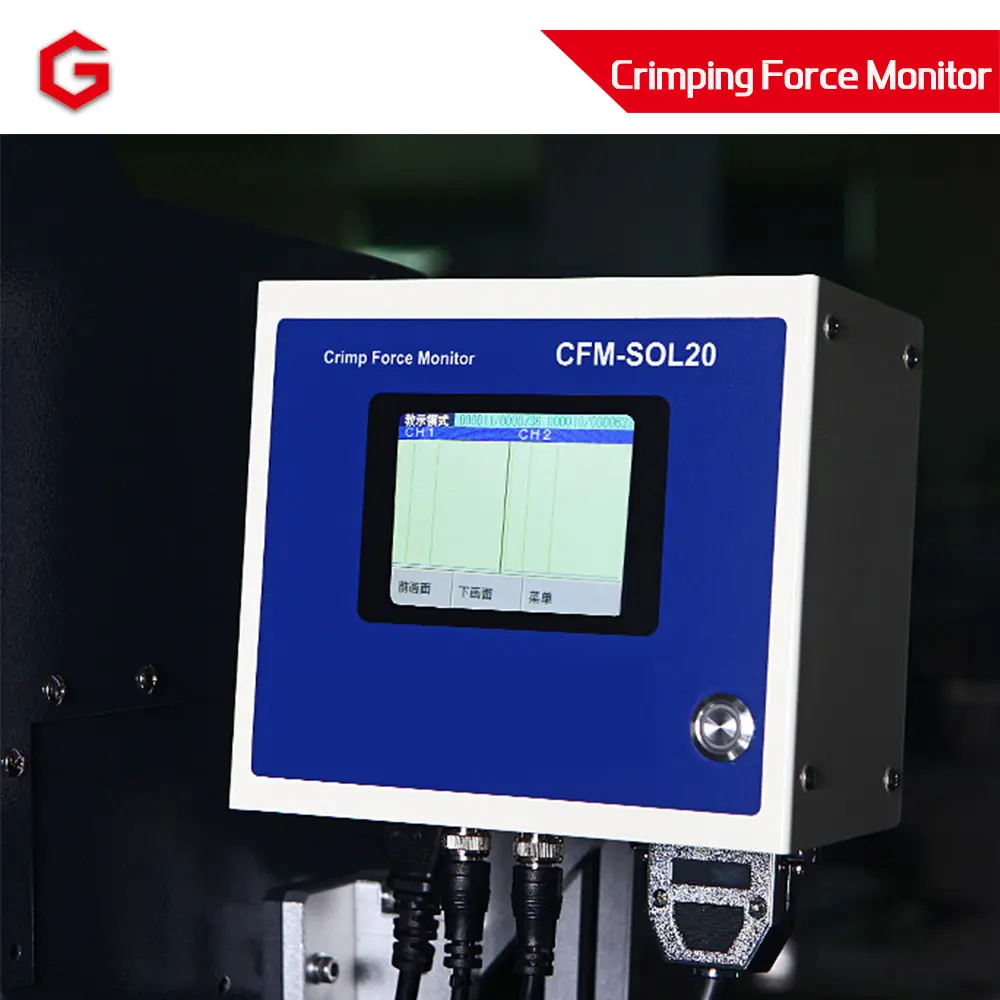

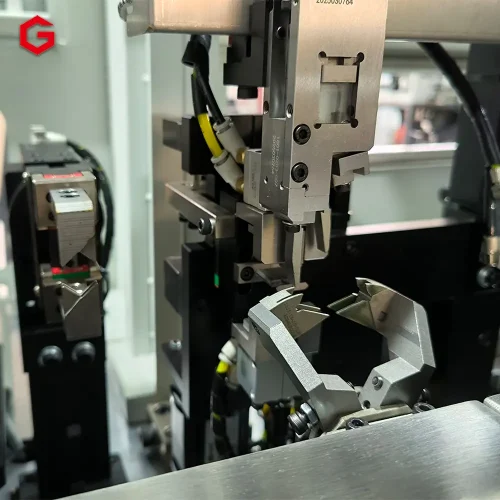

3.The crimping process uses a servo terminal machine equipped with a pressure management system, which allows for real – time monitoring of the crimping process.

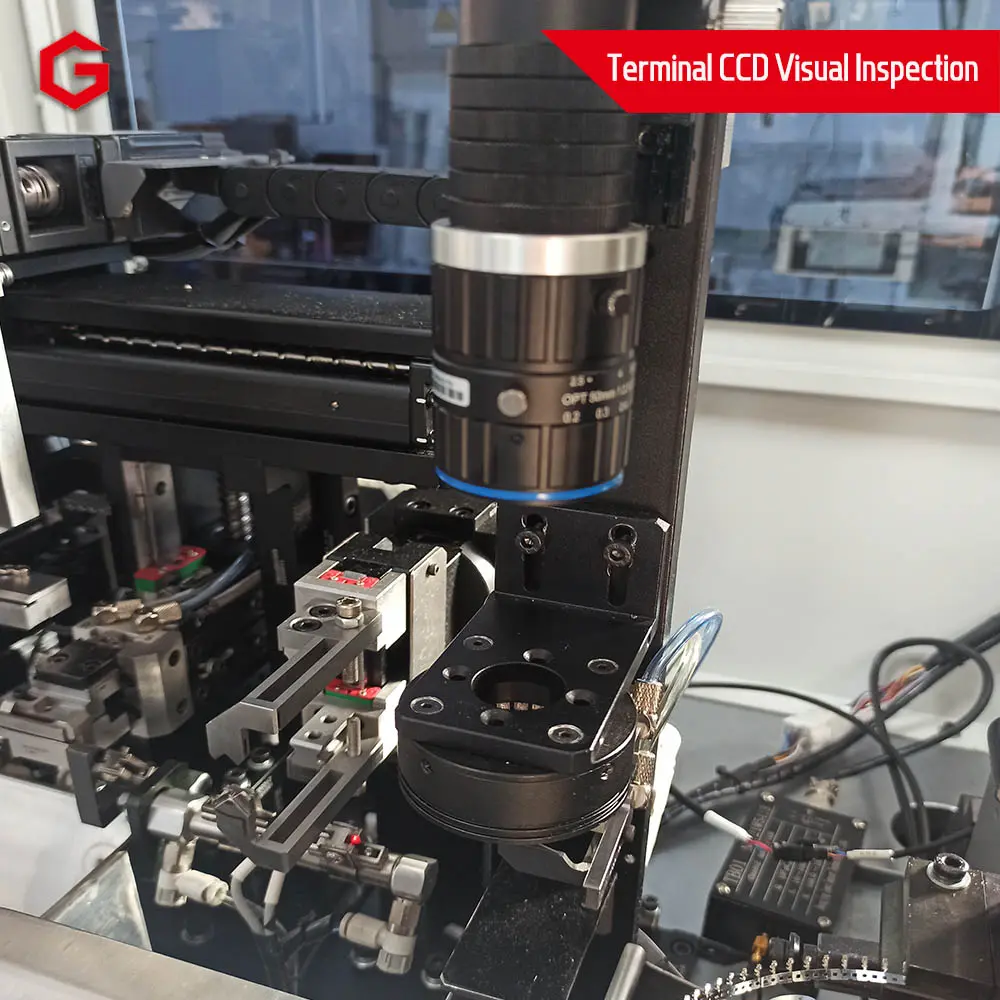

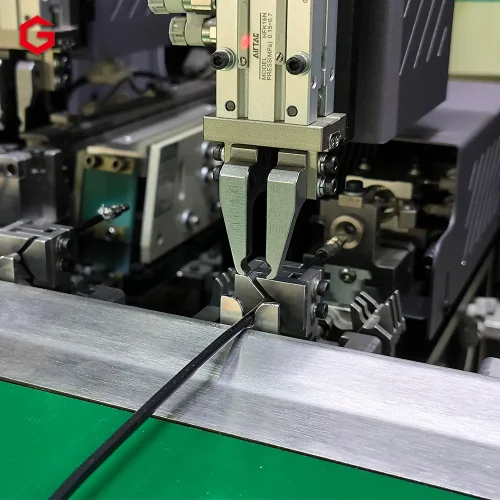

4.A high – precision coaxial ring stripping machine is used, and it is equipped with a vision inspection system to control processes such as wire stripping and crimping.

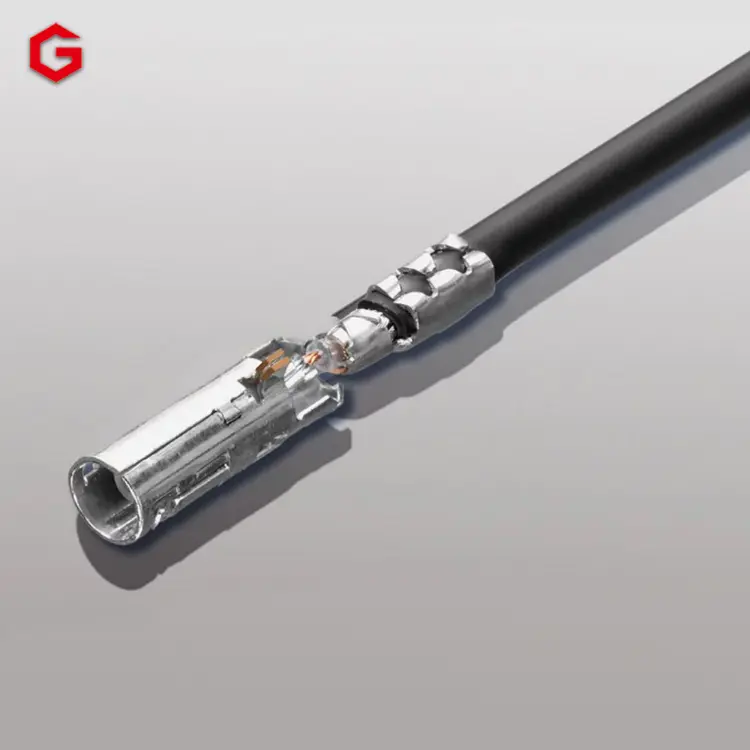

5.Fully automatic Fakra automotive wiring harness machine is equipped with a plasma air gun to clean the center terminals and outer conductors, thereby improving product quality.
6.It adopts a modular, intelligent, and standardized model to ensure the long – term efficient and stable operation of the equipment.
7.With platform – based management, it can achieve fully automatic and unmanned production of various wiring harnesses, including the full range of Fakra and Ethernet wiring harnesses, through module switching.
Product Function

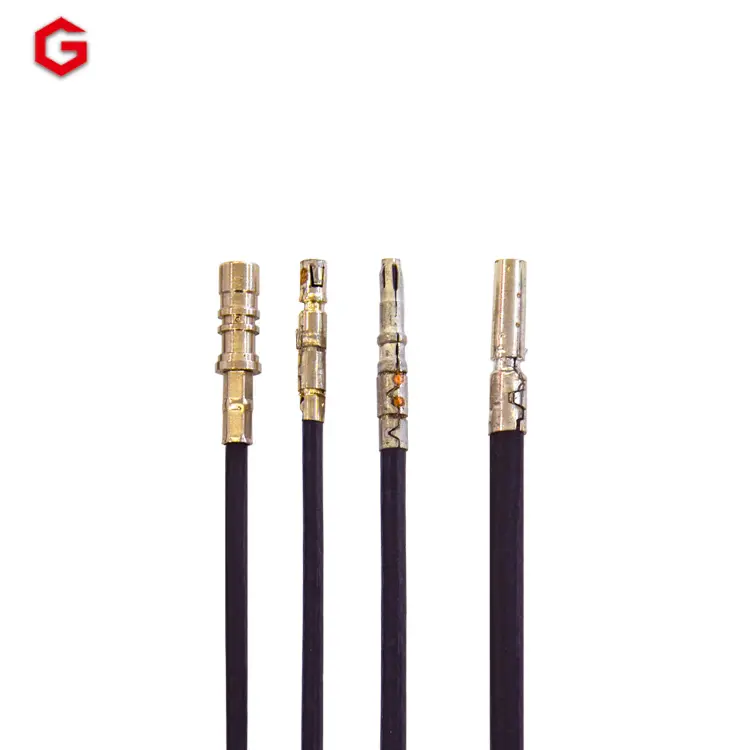

| Equipment Name and Model: | GL – FK2101 Fully Automatic Fakra Automotive Wiring Harness Machine |
| Main Functions: | Wire cutting, wire stripping, copper tube threading, center pin riveting, outer conductor threading, outer conductor riveting, and product inspection. |
| Control Method: | Controlled by an industrial computer with Windows 7 operating system. |
| Wire Pay – off System: | Fully automatic wire feeding device, suitable for spool – wound wires and coil – wound wires (with a diameter of 450 – 1000mm). |
| Detection Devices: | Wire pay – off detection, pressure detection, braiding detection, core wire detection, center pin detection, outer conductor detection, depth detection, and concentricity detection. |
| Terminal Pressure Detection System: | Guanju |
| Defective Product Handling: | Defective Product Handling: Automatic identification and classified placement. |

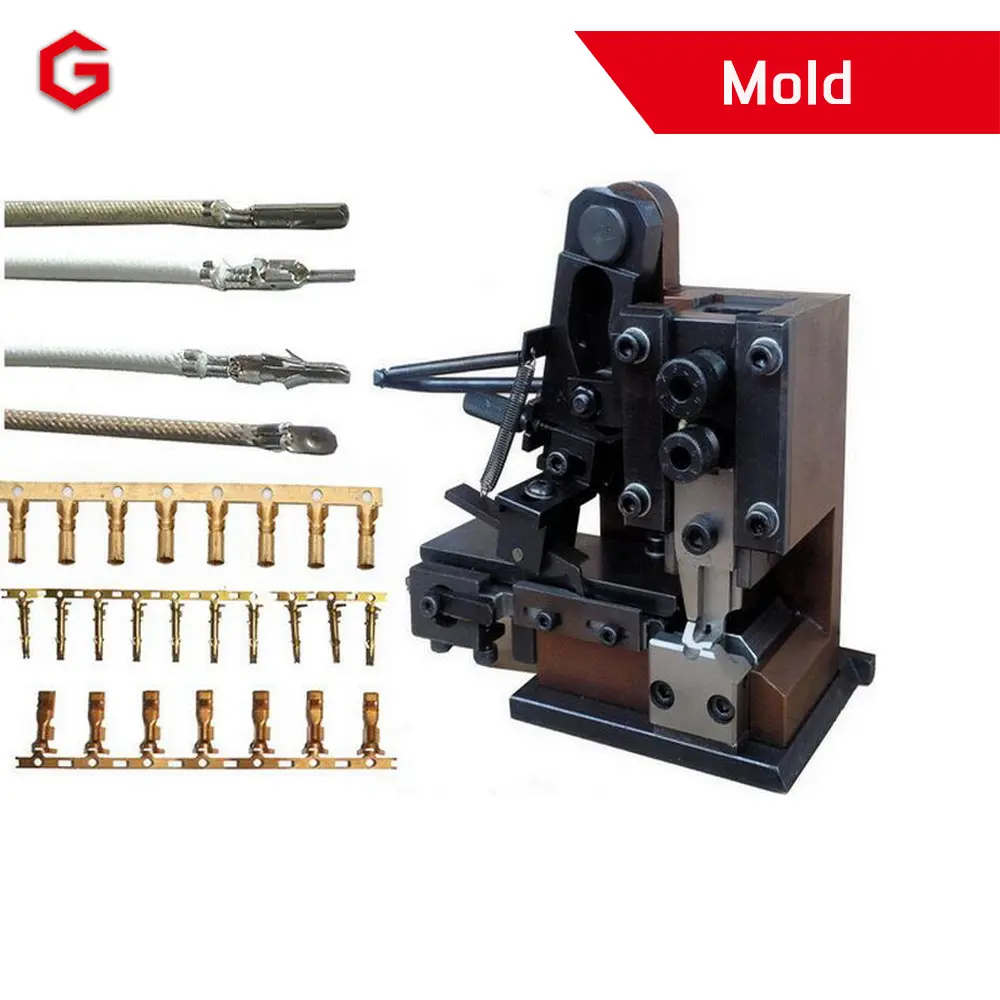

| Compatible Molds: | OTP, European pneumatic molds, etc. |
| Terminal Crimping Capacity: | 30KN |
Product parameter
| Power Supply | 50/60HZ 220V Single – phase |
| Processing Length | 100 – 15000MM (Customizable) |
| Range of Wire Processing Materials | 2.8 – 3.3MM |
| Production Capacity | 5 – 6 Seconds per Piece |
| Cutting Accuracy | ± (0.2%*L + 1) mm |
| Air Pressure | 0.5 – 0.7Mpa (5 – 7KG/m³) |
| Overall Dimensions | 6000*1400*2100mm (Excluding the Floor Space of the Pay – off Reel) |
| Weight | Approximately 3500KG |
